Air Bag
Air Bag
Driver Airbag Squib 1:
Driver Airbag Squib 2:

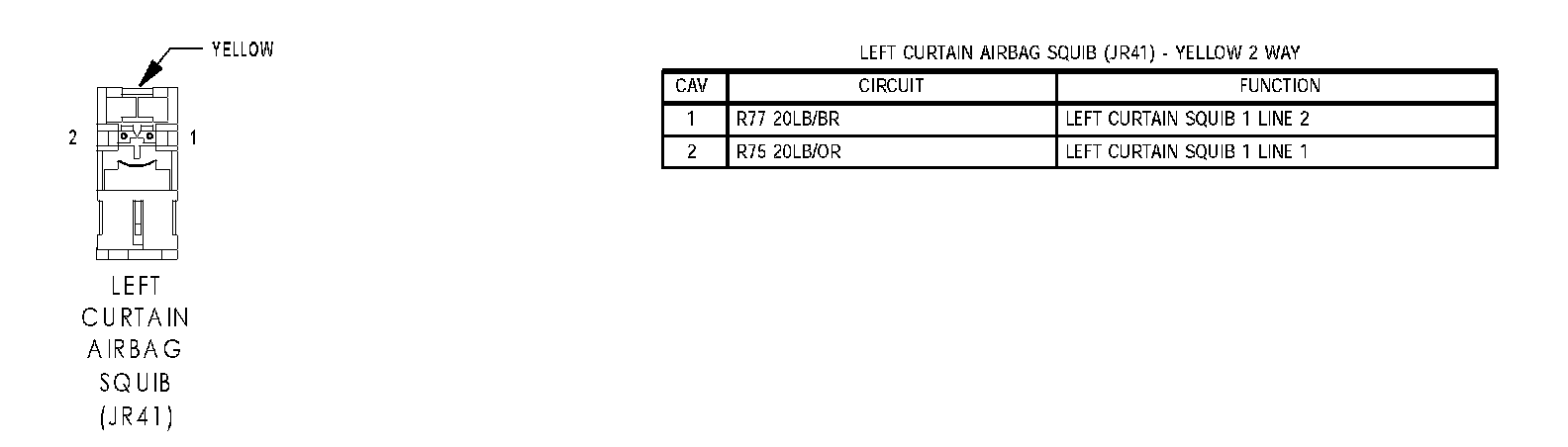

Left Curtain Airbag Squib (JR41):
Passenger Airbag:
Right Curtain Airbag Squib (JR41):
