Amplifier, Sound System
Amplifier, Sound System

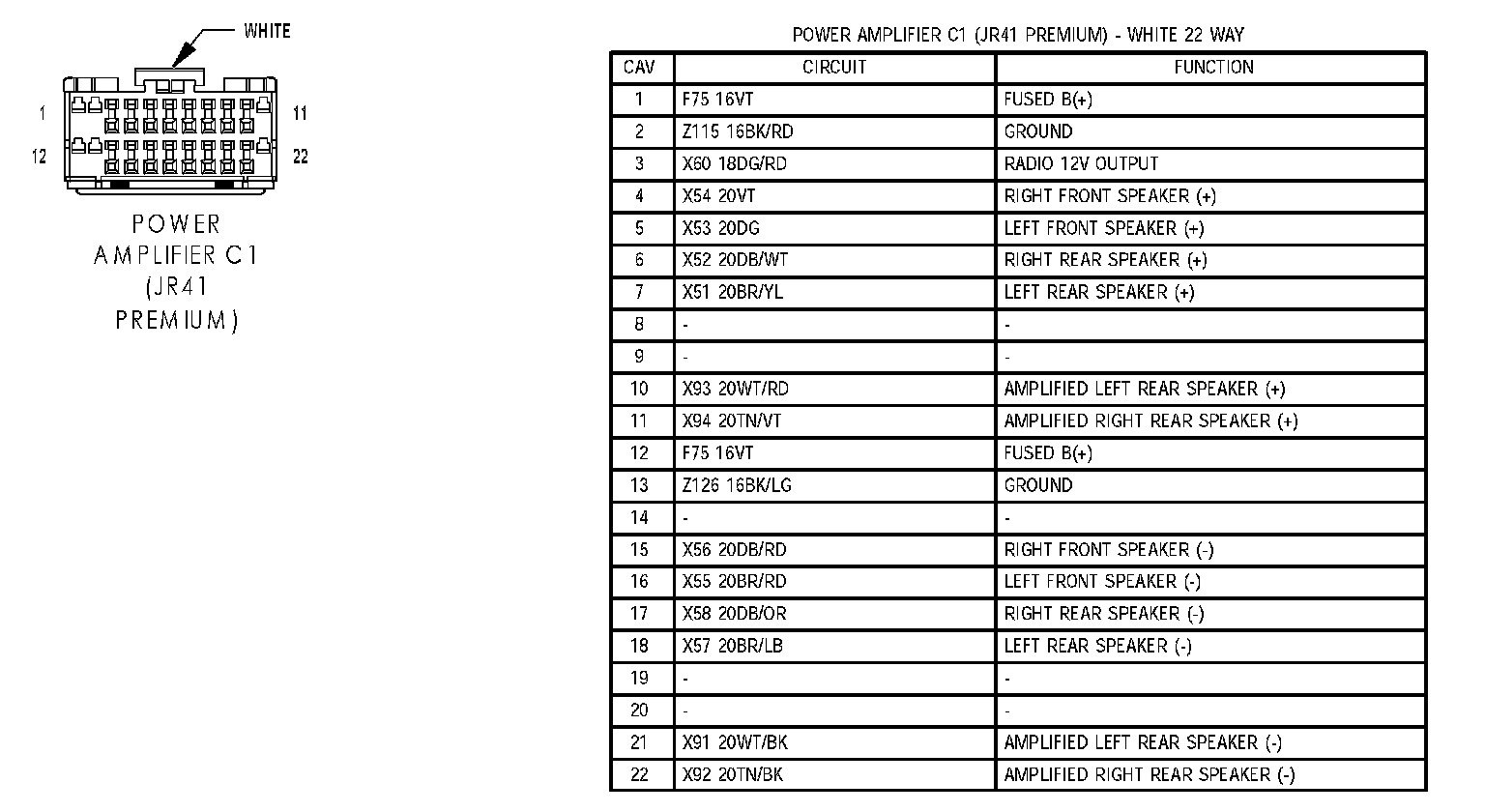

Power Amplifier C1 (JR41 Premium):

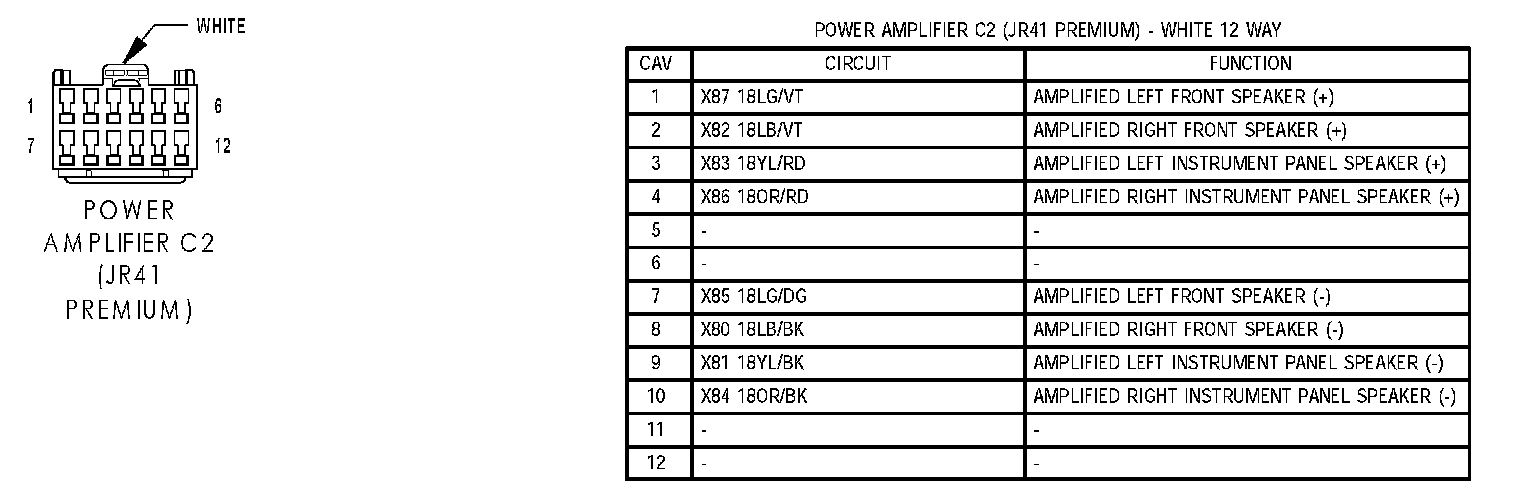

Power Amplifier C2 (JR41 Premium):
