Backup Lamp
Backup Lamp

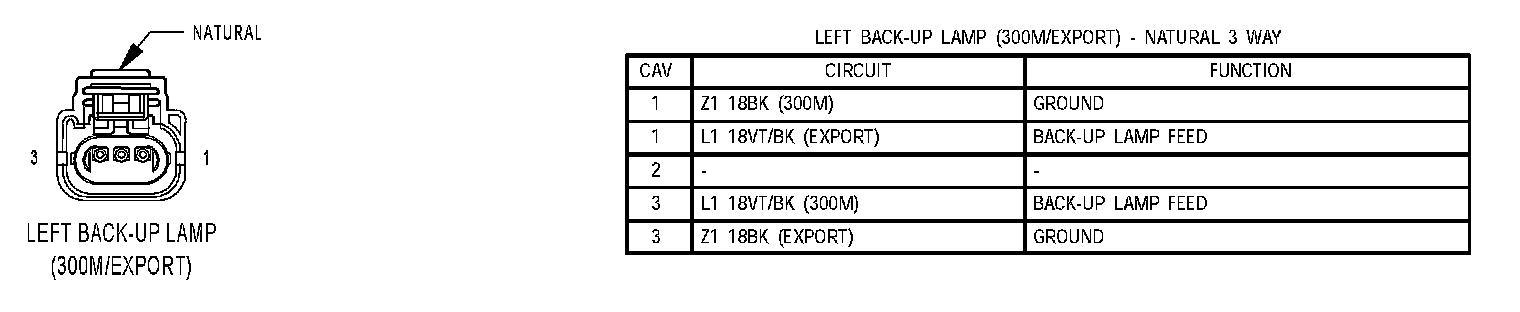

Left Back-Up Lamp (300M/Export):
Left Fog Lamp (Dodge/300M/Export):

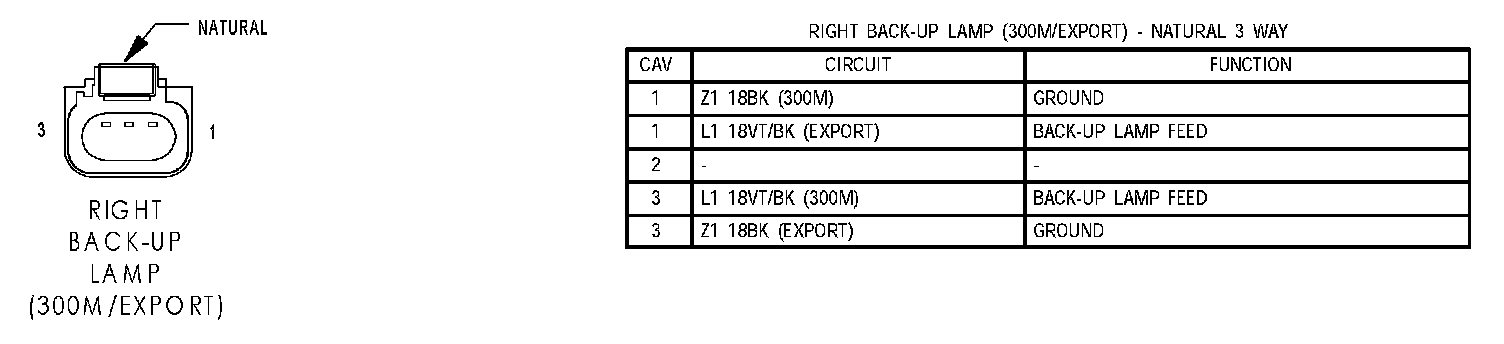

Right Back-Up Lamp (300M/Export):
