Turn Signal Lamp
Turn Signal Lamp

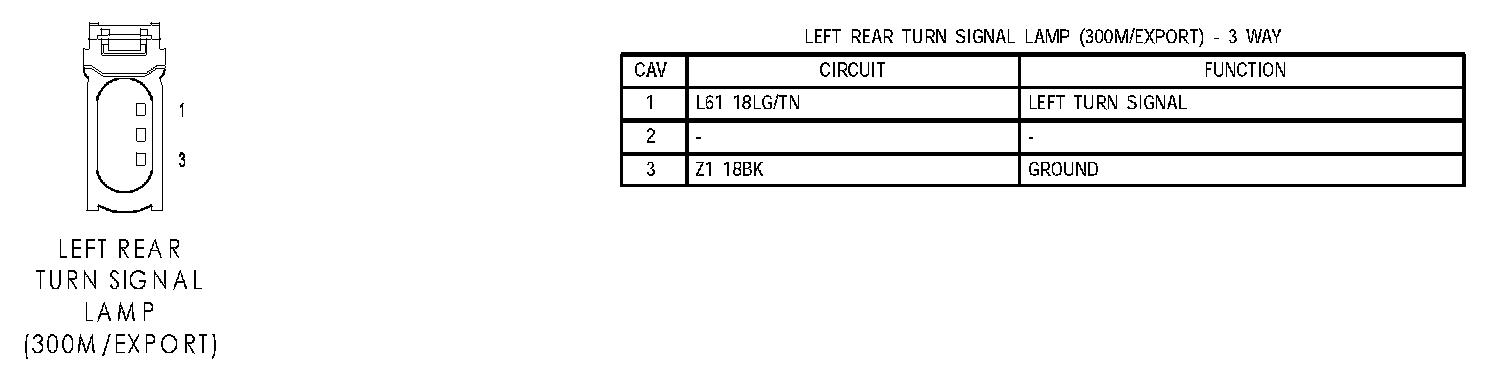

Left Rear Turn Signal Lamp (300M/Export):

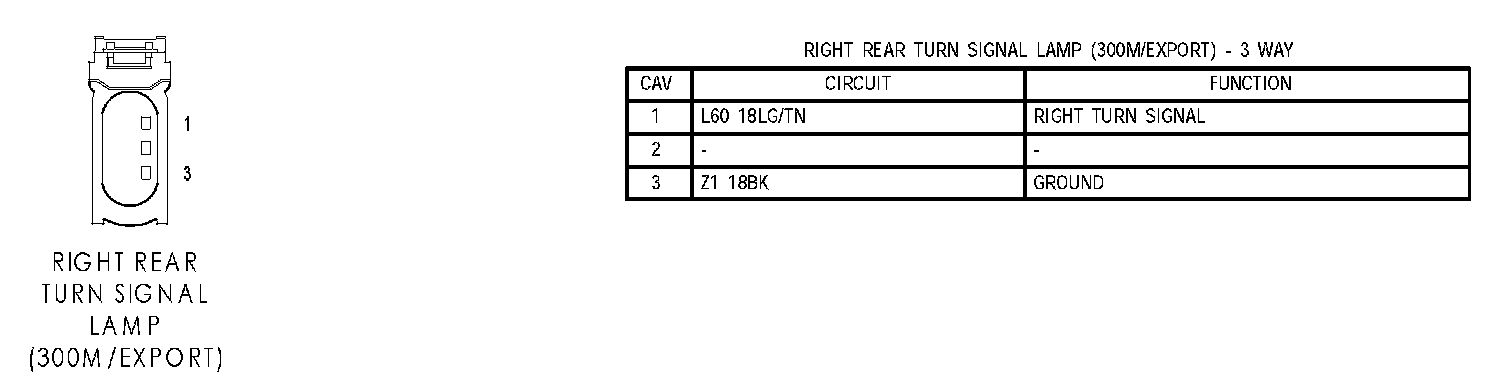

Right Rear Turn Signal Lamp (300M/Except):
