Fog/Driving Lamp

Left Fog Lamp (Concorde/LTD):





Left Rear Fog Lamp (Export):

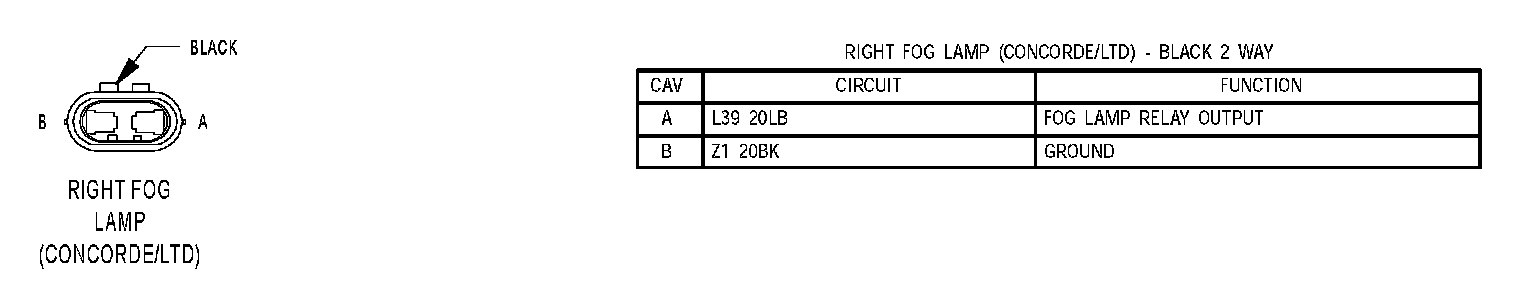

Right Fog Lamp (Concorde/LTD):





Right Rear Fog Lamp (Export):
