System Diagram

Left Front Park/Turn Signal Lamp (Concorde):

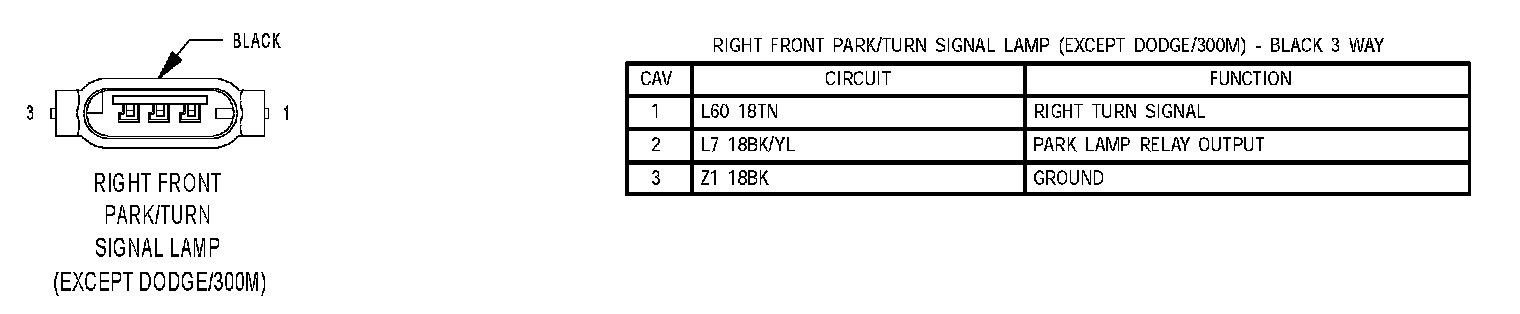

Right Front Park/Turn Signal Lamp (Except Dodge/300M):
