Diagrams
>>
Connector Views
>>
Tail Lamp
Tail Lamp

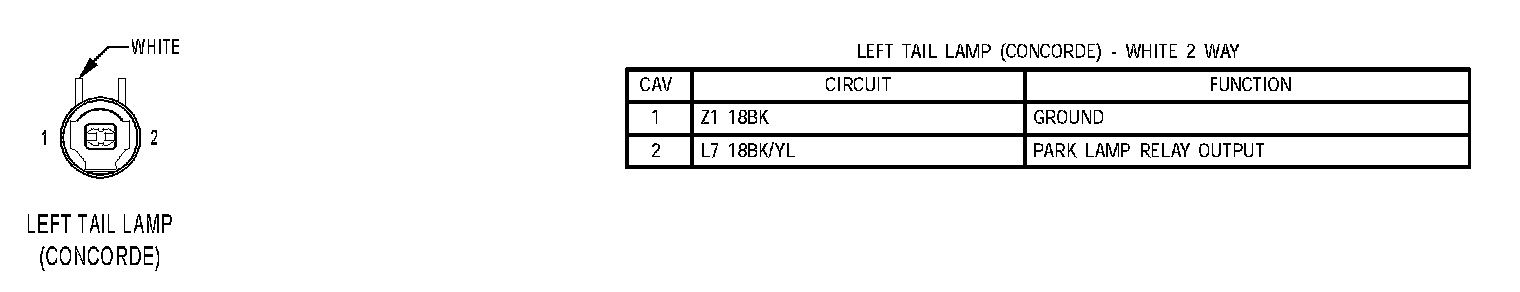

Left Tail Lamp (Concorde):

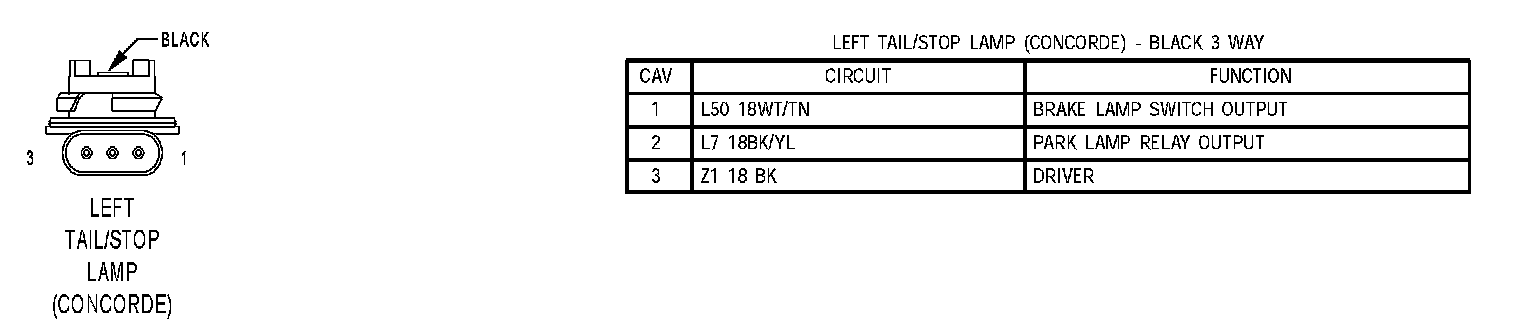

Left Tail/Stop Lamp (Concorde):

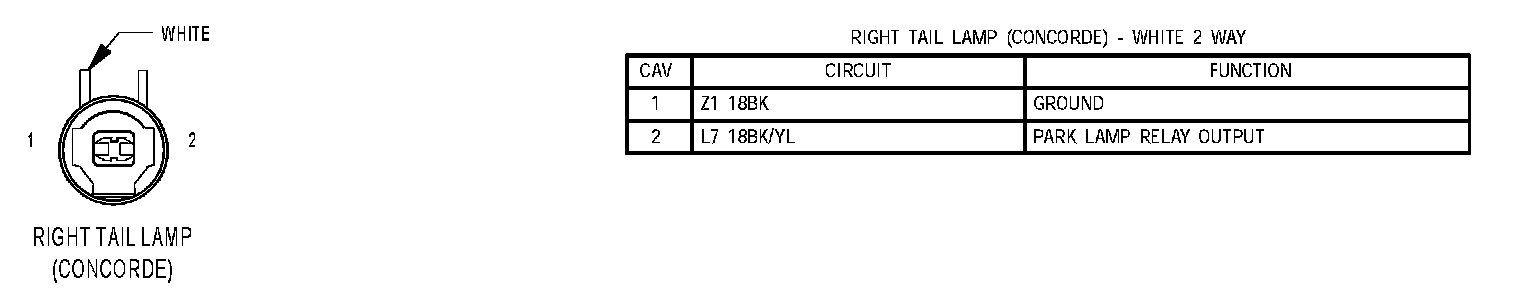

Right Tail Lamp (Concorde):

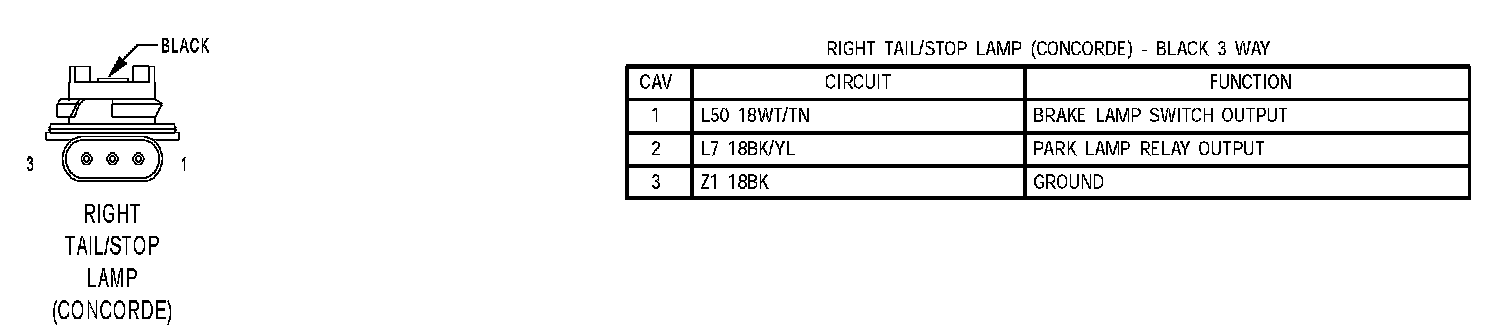

Right Tail/Stop Lamp (Concorde):
