Fog Lamp Replacement
REMOVALCONCORDE
1. Remove fog lamp housing screw in front fascia and pull lamp housing from the front fascia.

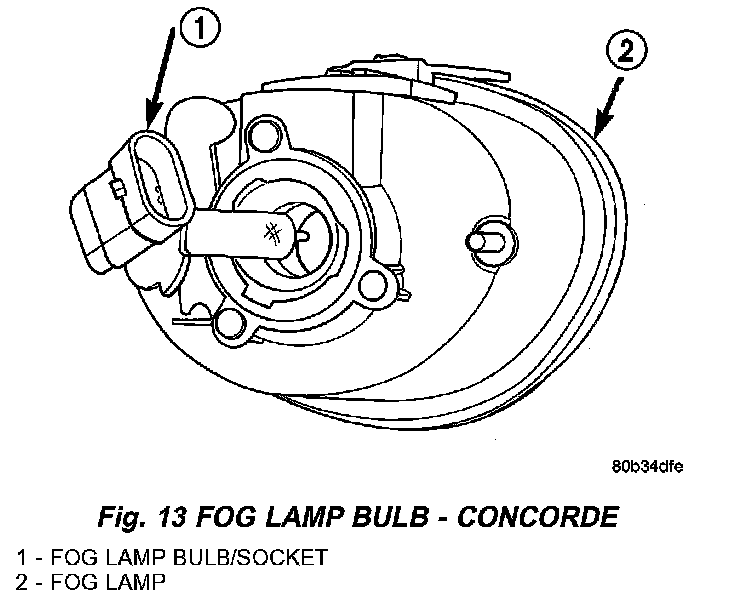

Fig.13 Fog Lamp Bulb - Concorde:
2. Disconnect wire connector from fog lamp socket.
3. Rotate socket and pull bulb/socket from lamp housing.
INSTALLATION
CONCORDE
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
1. Install socket into fog lamp housing and rotate to the lock position.
2. Connect wire connector to the socket.
3. Verify fog lamp operation and alignment.
4. Install fog lamp housing into fascia.
5. Install fog lamp screw to the front fascia
