Center Mounted Brake Lamp
Center Mounted Brake Lamp

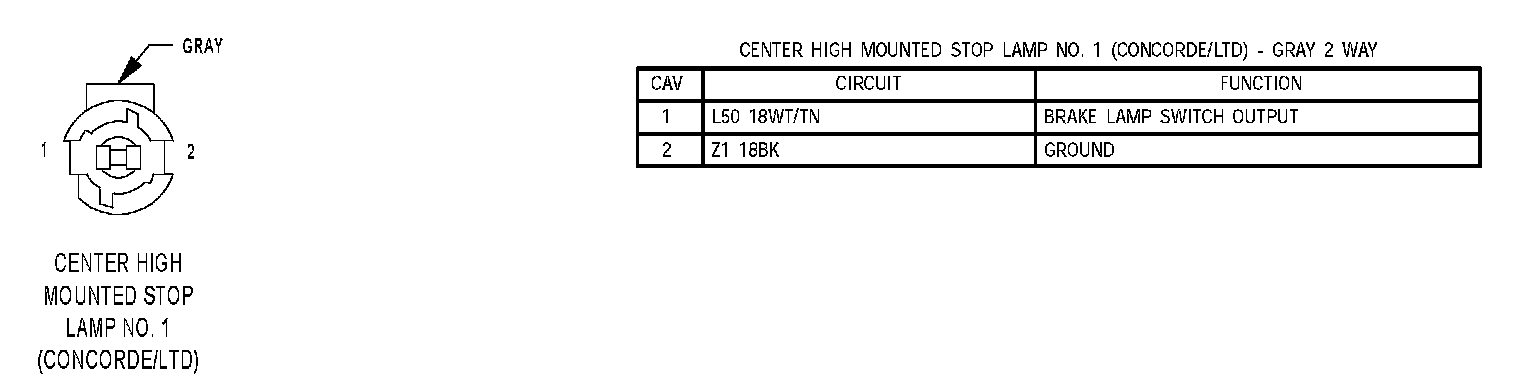

Center High Mounted Stop Lamp No. 1 (Concorde/LTD):

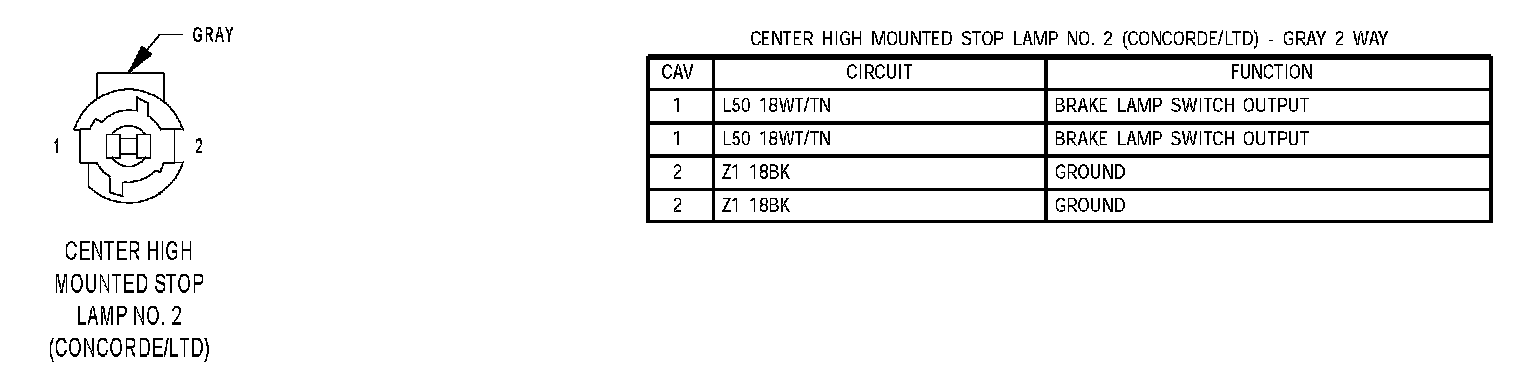

Center High Mounted Stop Lamp No. 2 (Concorde/LTD):
Right Tail/Stop Lamp (Concorde):
