Home >> Chrysler >> 2004 >> Concorde V6-3.5L VIN G >> Repair and Diagnosis >> Power and Ground Distribution >> Micro ISO Relay >> Locations

Micro ISO Relay: Locations

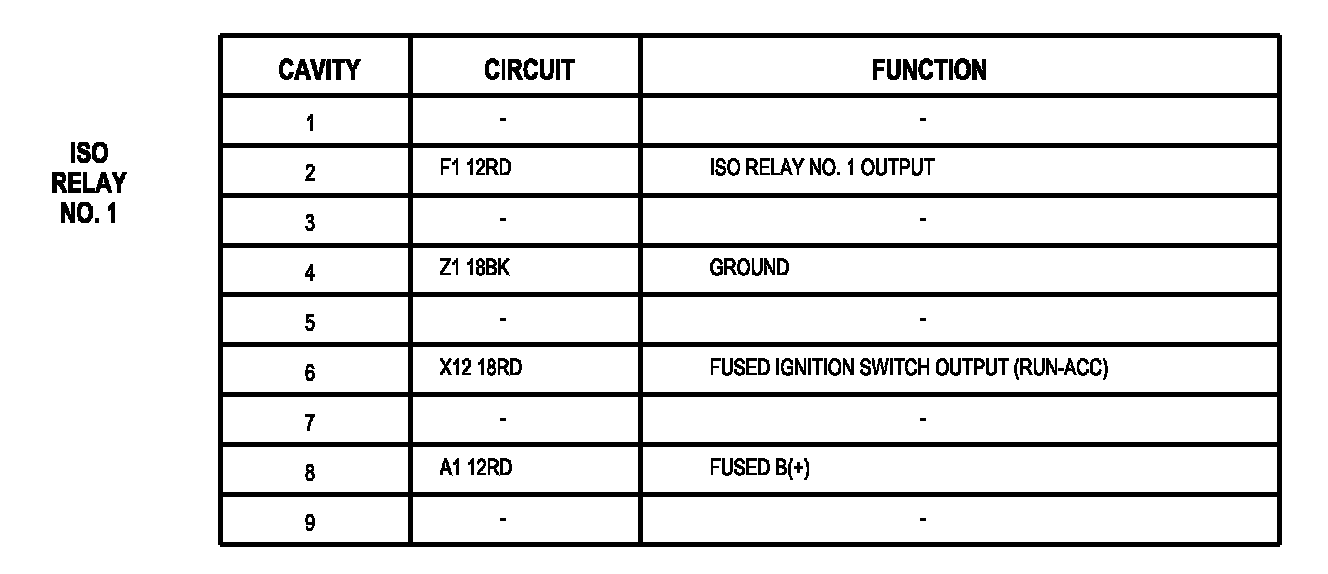

ISO Relay No. 1:

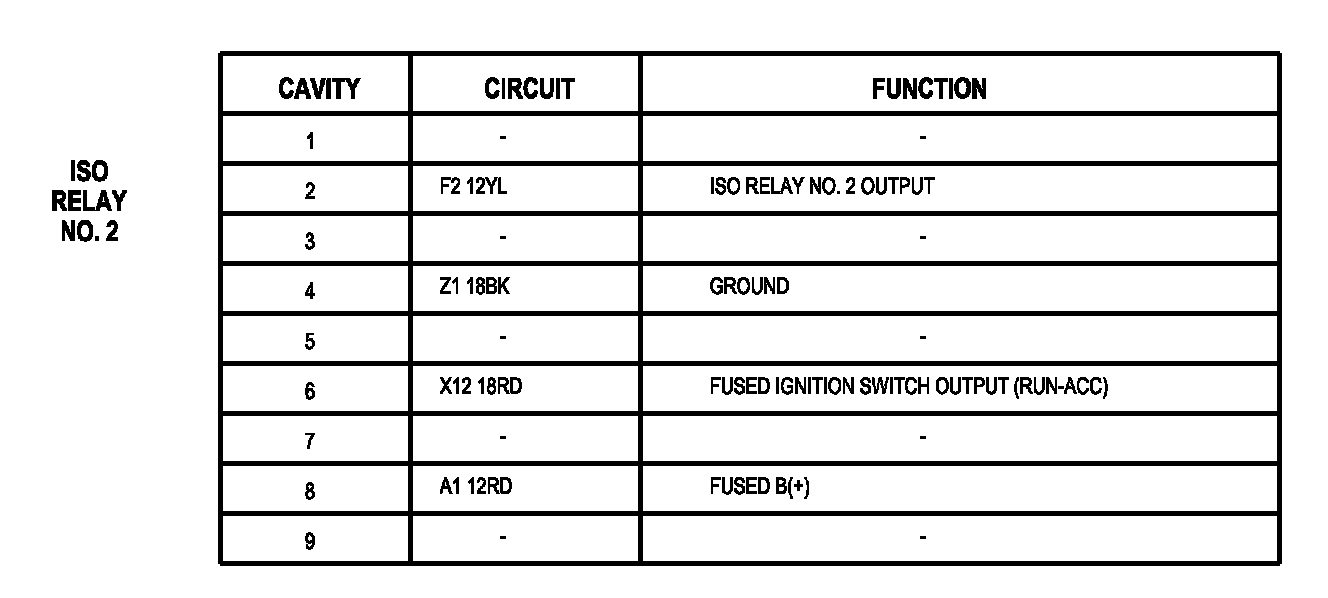

ISO Relay No. 2:
