Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2004
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

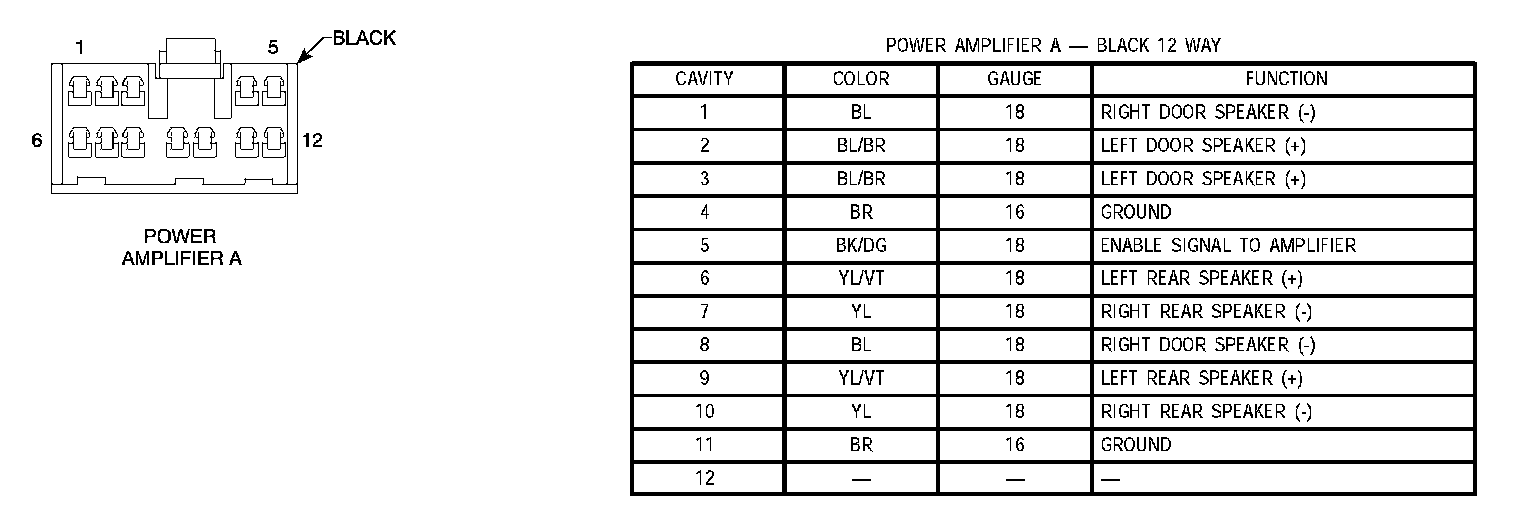

Power Multiplier A:

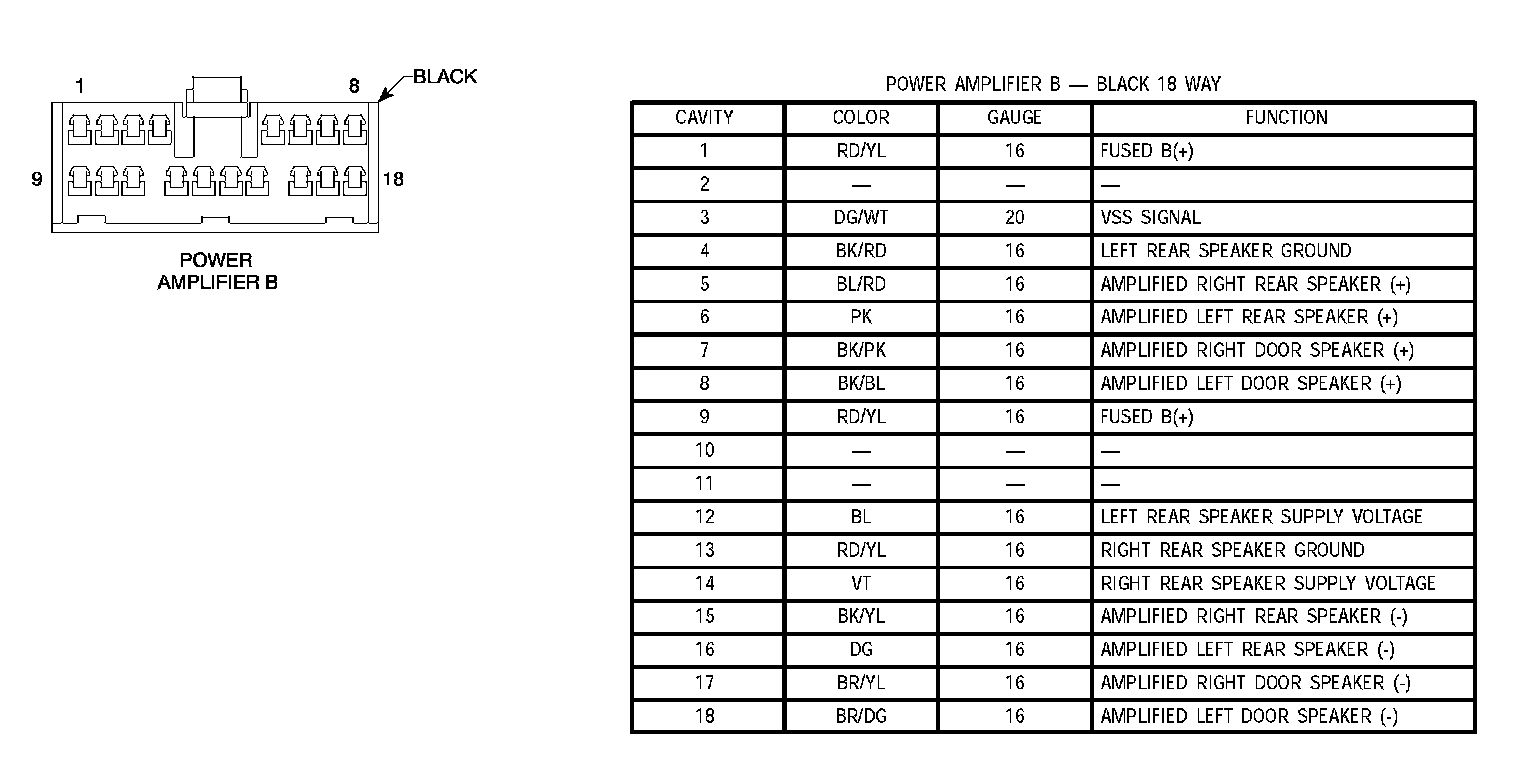

Power Multiplier B:
