Home
>>
Chrysler
>>
2004
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

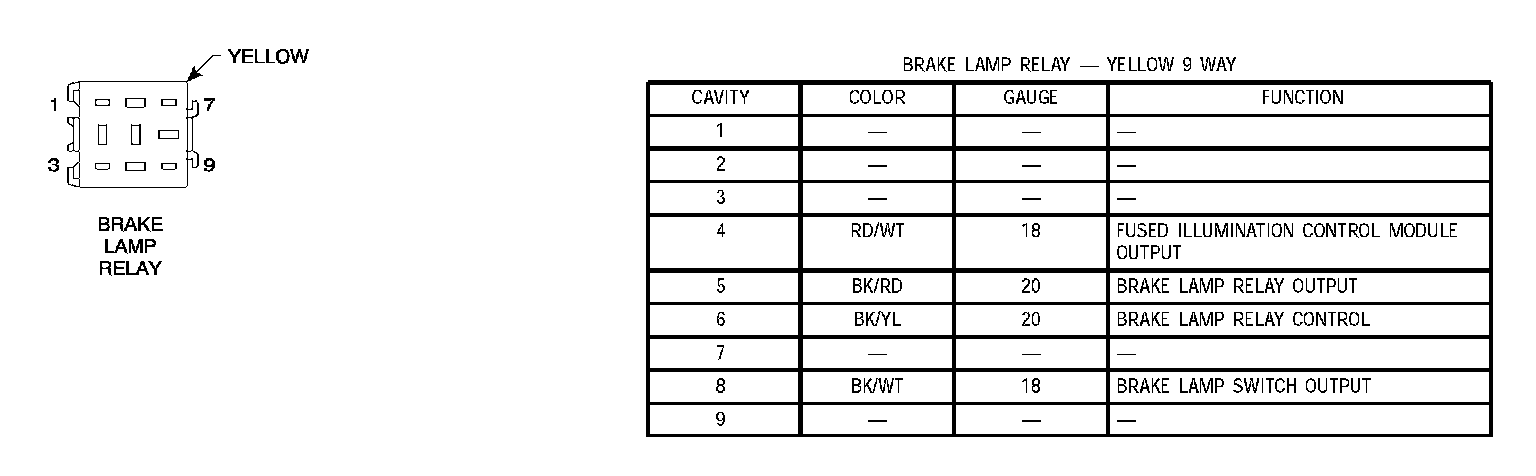

Brake Lamp Relay
Brake Lamp Relay

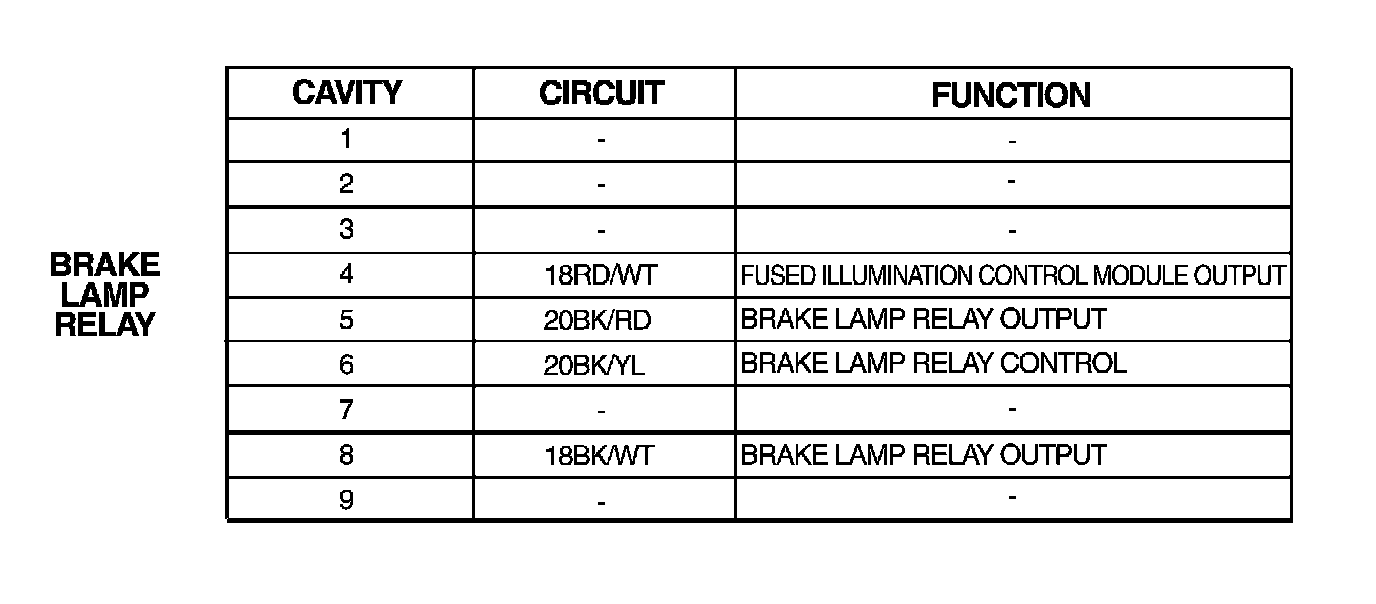

Brake Lamp Relay:
Brake Lamp Relay:
