Brake Light Switch
Brake Light Switch
Brake Lamp Relay:

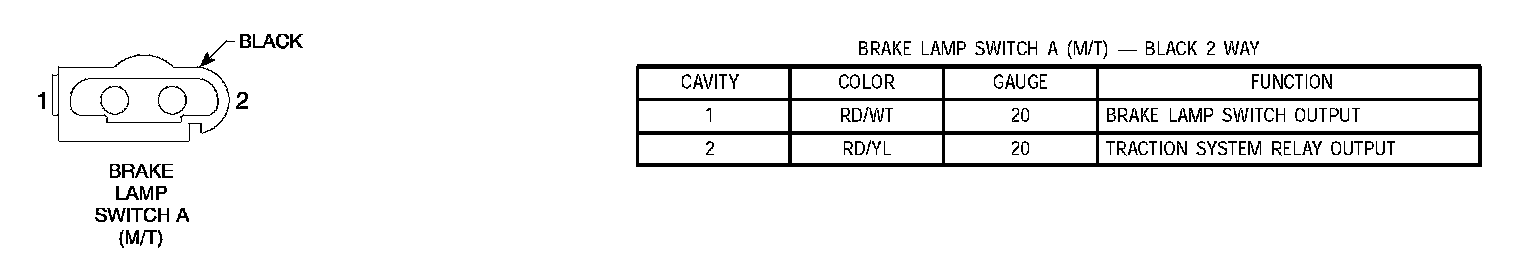

Brake Lamp Switch A (M/T):

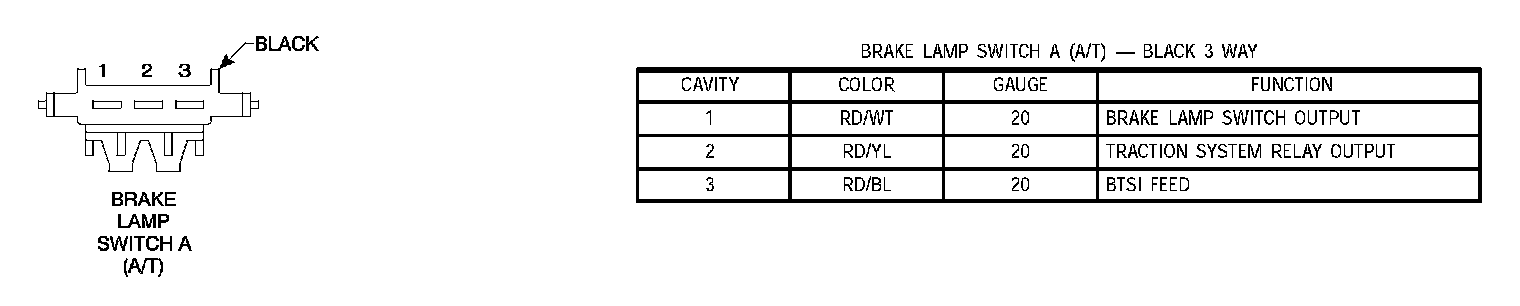

Brake Lamp Switch B (A/T):

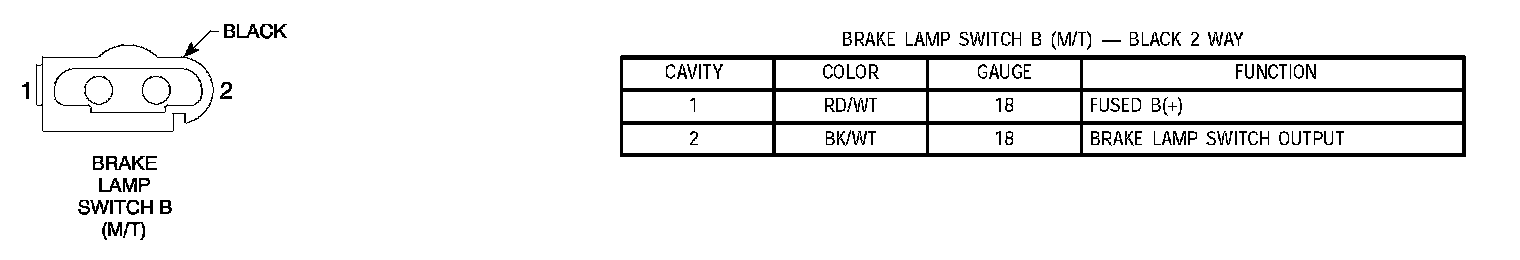

Brake Lamp Switch B (M/T):
