Brake Pad Wear Sensor
Brake Pad Wear Sensor

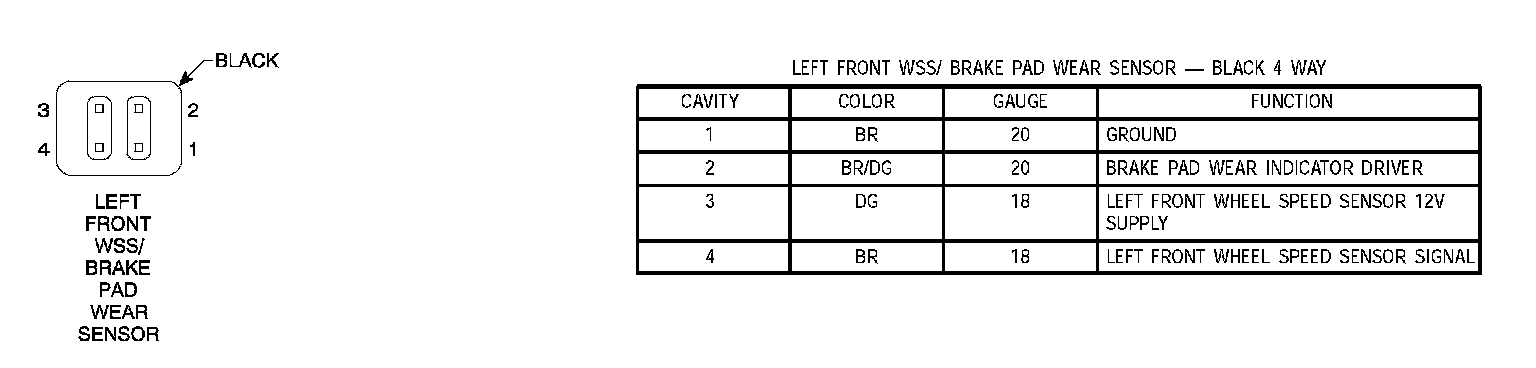

Left Front Web/:

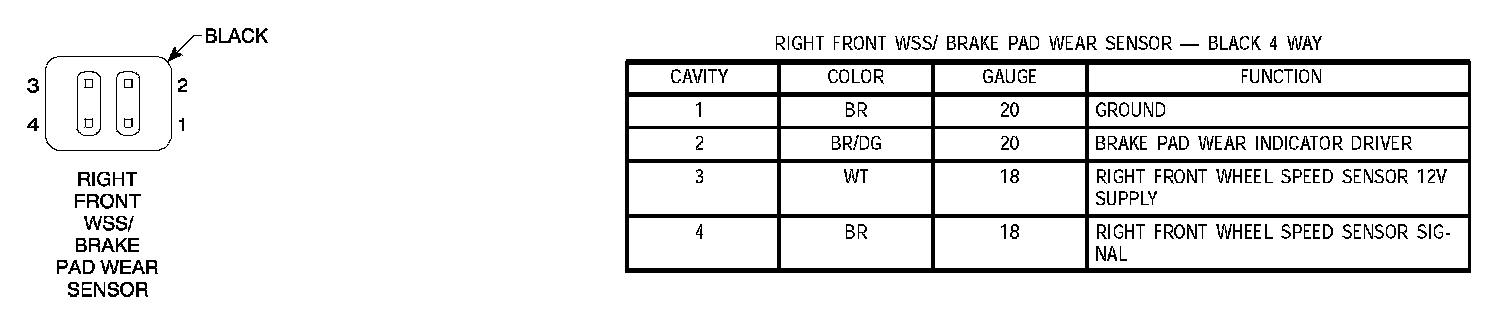

Right Front WSS/ Brake Pad Wear Sensor:
