Connector Views
>>
Brake Pressure Switch
Brake Pressure Switch

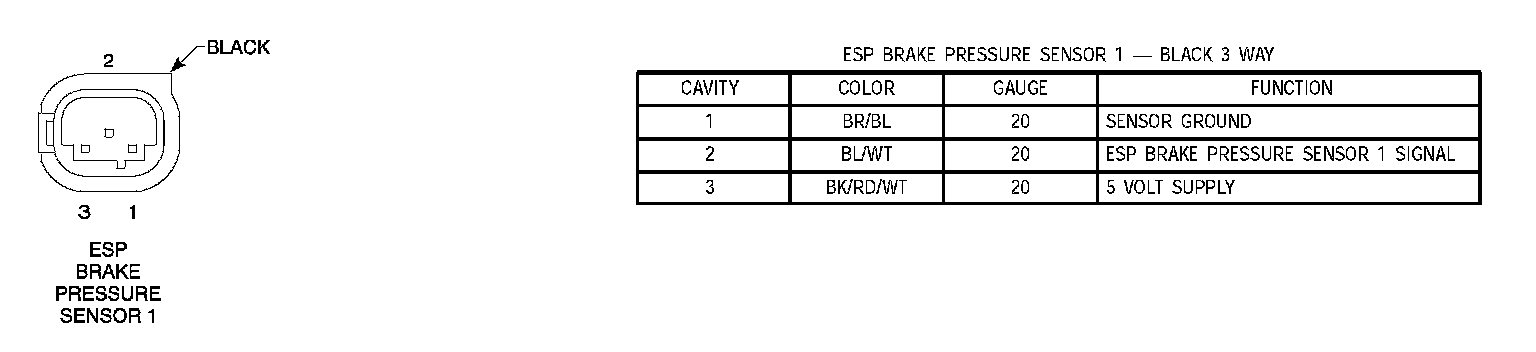

ESP Brake Pressure Sensor 1:

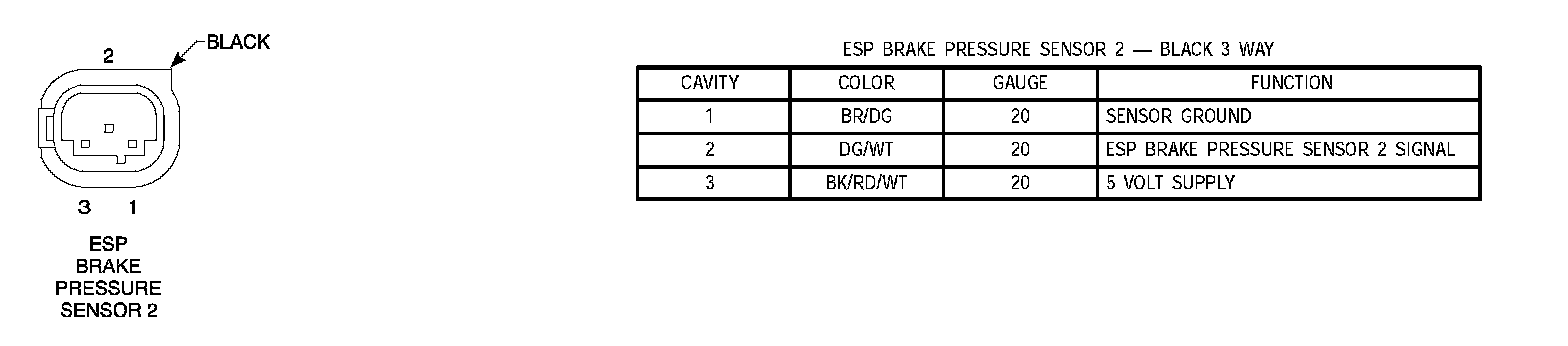

ESP Brake Pressure Sensor 2:
