Fuel Injector
Fuel Injector

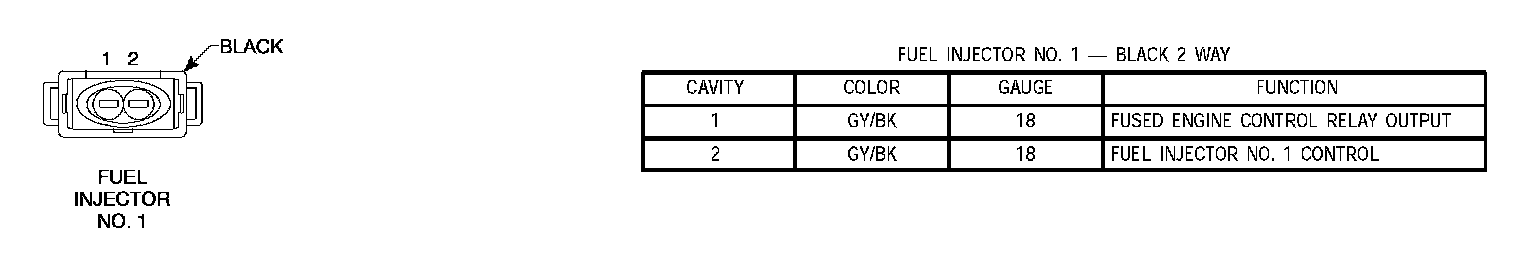

Fuel Injector No. 1:
Fuel Injector No. 2:

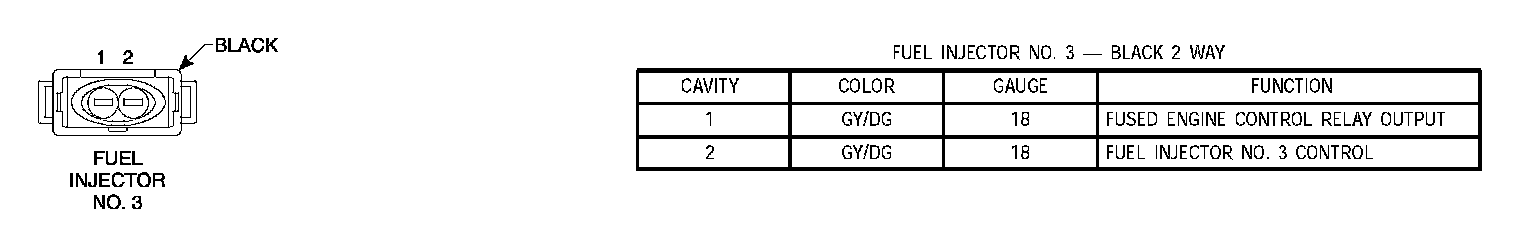

Fuel Injector No. 3:

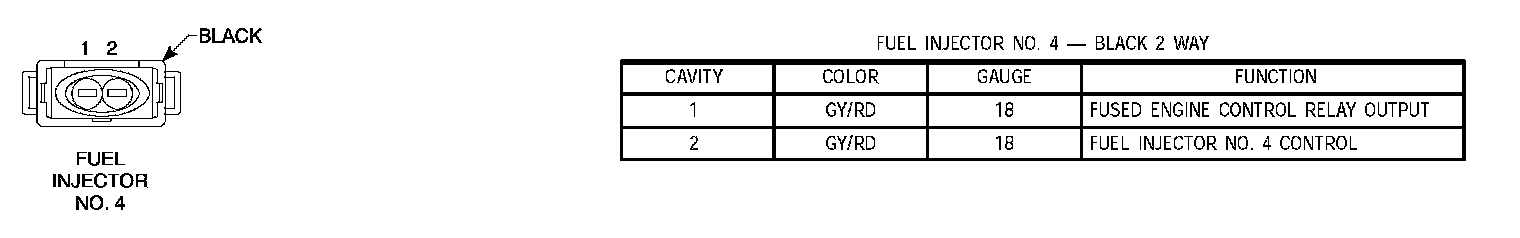

Fuel Injector No. 4:

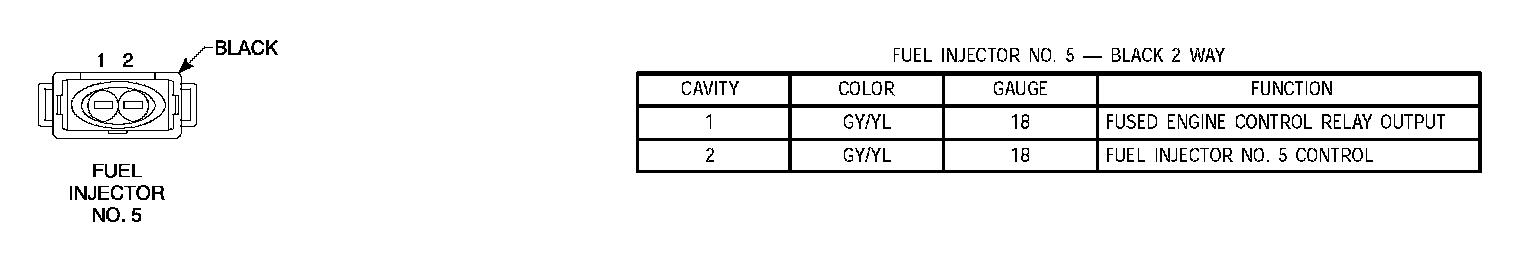

Fuel Injector No. 5:

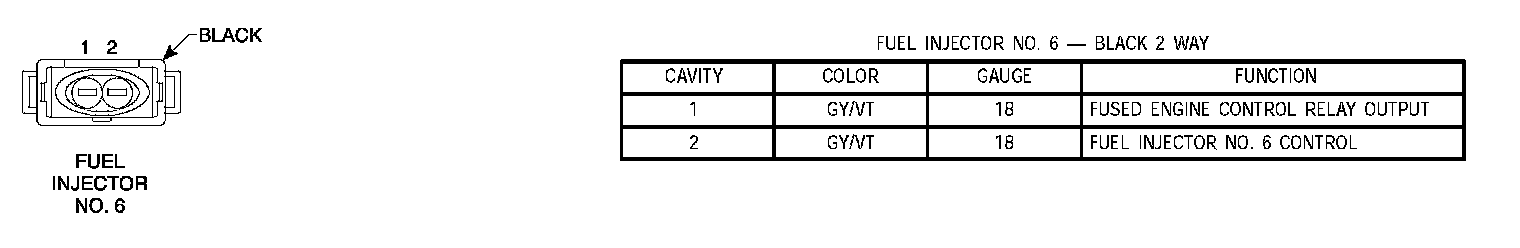

Fuel Injector No. 6:
