Chrysler
>>
2004
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

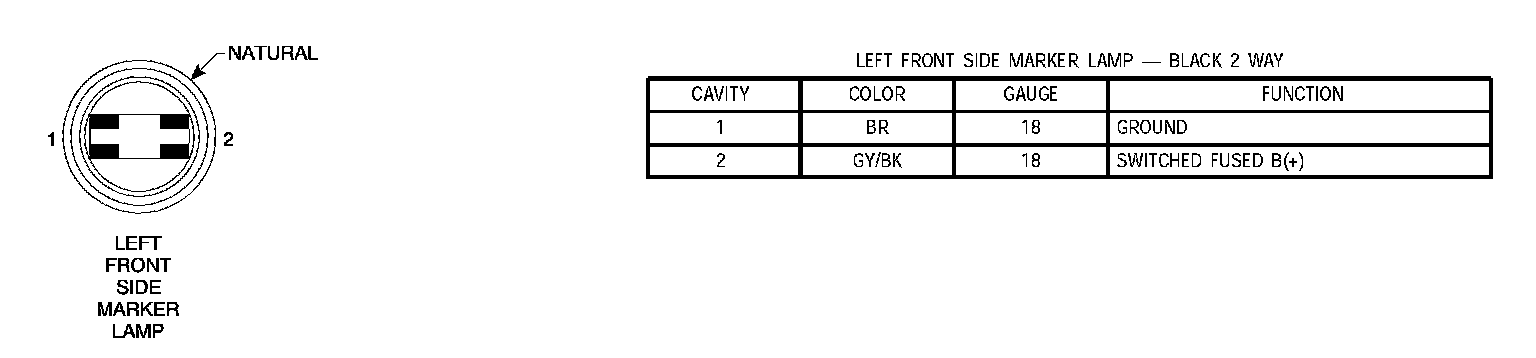

Left Front Side Marker Lamp:

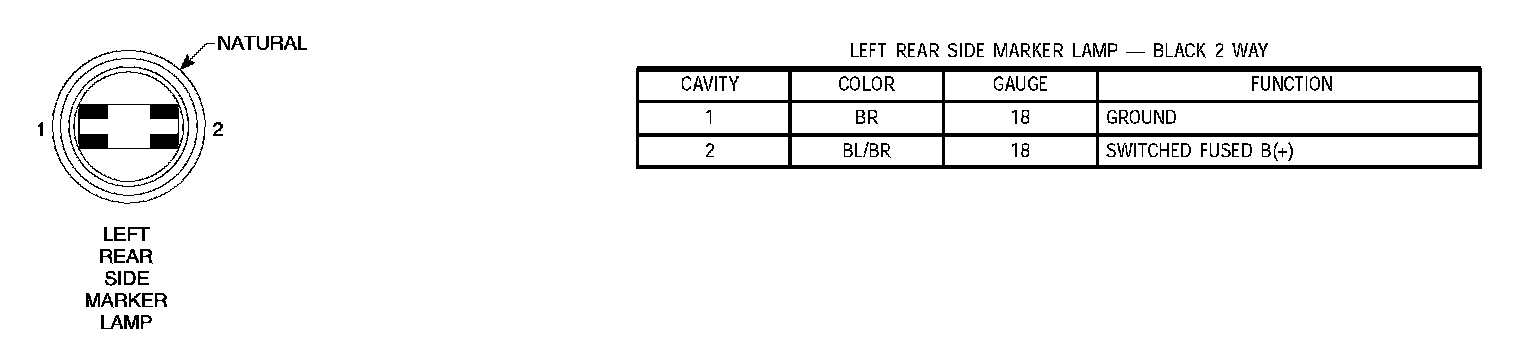

Left Rear Side Marker Lamp:

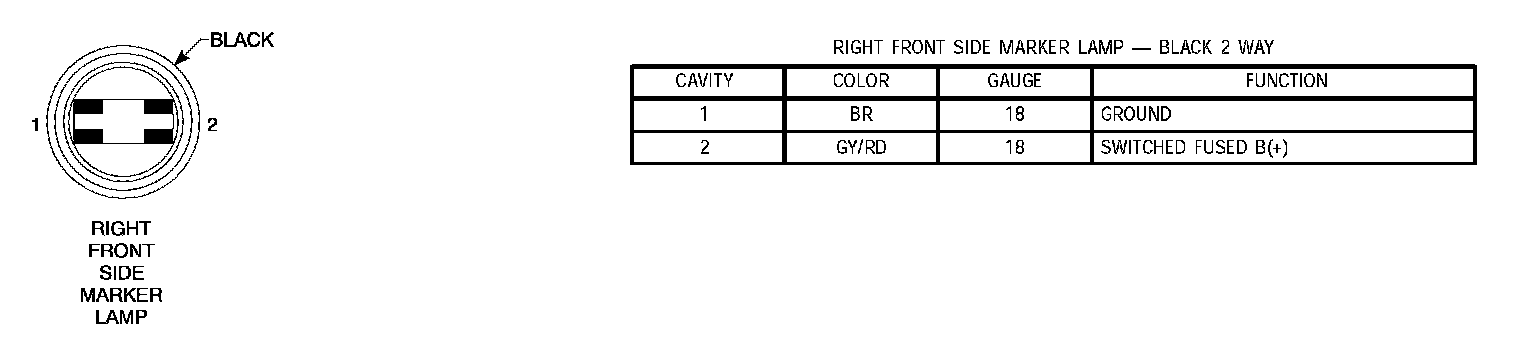

Right Front Side Marker Lamp:

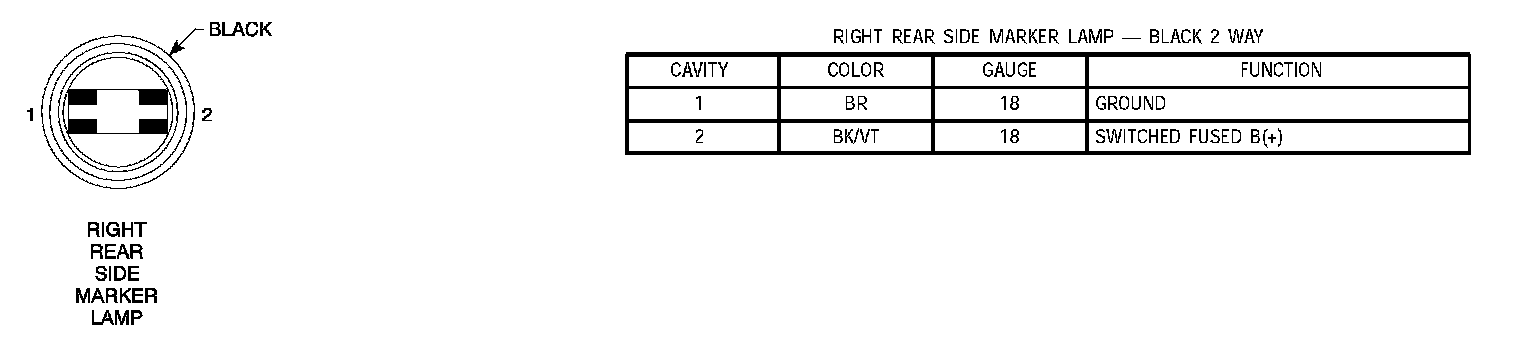

Right Rear Side Marker Lamp:
