Seat Temperature Element
Seat Temperature Element

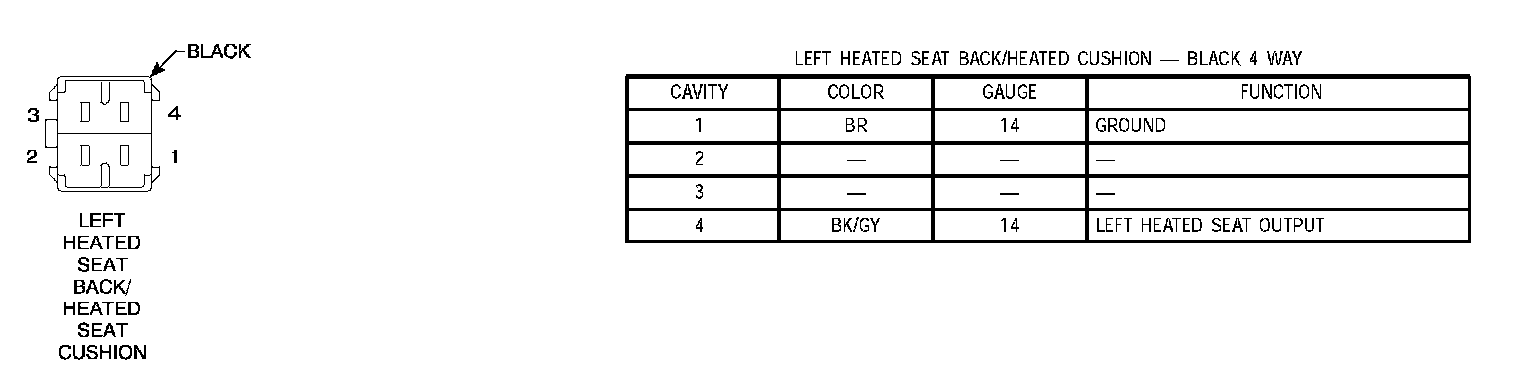

Left Heated Seat Back / Heated Seat Cushion:
Right Heated Seat Back/ Heated Seat Cushion:
