Speaker
Speaker

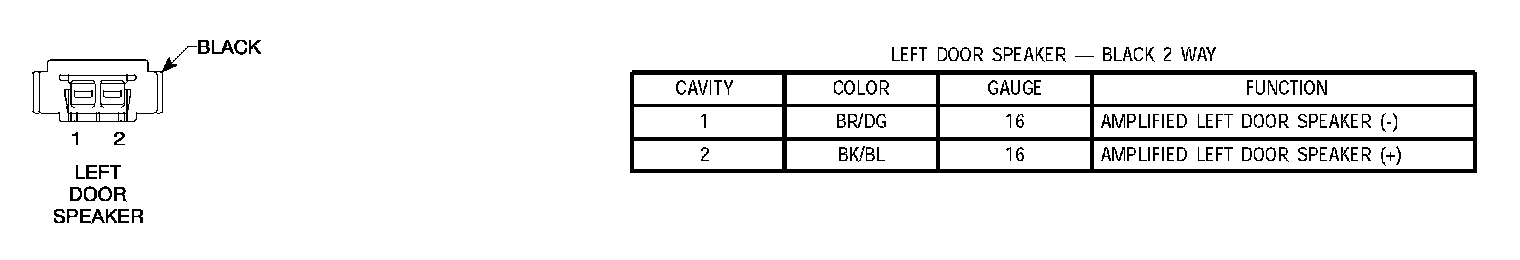

Left Door Speaker:

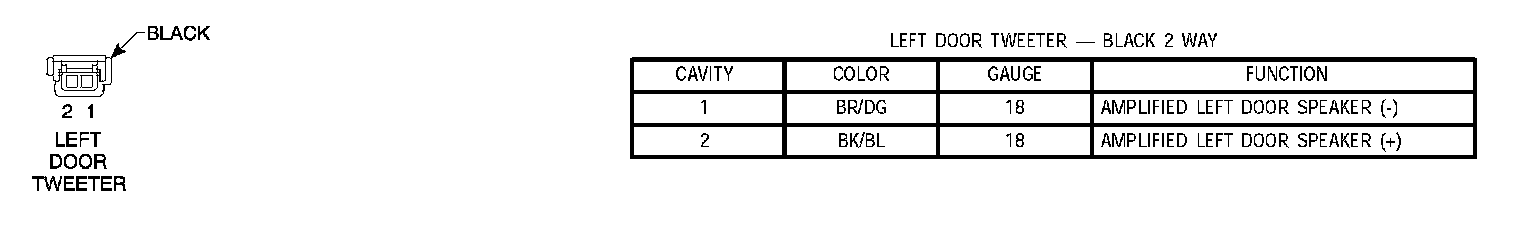

Left Door Tweeter:
Left Rear Speaker:

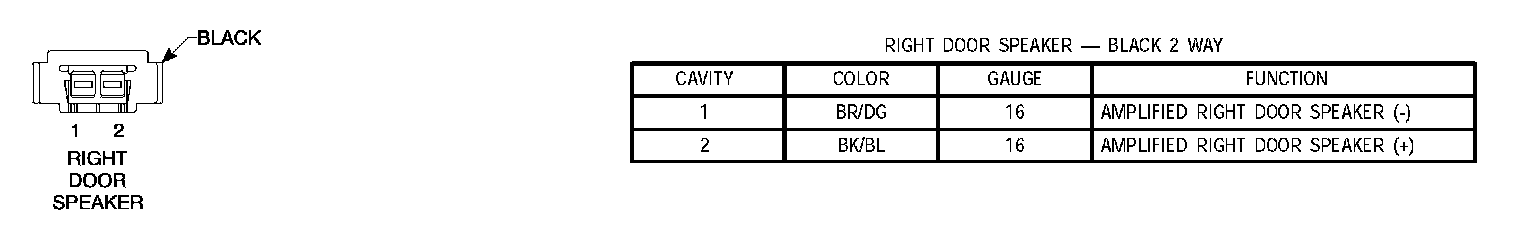

Right Door Speaker:

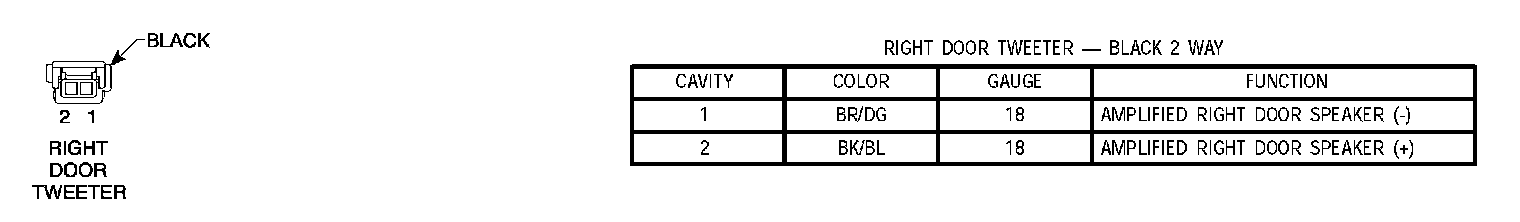

Right Door Tweeter:

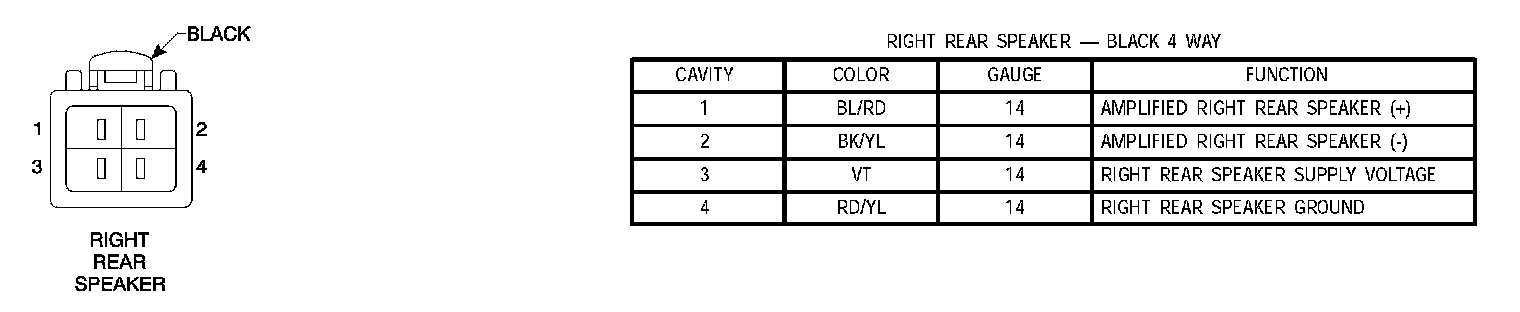

Right Rear Speaker:
