Tow Sensor, Antitheft
Tow Sensor, Antitheft

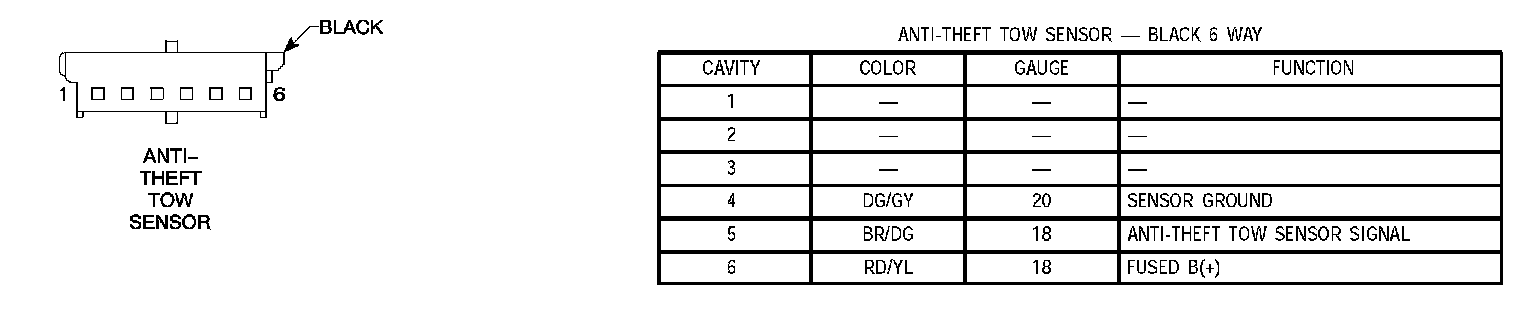

Anti-Theft Tow Sensor:
Right Side Trunk:

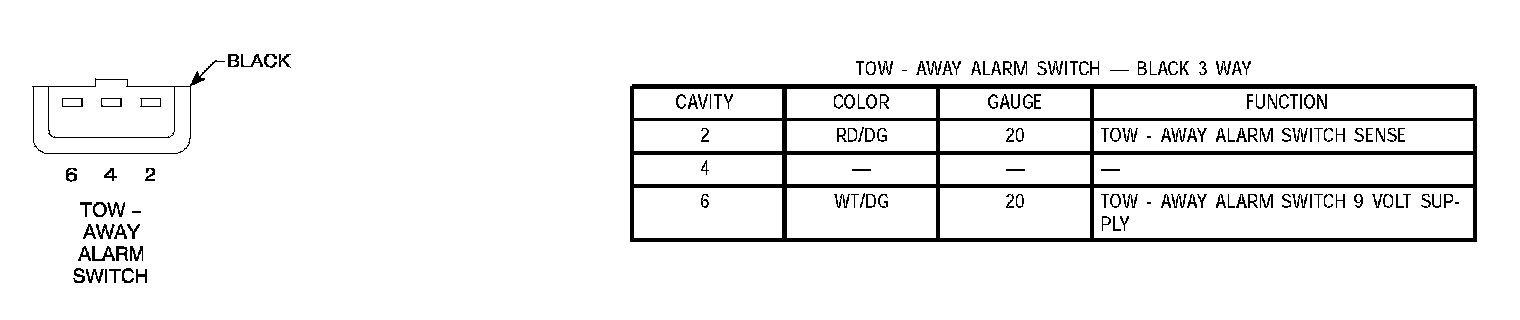

Tow-Away Alarm Switch:
