Headlamp: Description and Operation

HEADLAMP UNIT

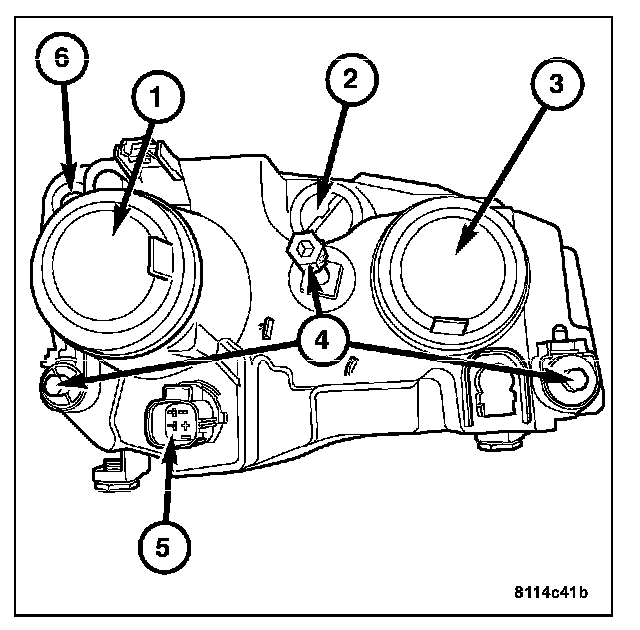

The headlamp unit is a housing that integrates separate bulbs for low beam (3) and high beam (1) headlamps. It also includes the turn signal (2) and front position (6) bulbs as well. The low beam, high beam and turn signal bulbs are enclosed with access covers for protection. One single harness connector (5) supplies ground and power from fuses within the illumination control module/IP fuse block.

The entire headlamp unit is mounted onto the front of the core support structure and aimed with built in adjustment screws (4).
