Horn: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the grille.




3. Disconnect the horn harness connector (1).

NOTE: Do not disconnect the horn from the horn mounting bracket.

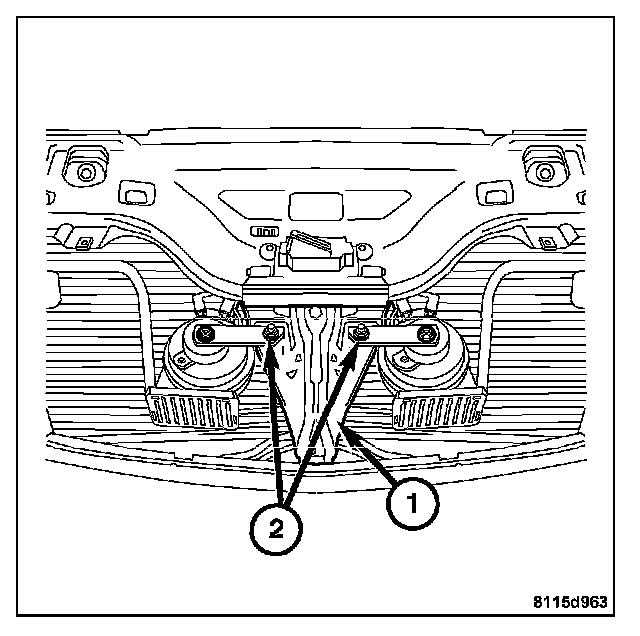

4. Remove the horn bracket mounting bolt (2) from the core support brace (1), and remove the horn.

INSTALLATION

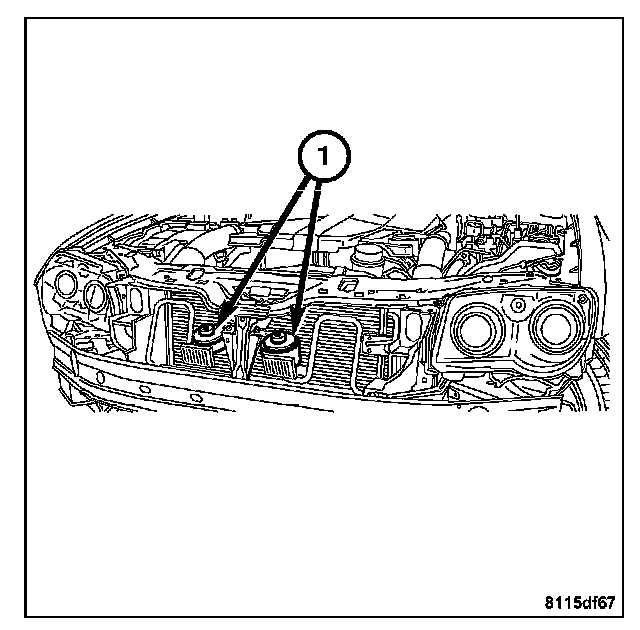

1. Position the horn(s) (1) onto the vehicle core support and install the horn bracket mounting bolt. Tighten the bolt to 11.3 Nm (100 in. lbs.).
2. Connect the horn harness connector.
3. Install the grille.
4. Connect the negative battery cable.
