Component Tests and General Diagnostics

Windshield Wiper System

Whenever a windshield wiper or washer system malfunction occurs, disconnect the harness connections and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. For complete windshield wiper/washer schematics and diagrams, see wipers/washers electrical diagnostics.

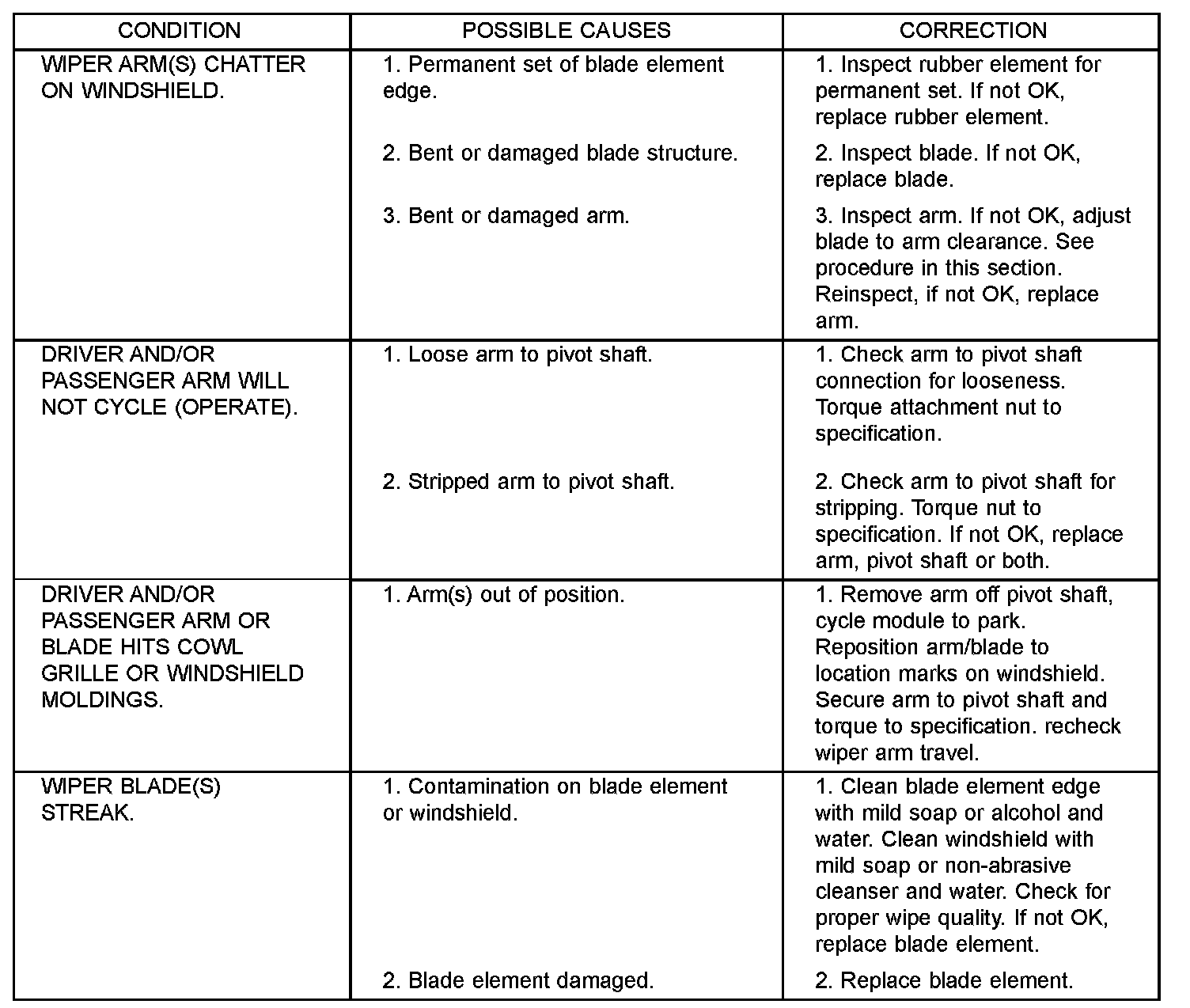

Wiper System Diagnosis

Windshield Washer System

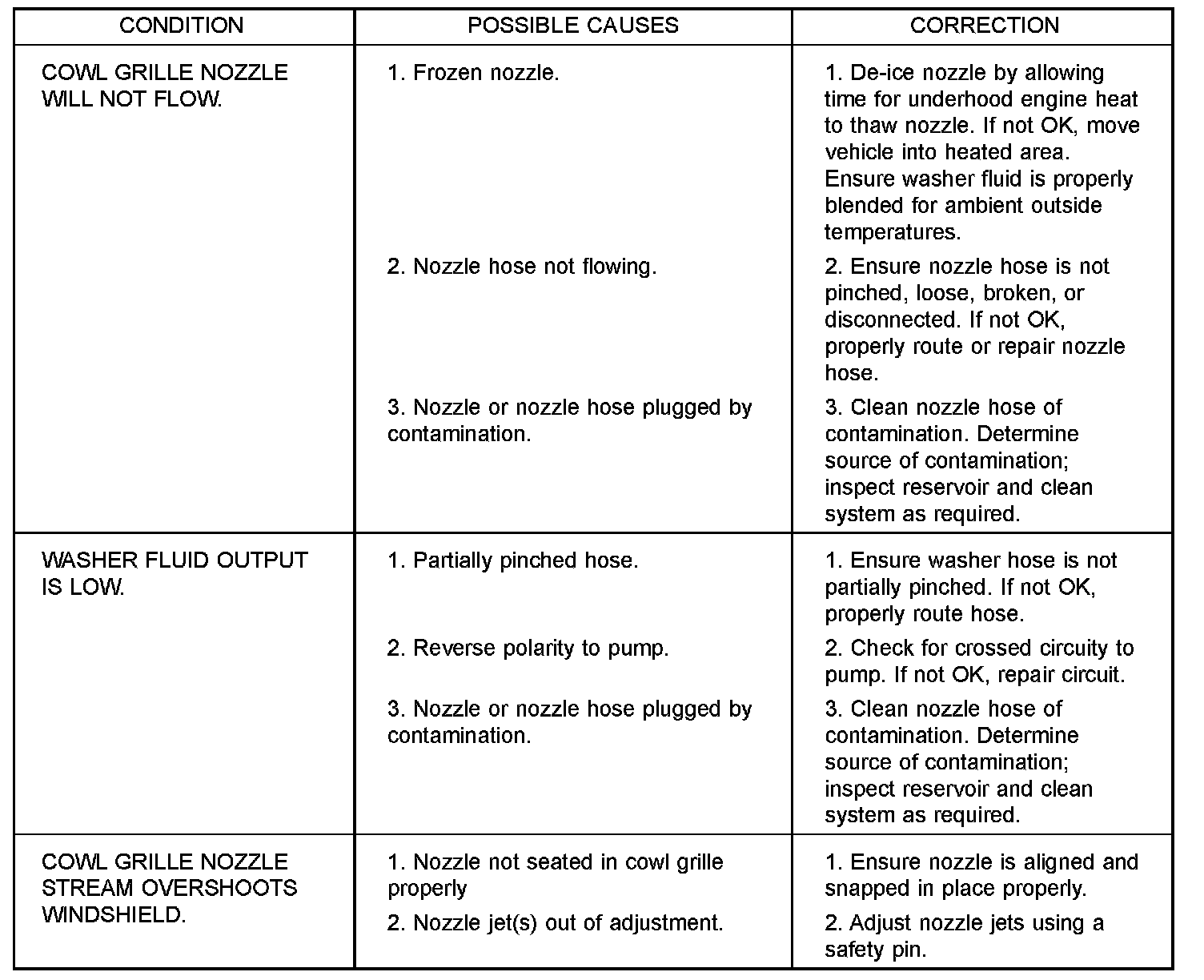

Washer System Diagnosis
