Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C115 - C202
>>
C120
C120

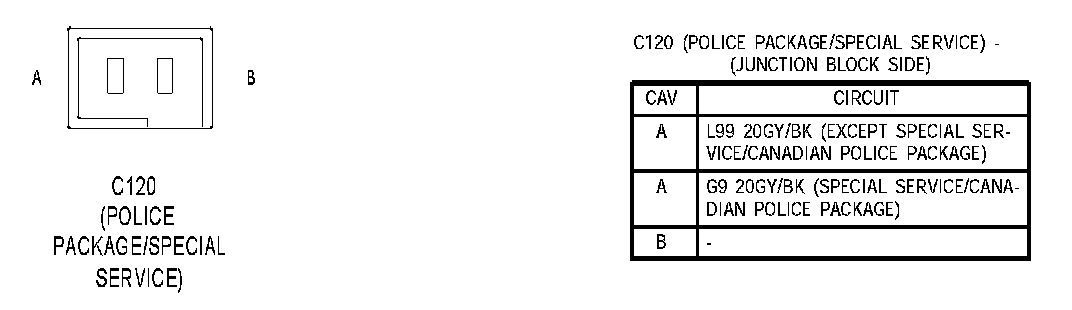

C120 (Police Package/Special Service):

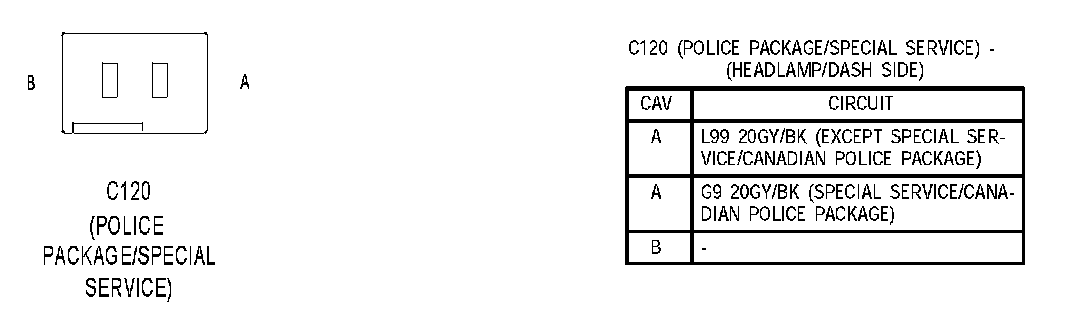

C120 (Police Package/Special Service):
