Engine Control Module

Powertrain Control Module C1:



Powertrain Control Module C2:



Powertrain Control Module C3:

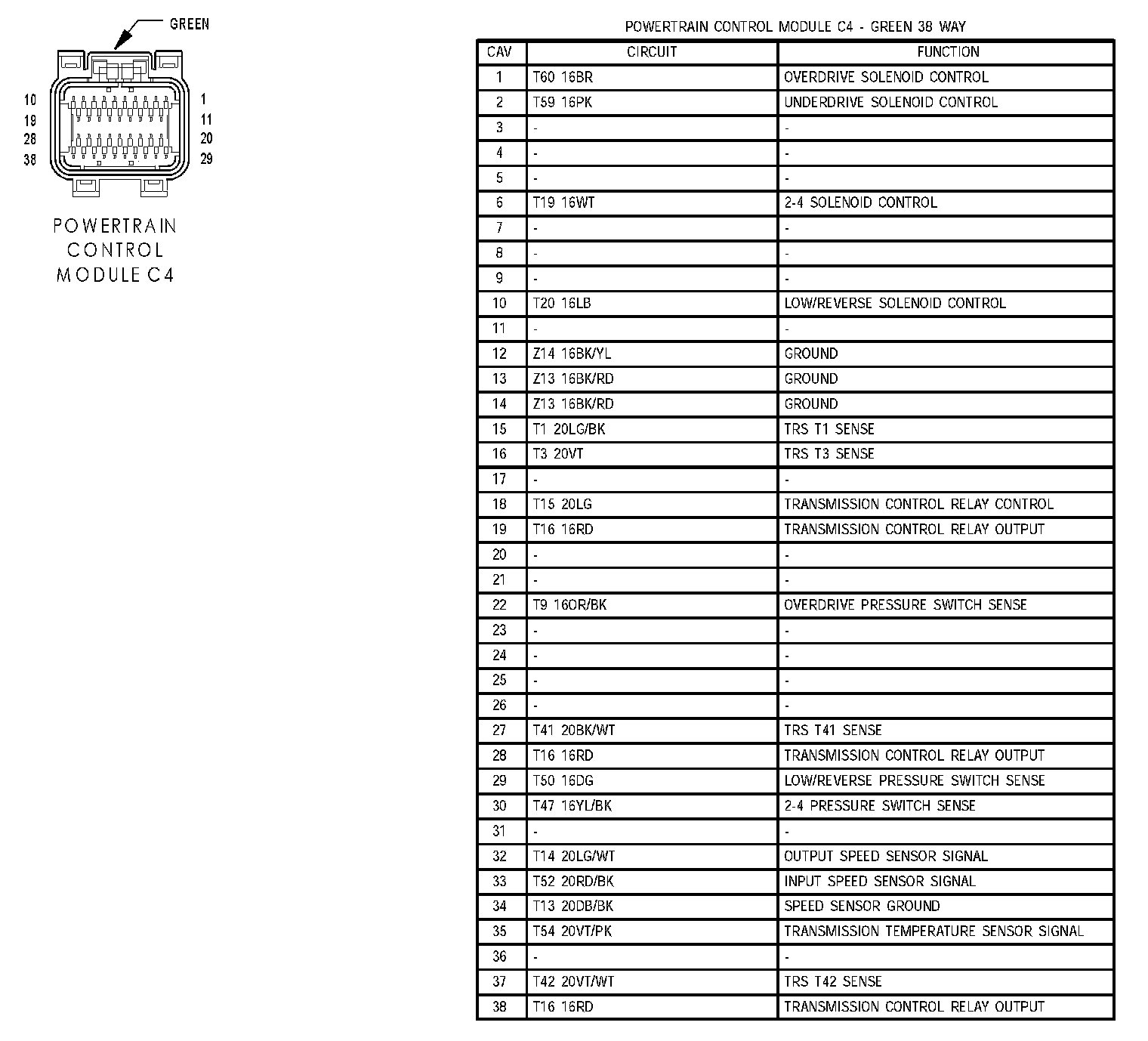

Powertrain Control Module C4:
