Fog/Driving Lamp
Fog/Driving Lamp

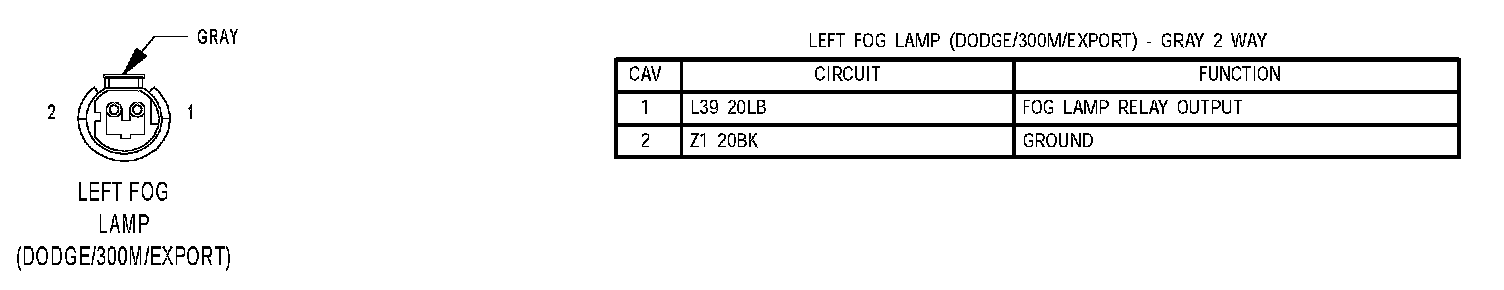

Left Fog Lamp (Dodge/300M/Export):

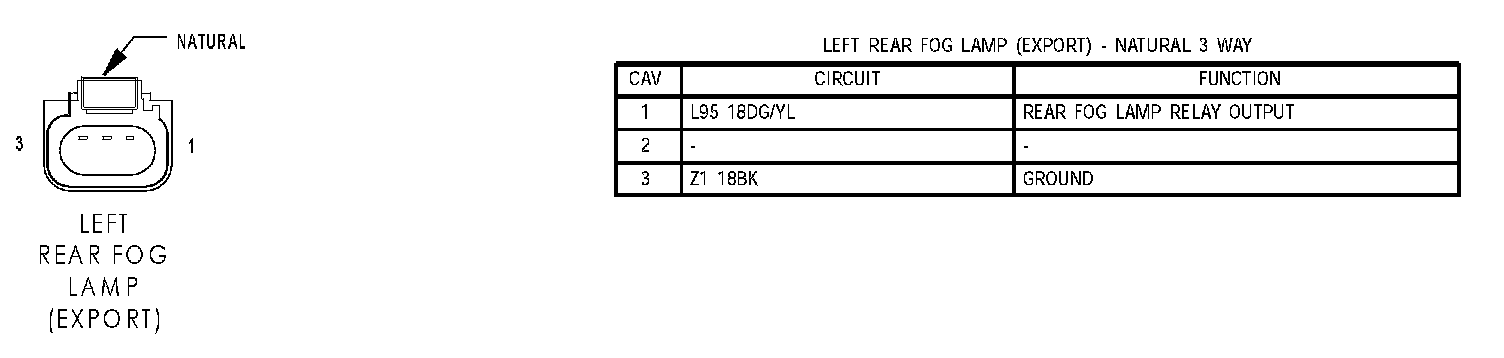

Left Rear Fog Lamp (Export):

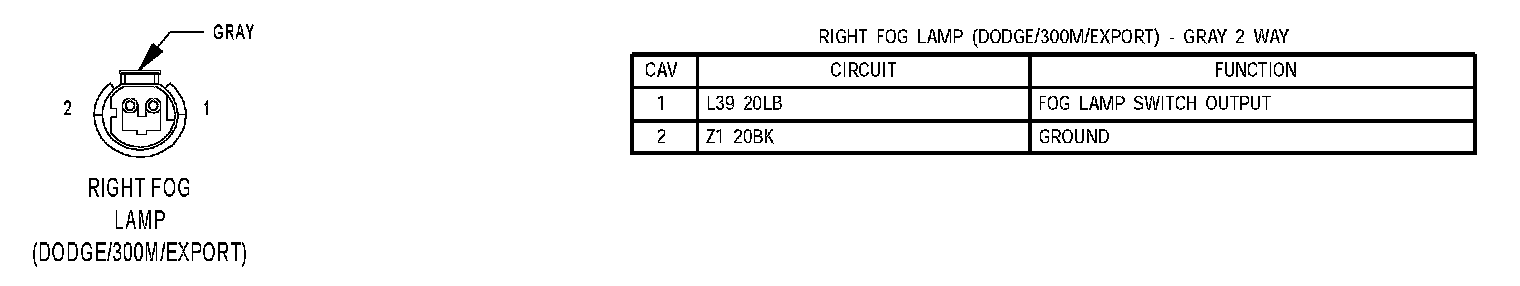

Right Fog Lamp (Dodge/300M/Export):
Right Rear Fog Lamp (Export):
