Tail Lamp
Tail Lamp
Left Tail/Stop Lamp No. 1 (Dodge/300M):

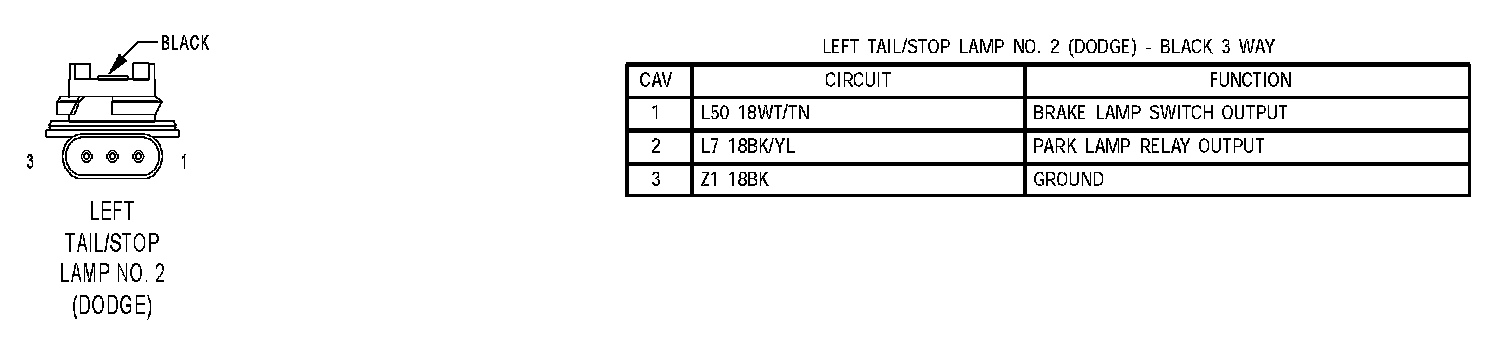

Left Tail/Stop Lamp No. 2 (Dodge):
Right Tail/Stop Lamp No. 1 (Dodge):
Right Tail/Stop Lamp No. 2 (Dodge):
