Windshield Washer Motor

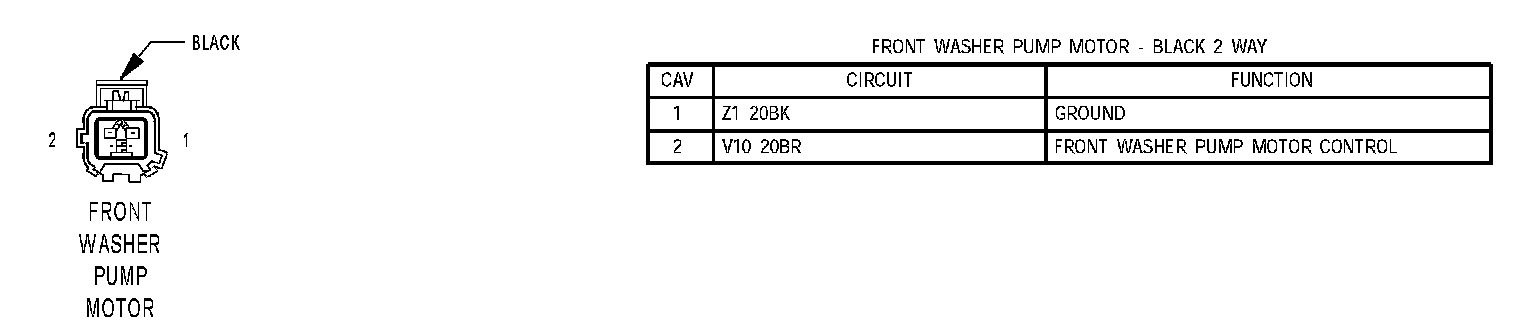

Front Washer Pump Motor:

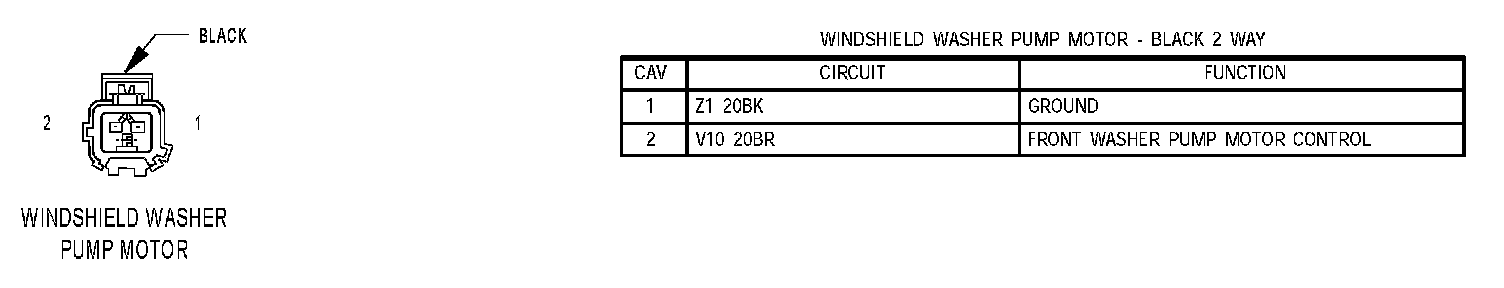

Windshield Washer Pump Motor:

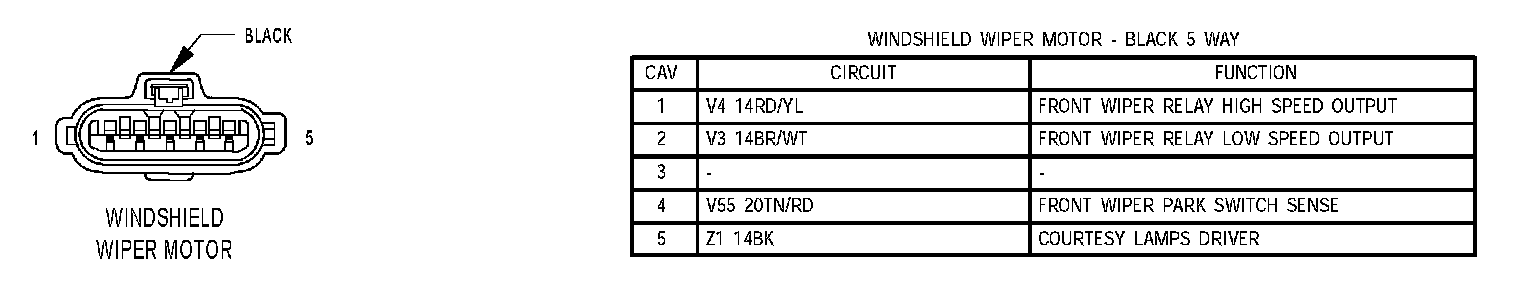

Windshield Wiper Motor:
