Intrepid (CANADA) V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

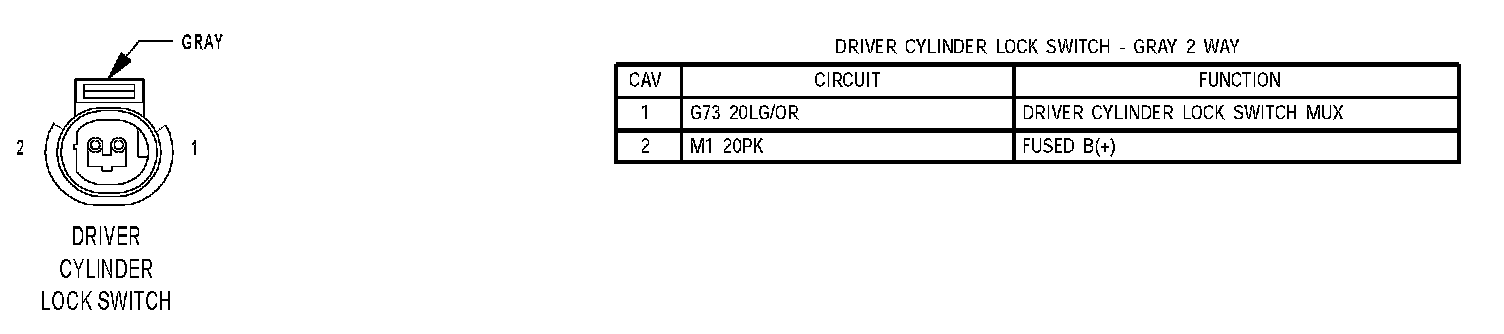

Driver Cylinder Lock Switch:

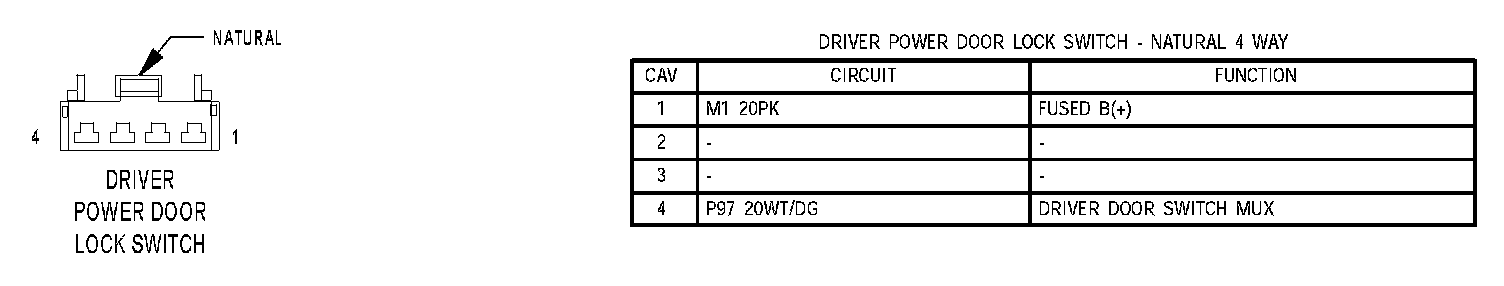

Driver Power Door Lock Switch:
Passenger Door Lock Motor/Ajar Switch:

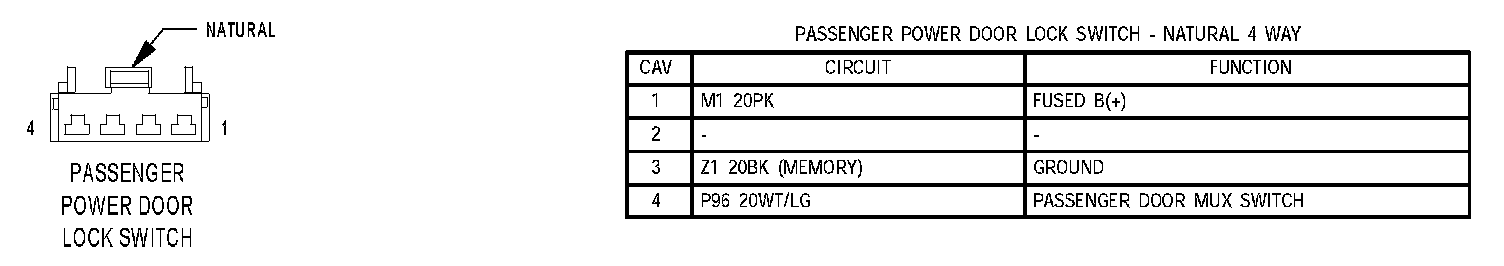

Passenger Power Door Lock Switch:
