System Diagram
>>
System Schematics
System Schematics

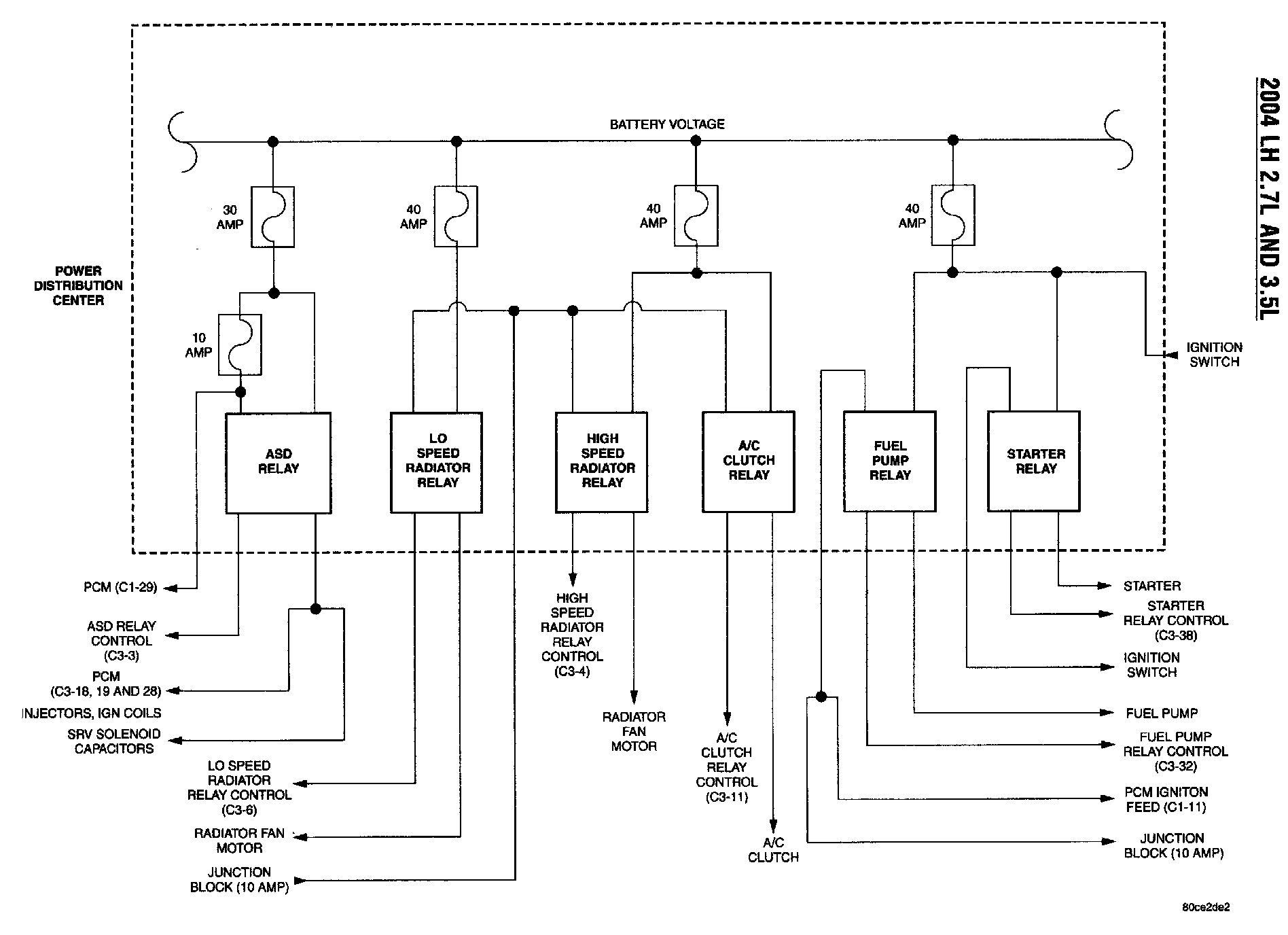

2004 LH 2.7L And 3.5L:
2004 LH 2.7L And 3.5L:
2004 LH 2.7L And 3.5L:
