Engine: Description and Operation
ENGINE 3.5LDESCRIPTION
3.5L Engine:
The 3.5 Liter (214 cubic inches) 60 ° V-6 engines is a single overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig. 1). The engine does not have provisions for a free wheeling valve train.
Cylinder Number and Firing Order:

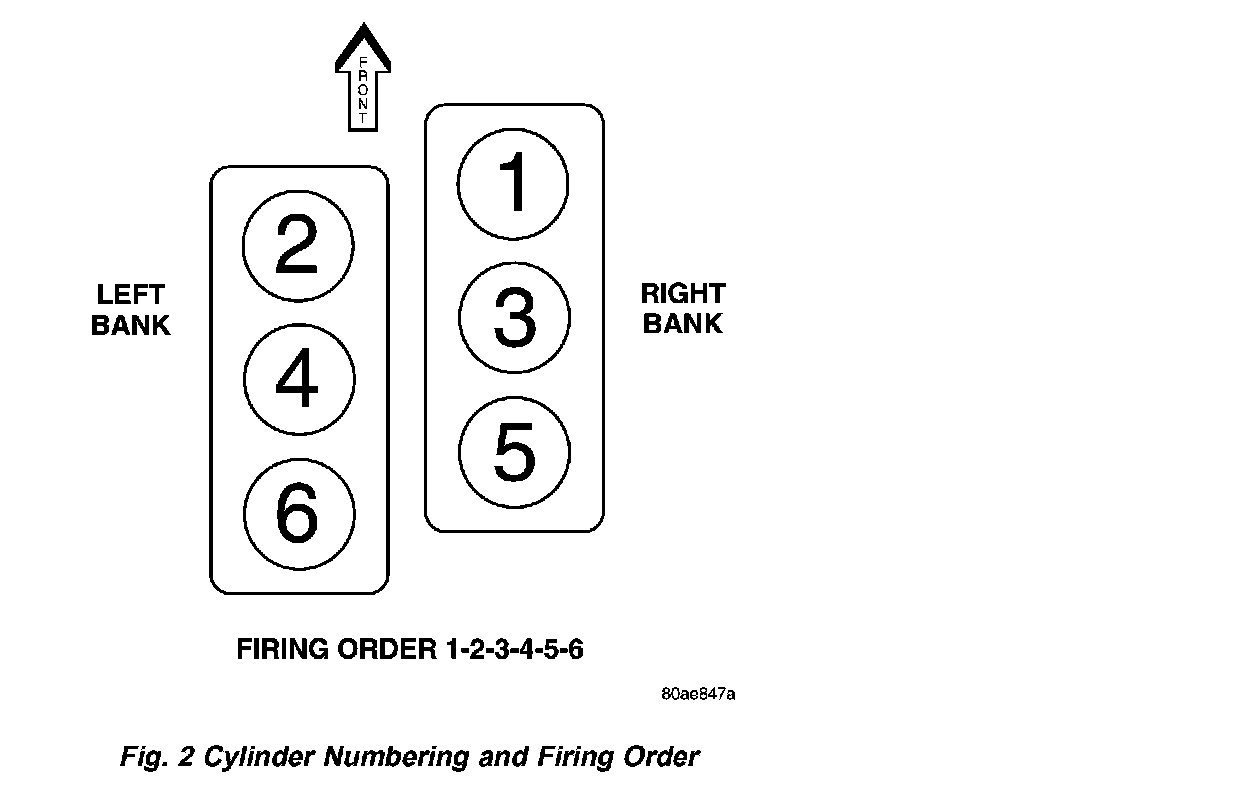

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig. 2). The firing order is 1-2-3-4-5-6.
Engine Identification:

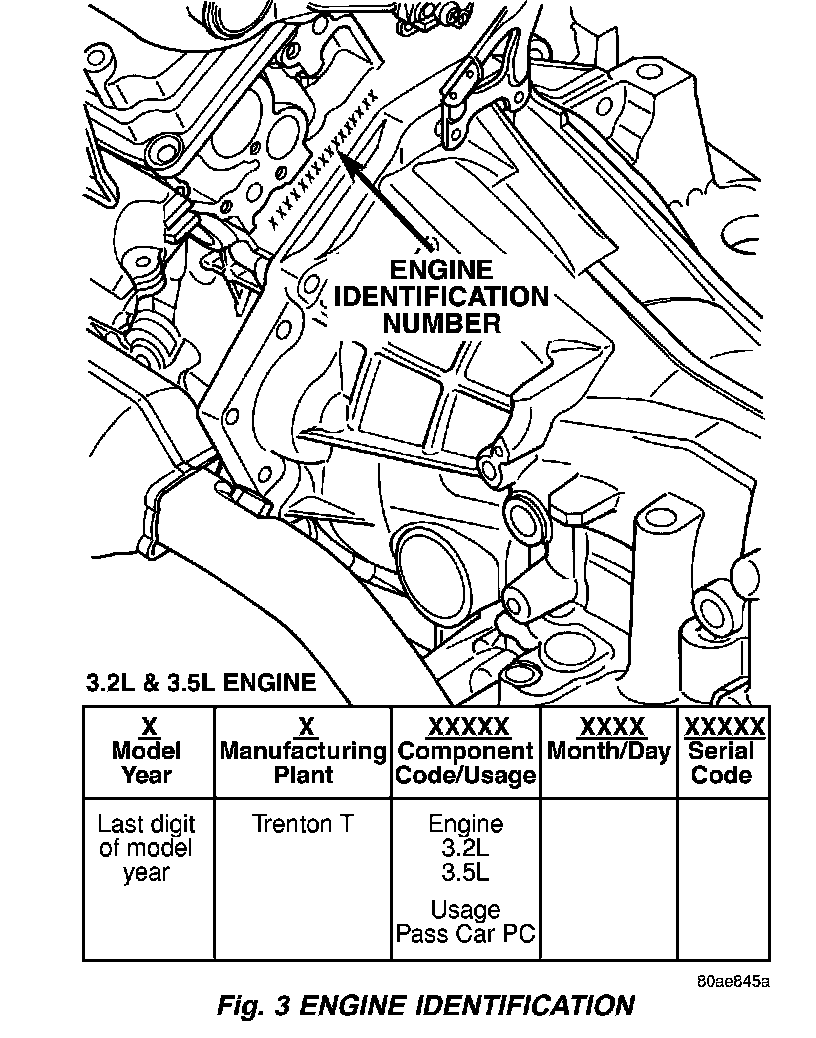

The engine identification number is located on the rear of engine block just below the cylinder head (Fig. 3).
