Center Mounted Brake Lamp: Diagrams

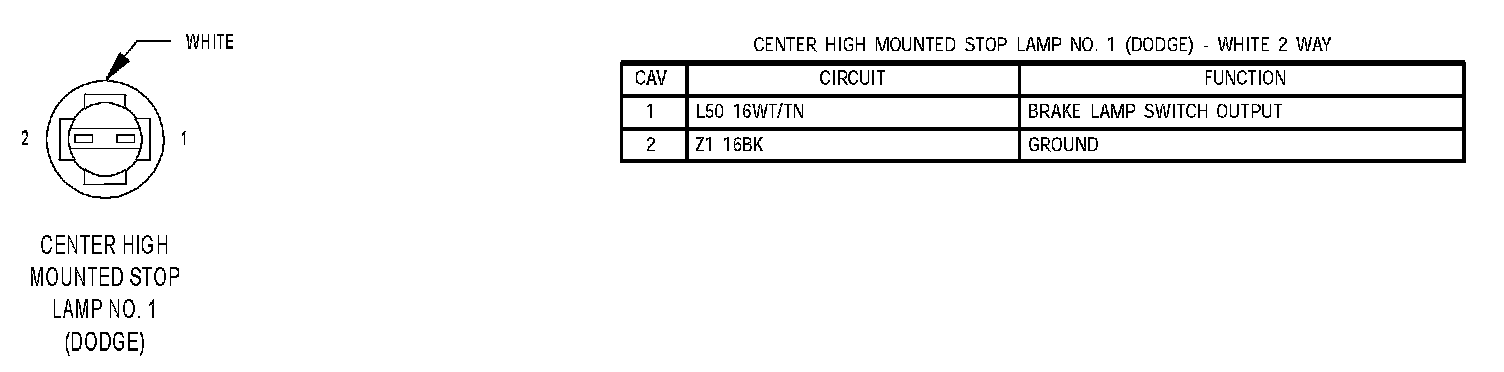

Center High Mounted Stop Lamp No. 1 (Dodge):

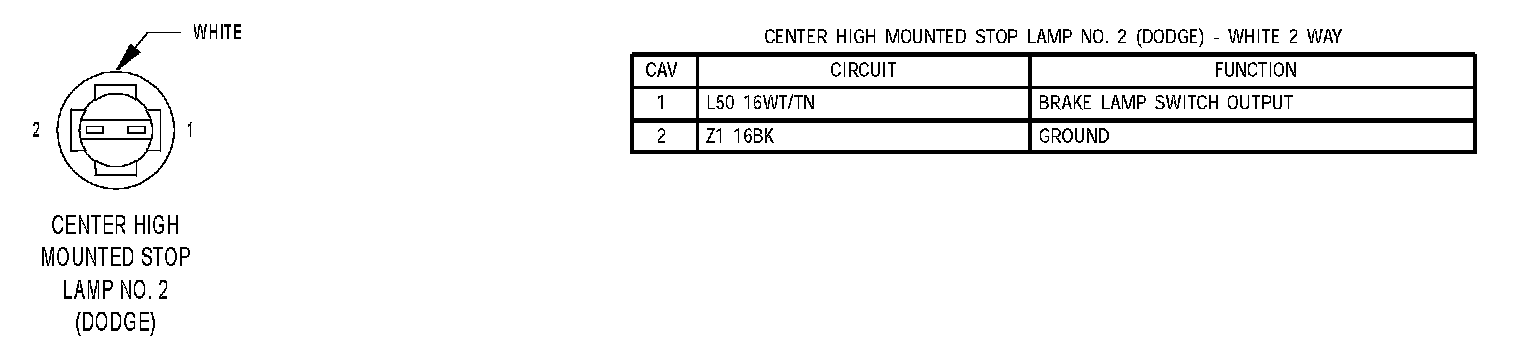

Center High Mounted Stop Lamp No. 2 (Dodge):
