System Specifications

Grade Marks / Cylinder Block:

Cylinder Block
Cylinder Bore Diameter 96.0 mm ± 0.0076 (3.780 inch ± 0.0003 in.)
Out-of-Round (Max.) 0.076 mm (0.003 in.)
Taper (Max.) 0.051 mm (0.002 in.)

Connecting Rods
Bearing Clearance 0.019-0.081 mm (0.0007-0.0031 in.)
Piston Pin Bore Diameter 24.0076-24.0153 mm (0.9452-0.9455 in.)
Side Clearance (Max.) 0.39 mm (0.0153 in.)
Total Weight (Less Bearing) 647 grams (22.8223 oz.)

Grade Marks / Crankshaft:

Crankshaft Main Bearing Journals
Diameter 63.987-64.013 mm (2.519-2.520 in.)
Main Bearing Diametrical Clearance 0.011-0.077 mm (0.0007-0.0030 in.)
(Max. Allowable) 0.087 mm (0.0034 in.)
Out-of-Round (Max.) 0.015 mm (0.0006 in.)
Taper (Max.) 0.015 mm (0.0006 in.)
End Play 0.10-0.30 mm (0.004-0.012 in.)
(Max.) 0.43 mm (0.017 in.)

Connecting Rod Journals
Diameter 57.979-58.005 mm (2.283-2.284 in.)
Bearing Diametrical Clearance 0.019-0.087 mm (0.00075-0.0034 in.)
Out-of-Round (Max.) 0.015 mm (0.0006 in.)
Taper (Max.) 0.015 mm (0.0006 in.)

Pistons
Type Material Aluminum (Full Floating Pins)
Piston Diameter 95.98 ± 0.019 mm (3.7788 ± 0.0008 in.)
Clearance at Size Location -0.007 to +0.047 mm (-0.0003 to +0.0018 in.)

Piston Weight
A Size 438-443 grams (15.45-15.62 oz.)
B Size 433-438 grams (15.27-15.45 oz.)

Piston Ring Groove Diameter
No. 1 87.4-87.6 mm (3.441-3.449 in.)
No. 2 86.3-86.5 mm (3.397-3.4055 in.)
No. 3 85.8-86.0 mm (3.378-3.385 in.)

Piston Rings
Ring Gap-Top Compression Ring 0.20-0.36 mm (0.008-0.014 in.)
Ring Gap-2nd Compression Ring 0.23-0.50 mm (0.0091-0.0197 in.)
Ring Gap-Oil Control (Steel Rails) 0.25-0.76 mm (0.010-0.030 in.)

Ring Side Clearance
Top and Second Compression Ring 0.04-0.08 mm (0.0016-0.0031 in.)
Oil Ring (Steel Rails) 0.038-0.184 mm (0.0015-0.0073 in.)
Ring Width
Top Compression Ring 1.17-1.19 mm (0.0461-0.0469 in.)
2nd Compression Ring 1.47-1.49 mm (0.058-0.059 in.)
Oil Ring (Steel Rings) 0.445-0.470 mm (0.0176-0.0186 in.)

Connecting Rod Cap-Nuts 54 Nm (40 ft. lbs.) + 1/4 turn

Crankshaft Damper Bolt 95 Nm (70 ft. lbs.)

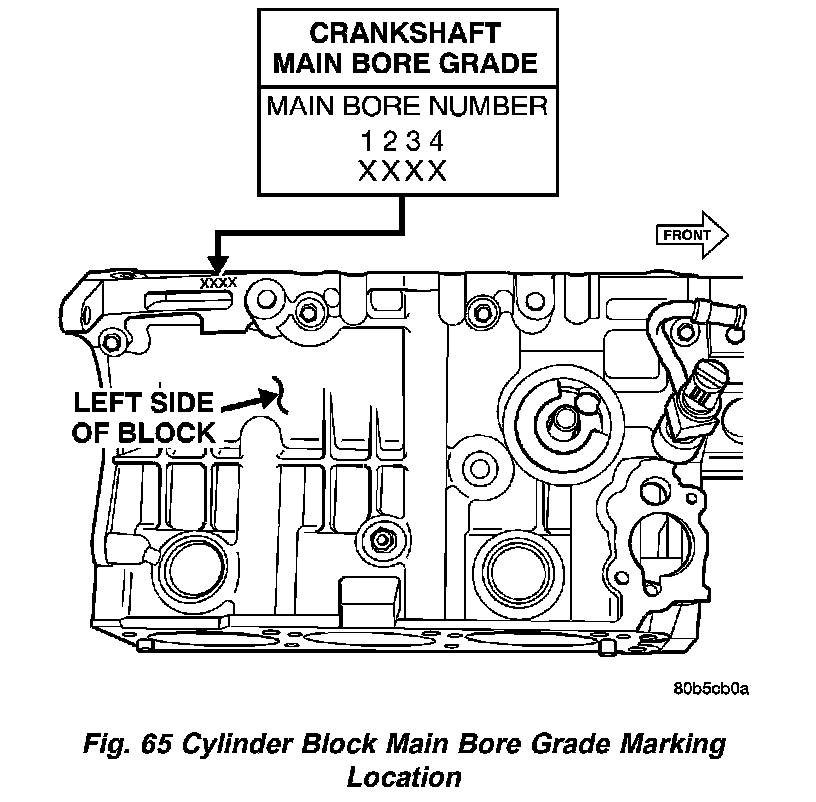

Grade Marks / Main Bearing:

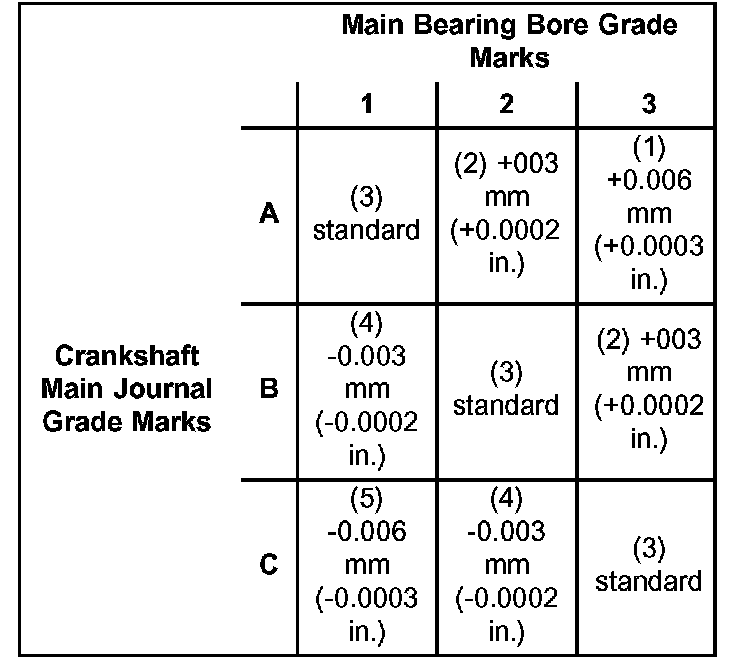

MAIN BEARING SELECTION CHART-3.2/3.5L:

Main Bearing Cap bolts

NOTE: Lubricate main bearing cap bolts with engine oil before installation.

Install each main cap and tighten bolts finger tight. The main bearing cap bolts must be tightened in the proper sequence.

First the inner main cap bolts, secondly the windage tray bolts, lastly the main cap tie (horizontal) bolts.







Install the inside main bearing cap bolts and tighten to 20 Nm (15 ft. lbs.) + 1/4 turn.
