Control Module HVAC

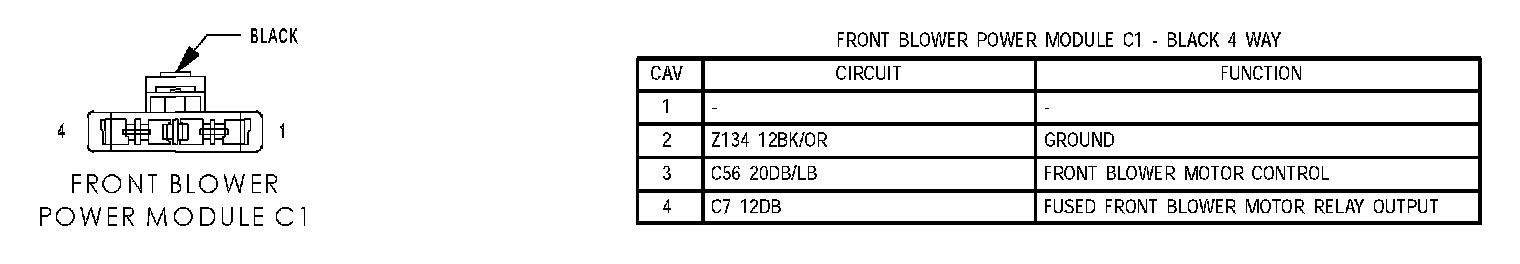

Front Blower Power Module C1:

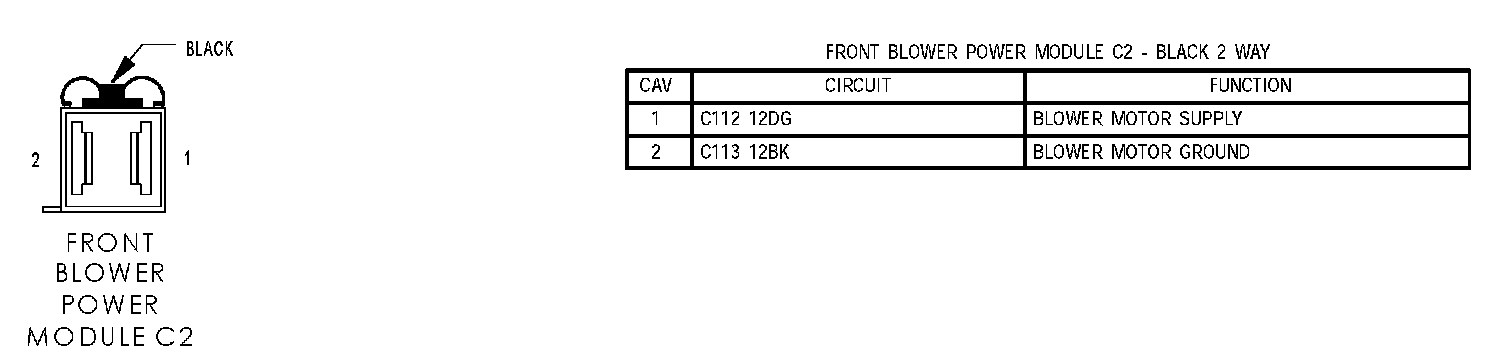

Front Blower Power Module C2:

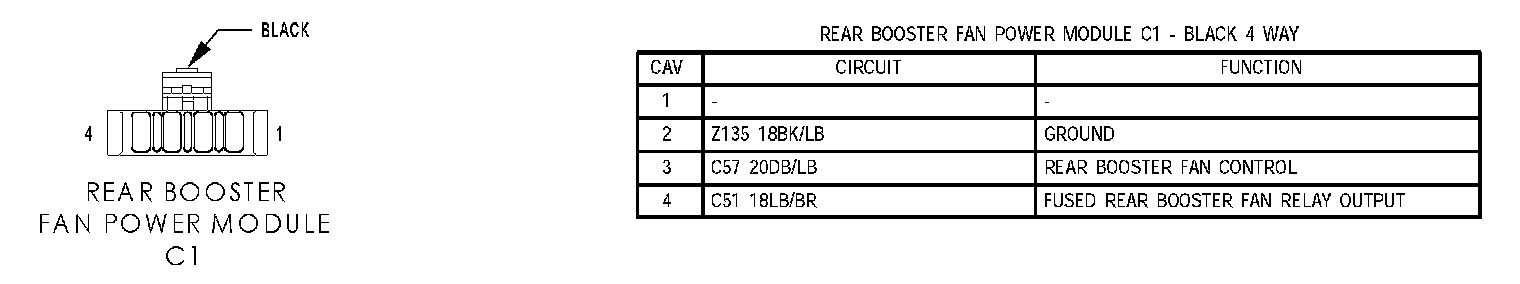

Rear Booster Fan Power Module C1:

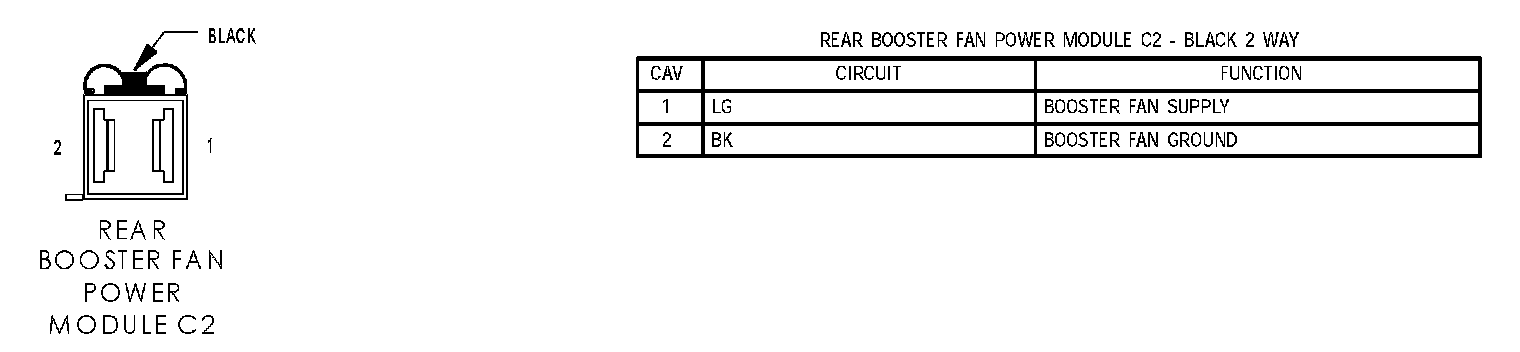

Rear Booster Fan Power Module C2:
