Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> System Schematics

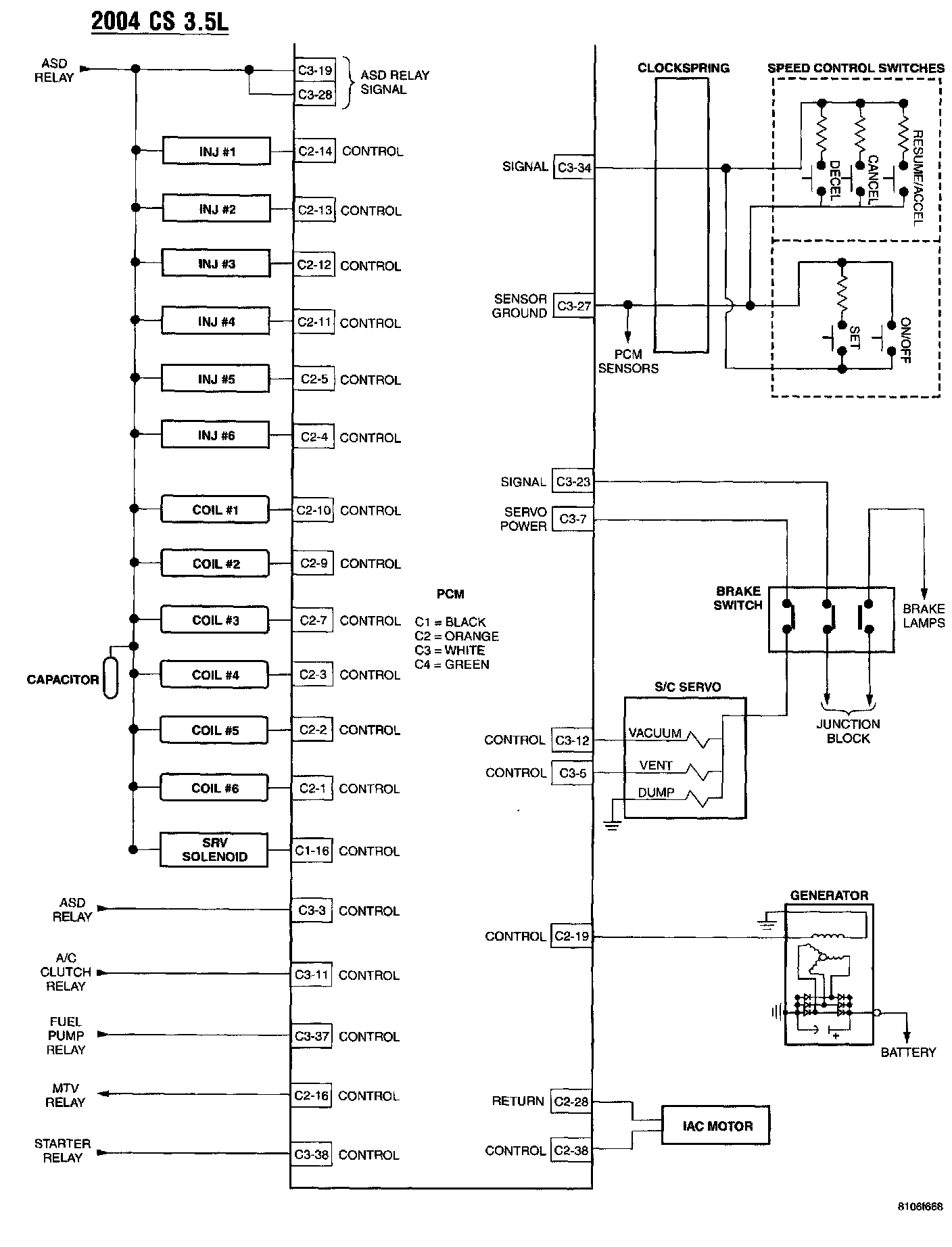

System Schematics

2004 CS 3.5L:



2004 CS 3.5L:



2004 CS 3.5L:
