Home
>>
Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Relays and Modules - HVAC
>>
Control Module HVAC
>>
Locations
>>
Rear Booster Fan Power Module
Rear Booster Fan Power Module

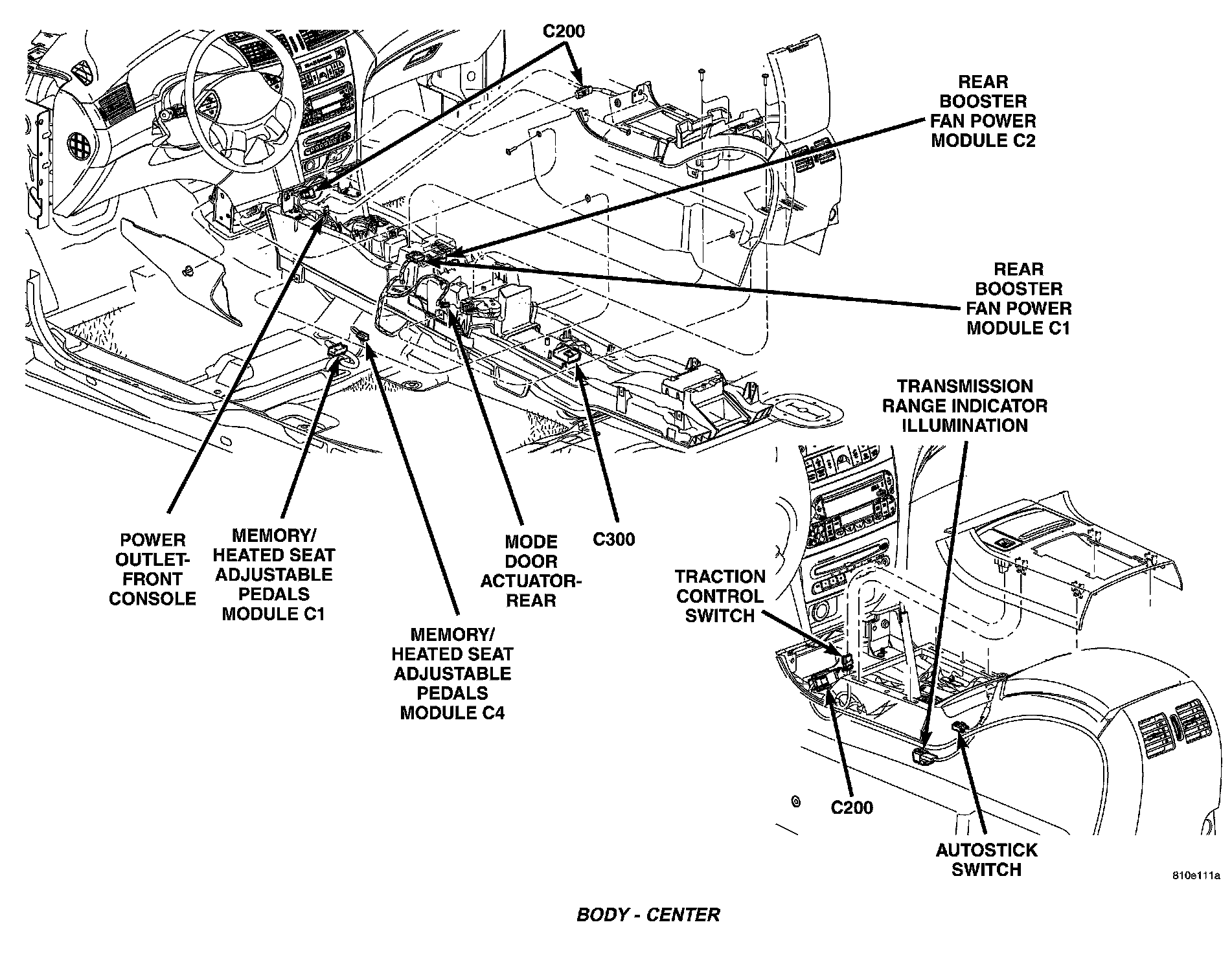

Body - Center:

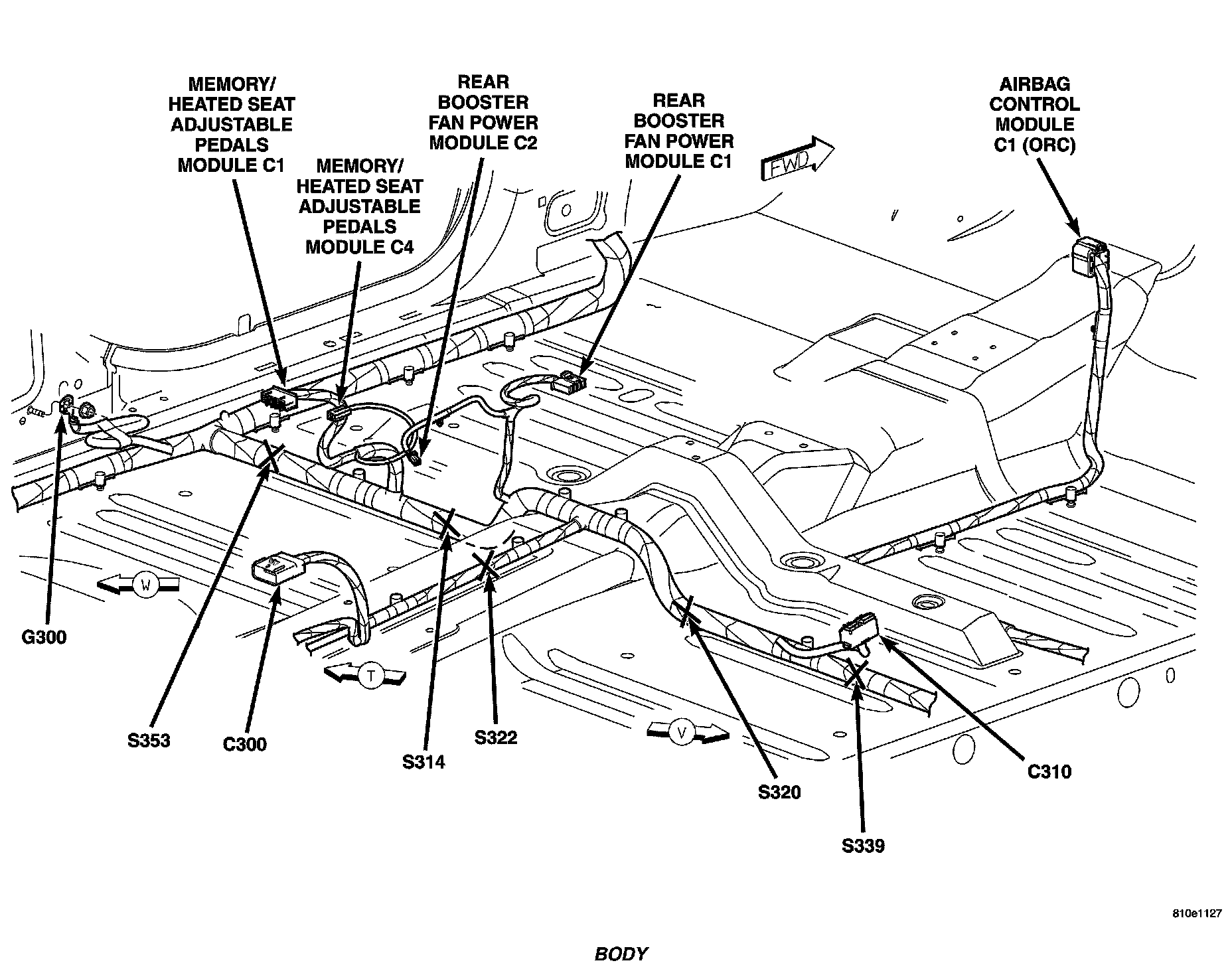

Body:
