Rear Blower Motor Power Module

REMOVAL
1. Remove the rear center console upper cover.
2. Disconnect and isolate the battery negative cable.

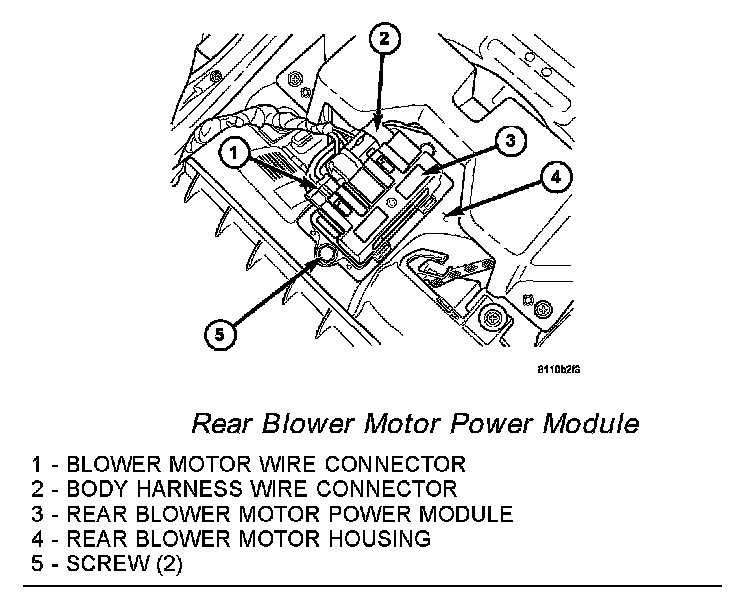

Rear Blower Motor Power Module:

3. Disconnect the body wire harness connector from the rear blower motor power module.
4. Disconnect the rear blower motor wire harness connector from the power module.
5. Remove the two screws that secure the power module to the rear blower motor housing.
6. Remove the power module from the blower motor housing.

INSTALLATION
1. Position the rear blower motor power module into the rear blower motor housing.
2. Install the two screws that secure the power module to the blower motor housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Reconnect the blower motor wire harness connector to the power module.
4. Reconnect the body wire harness connector to the power module.
5. Reconnect the battery negative cable.
6. Install the front center floor console cover.
