Connector Views

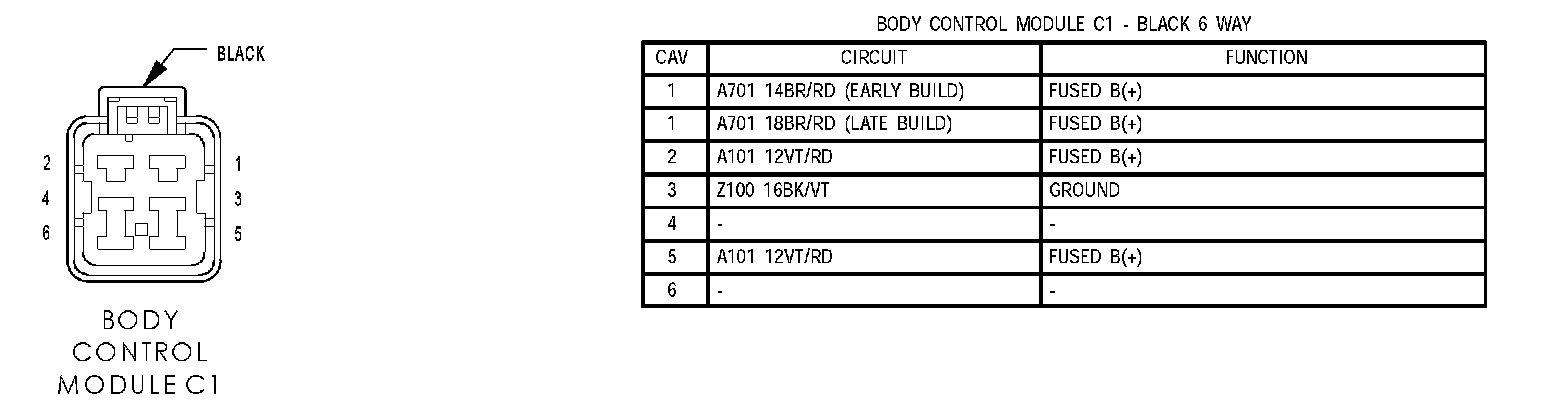

Body Control Module C1:

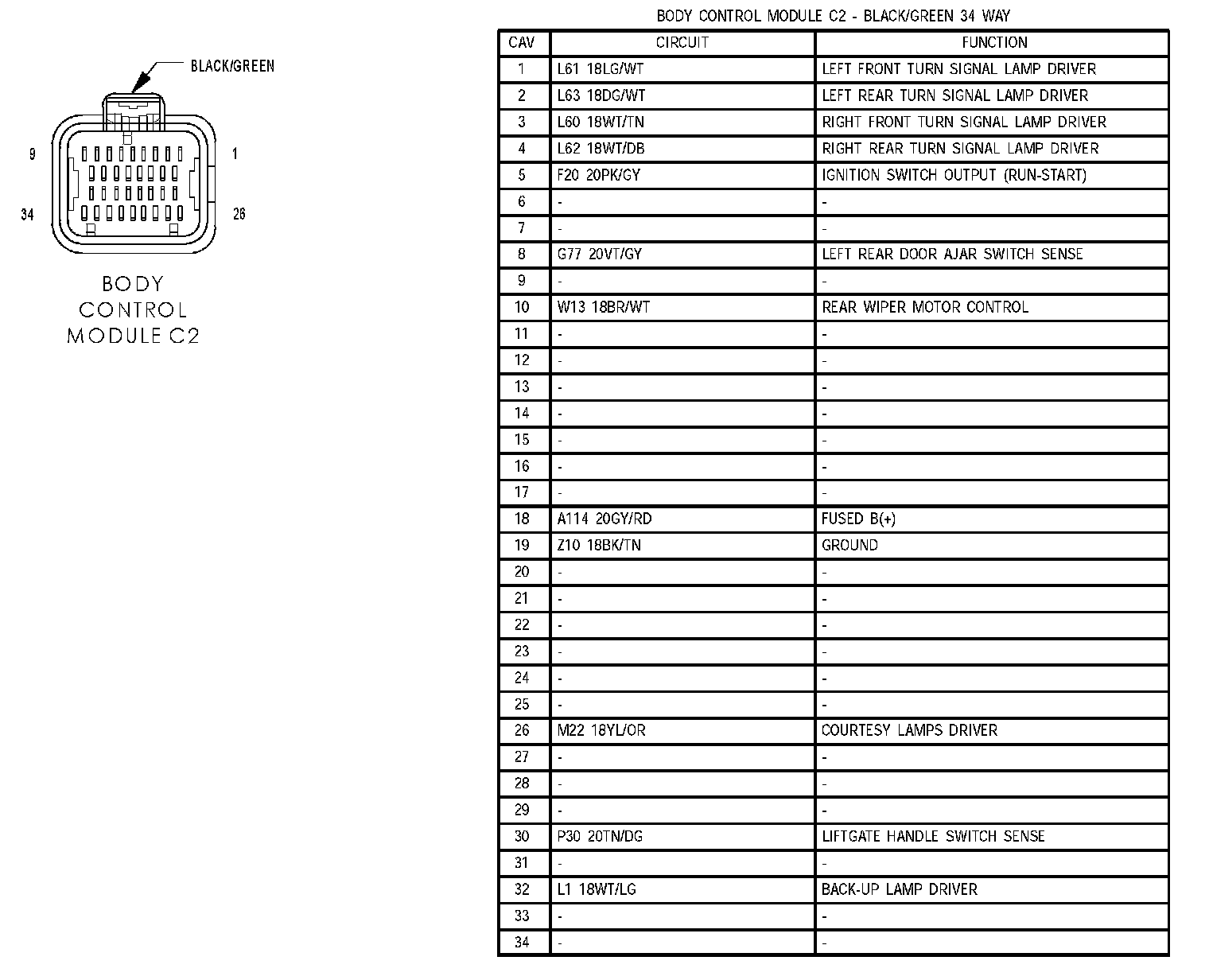

Body Control Module C2:
Body Control Module C3:

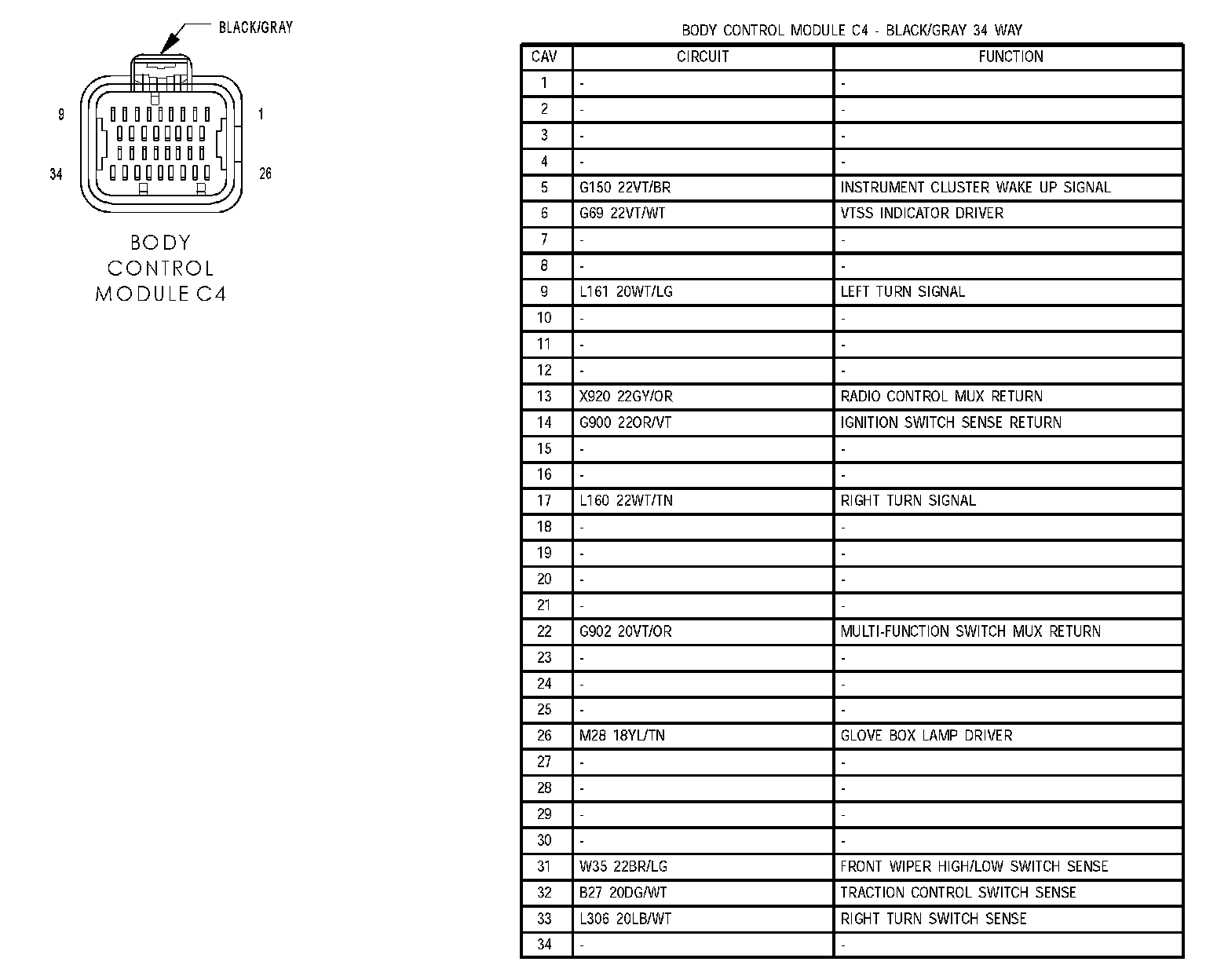

Body Control Module C4:

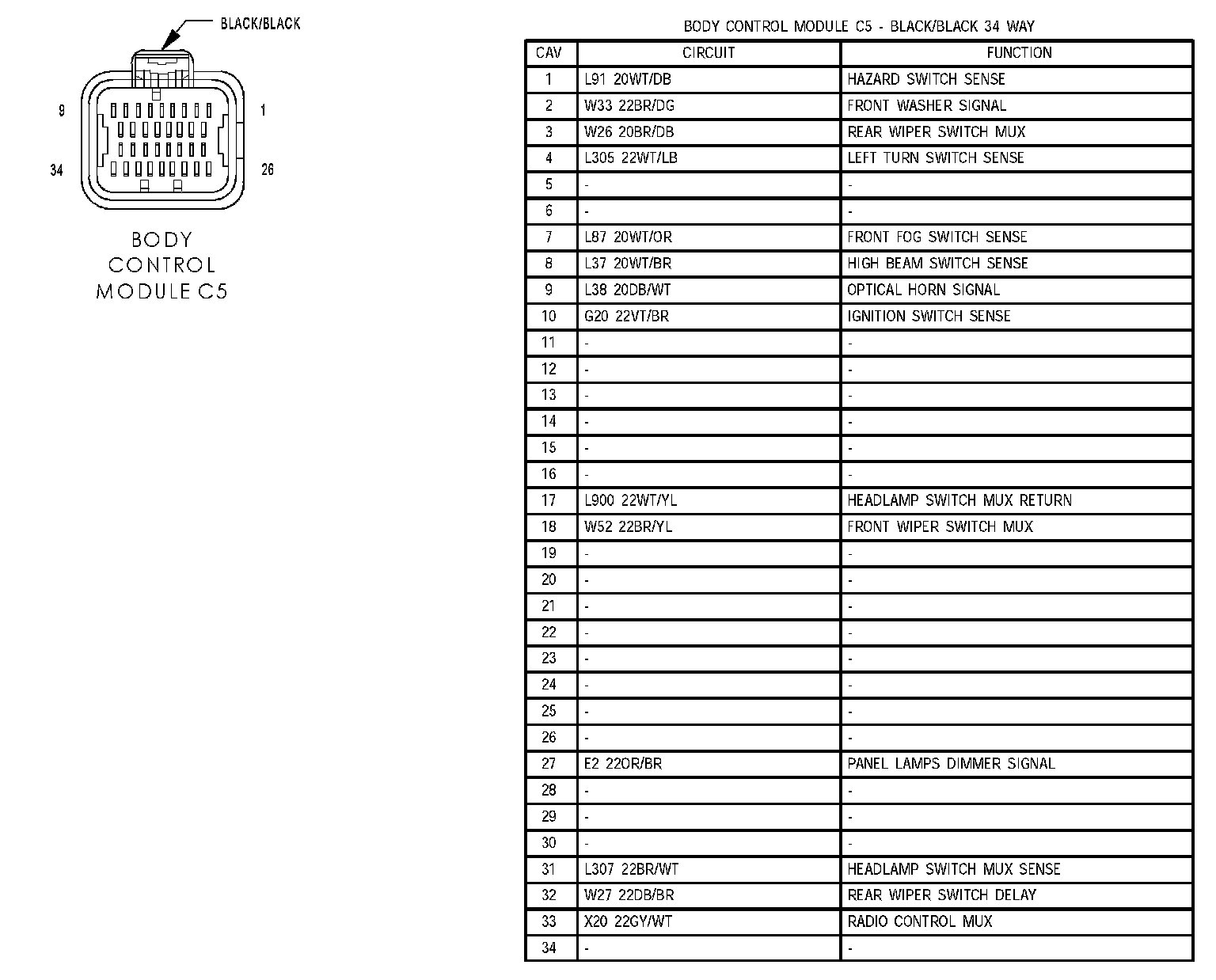

Body Control Module C5:
