No Response From PCM (PCI BUS)

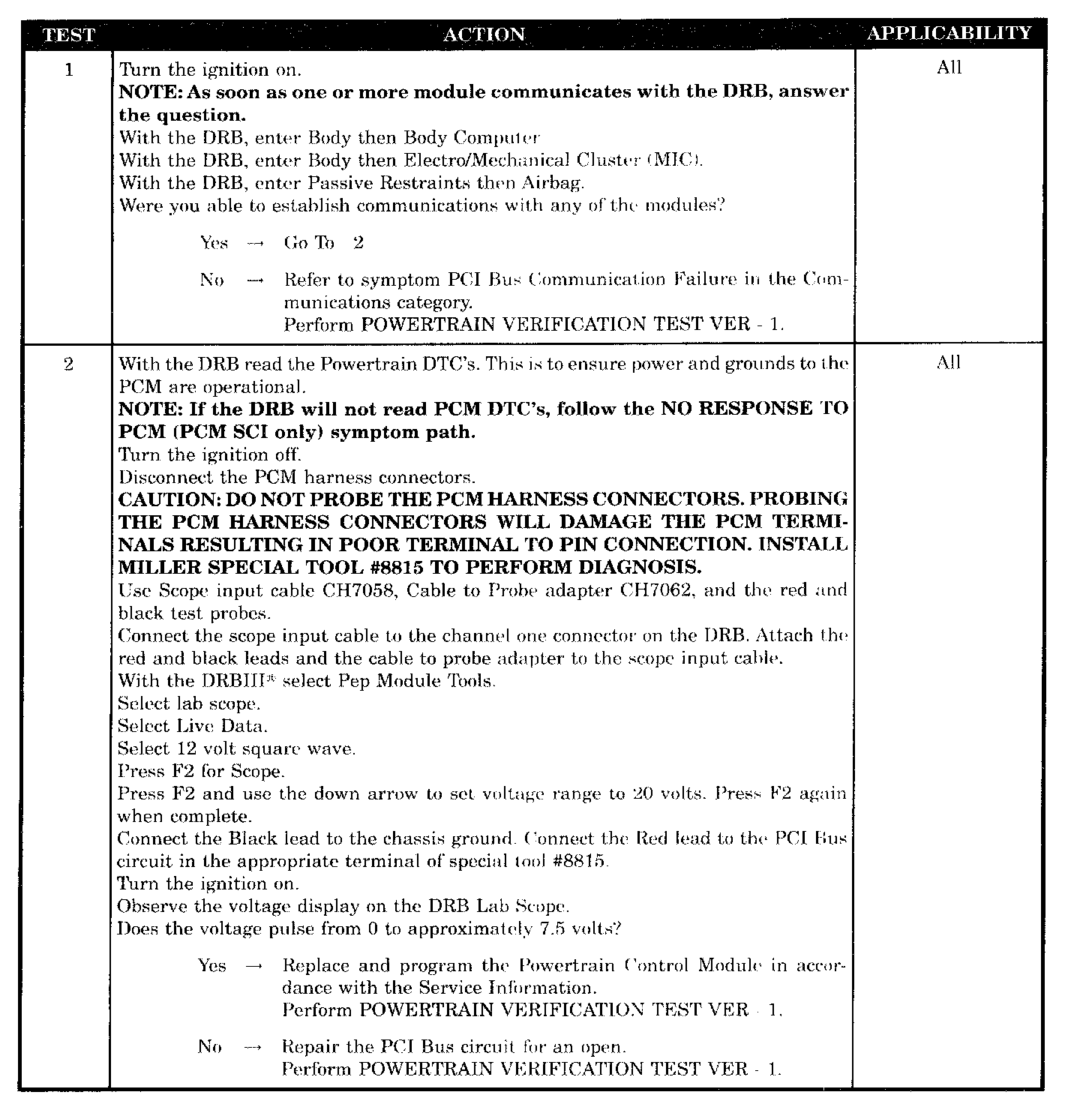

Test 1 - 2:
SYMPTOM
NO RESPONSE FROM
PCM
(
PCI BUS
)
POSSIBLE CAUSES
-
PCM
PCI
no response
-
Powertrain control module
-
PCI BUS
circuit open
