Power Trunk / Liftgate Lock Actuator Position Sensor: Diagrams

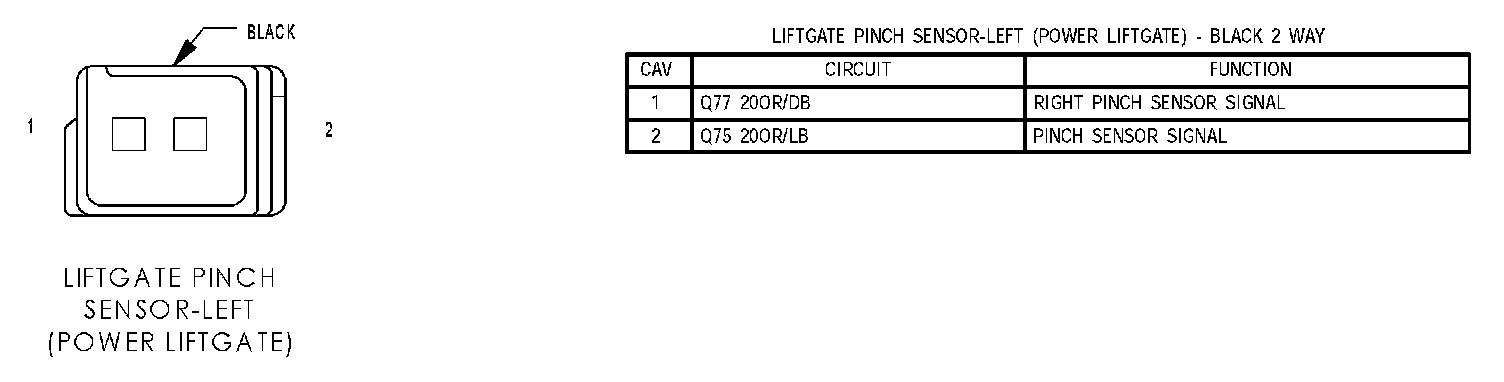

Liftgate Pinch Sensor Left (Power Liftgate):

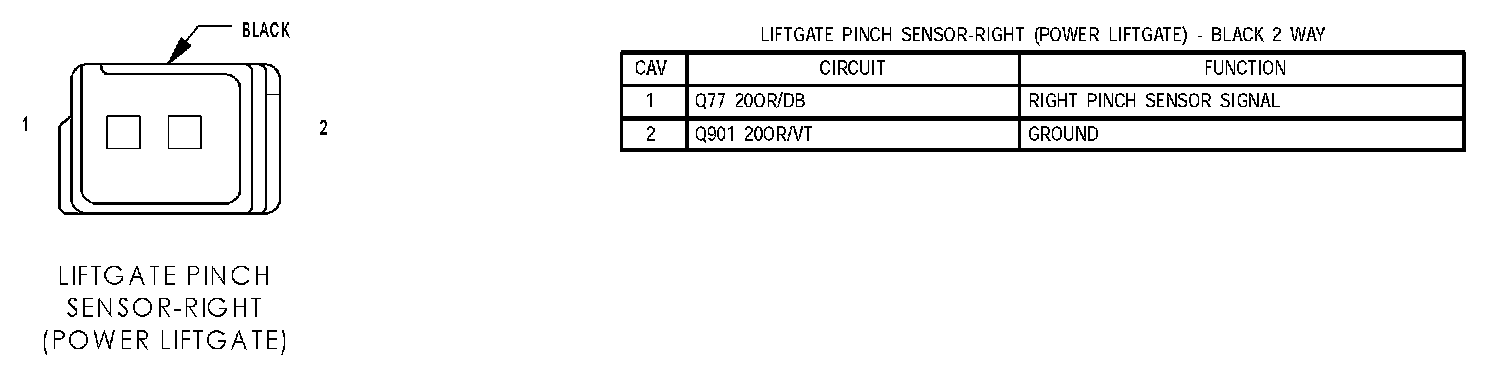

Liftgate Pinch Sensor Right (Power Liftgate):
