General Specifications

General Specifications:

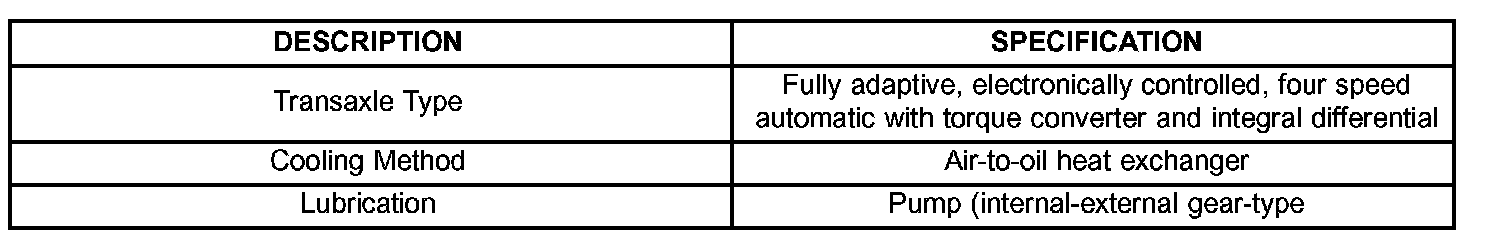

GENERAL SPECIFICATIONS


Gear Ratios:

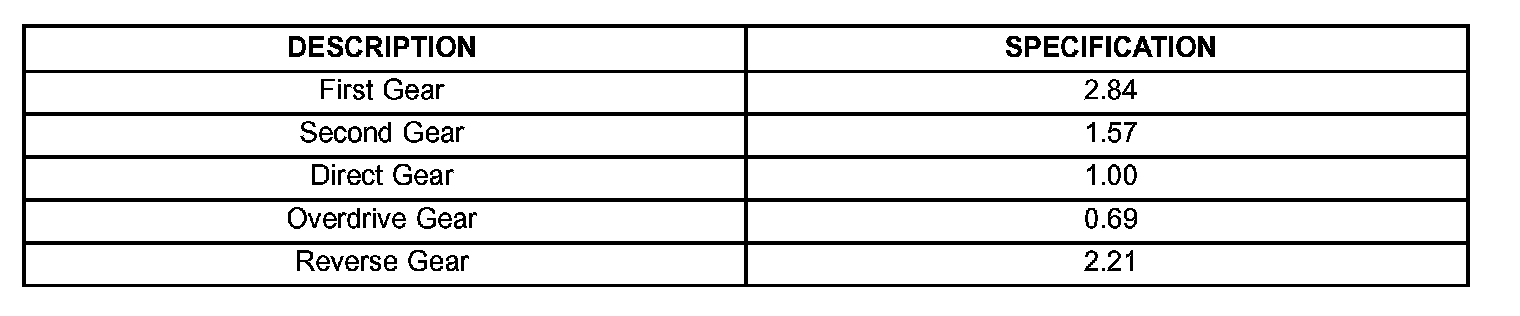

GEAR RATIOS


BEARING SETTINGS (END PLAY & TURNING TORQUE):

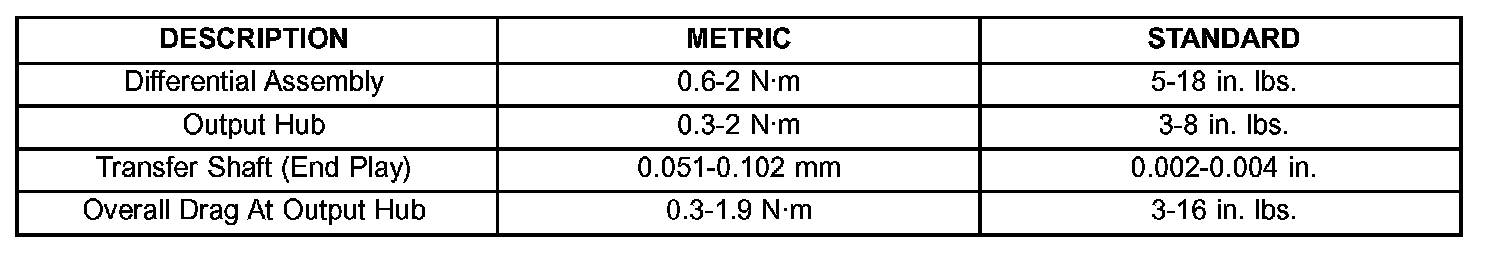

BEARING SETTINGS (END PLAY & TURNING TORQUE)


CLUTCH CLEARANCES:

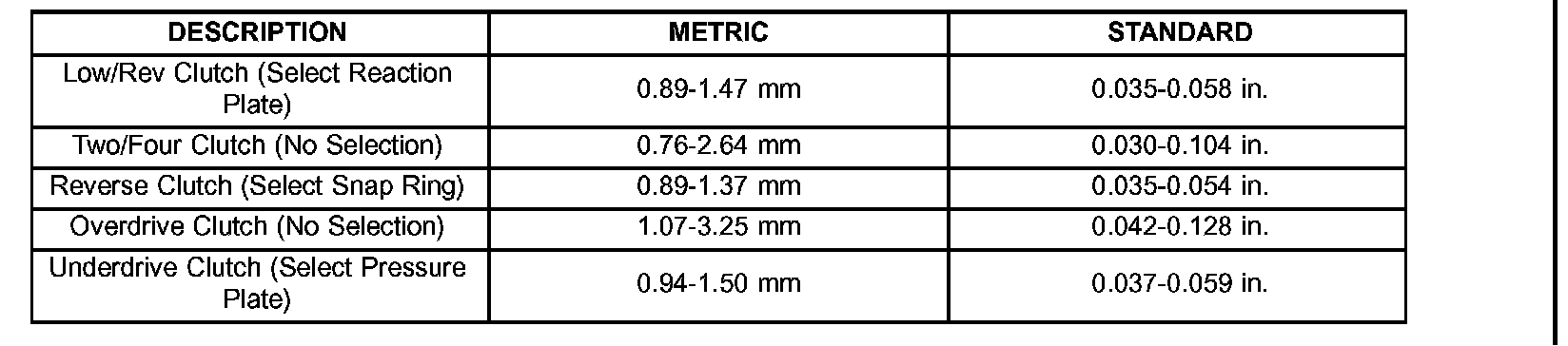

CLUTCH CLEARANCES


OIL PUMP CLEARANCES:

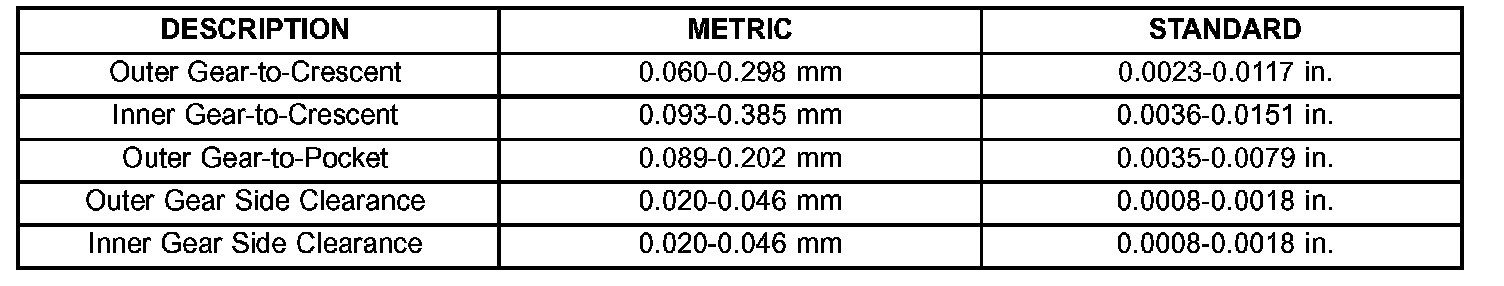

OIL PUMP CLEARANCES


INPUT SHAFT:

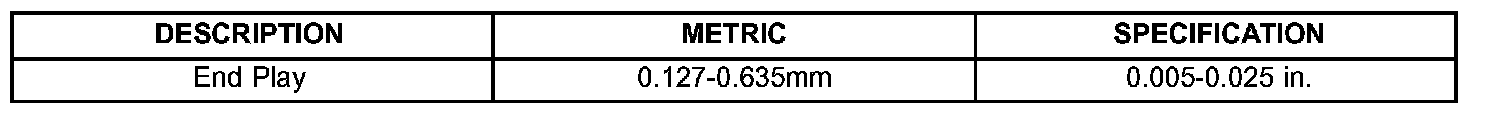

INPUT SHAFT
