Engine Torque Specifications

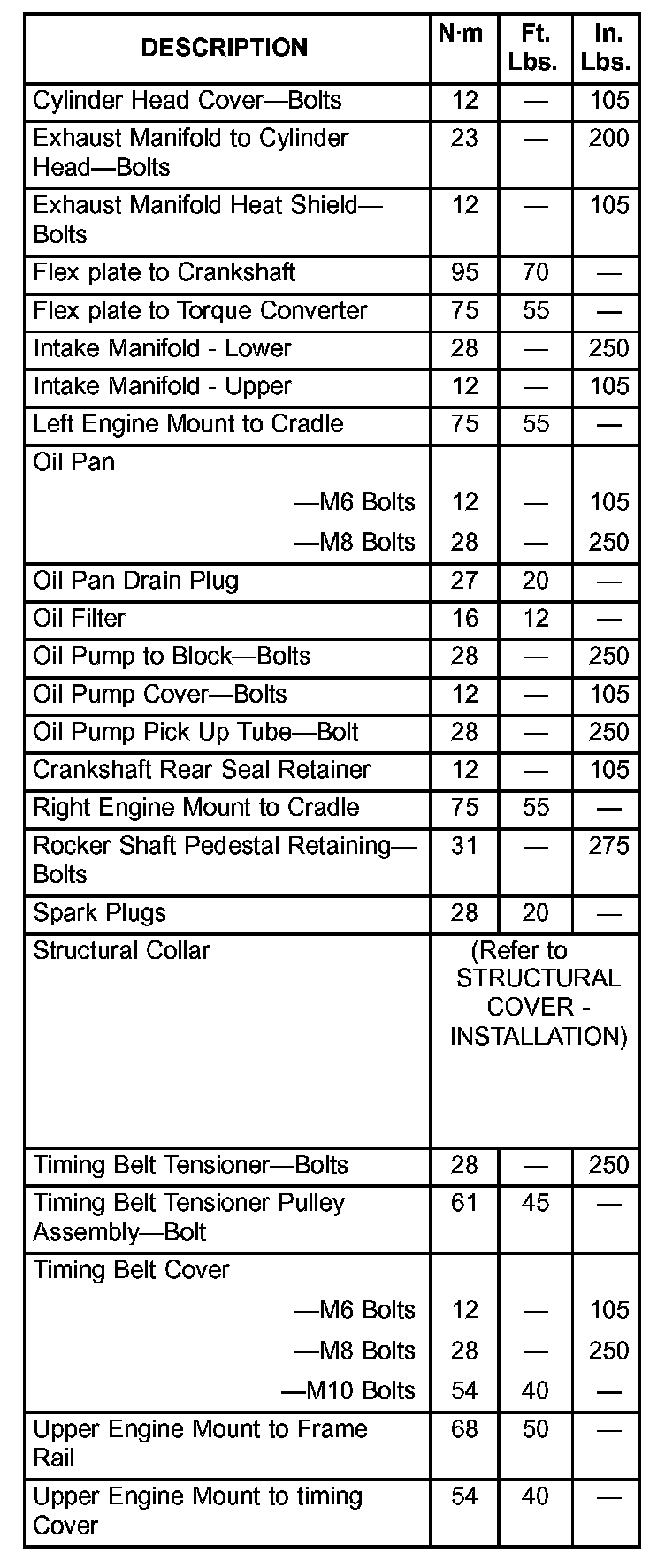

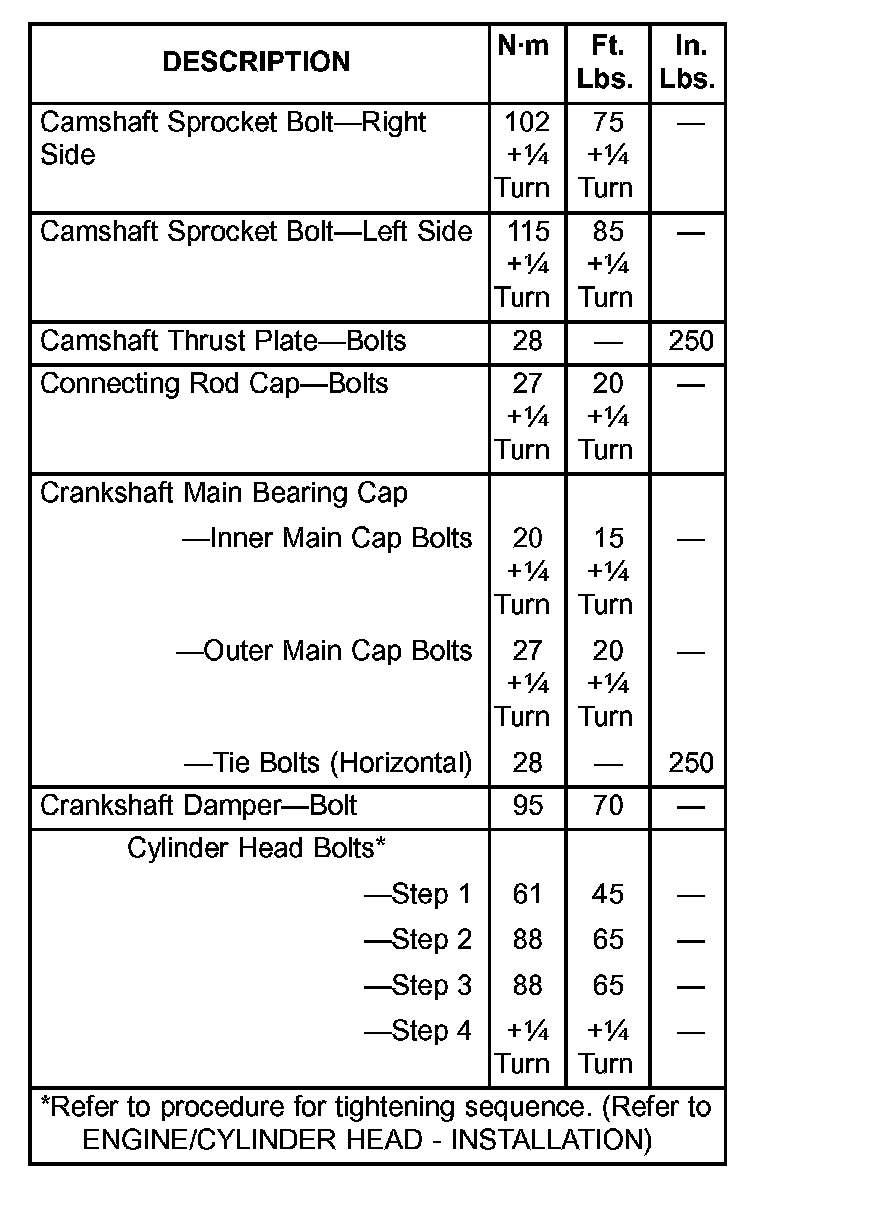

Torque Specifications










Water Pump 12 Nm (105 inch lbs.)

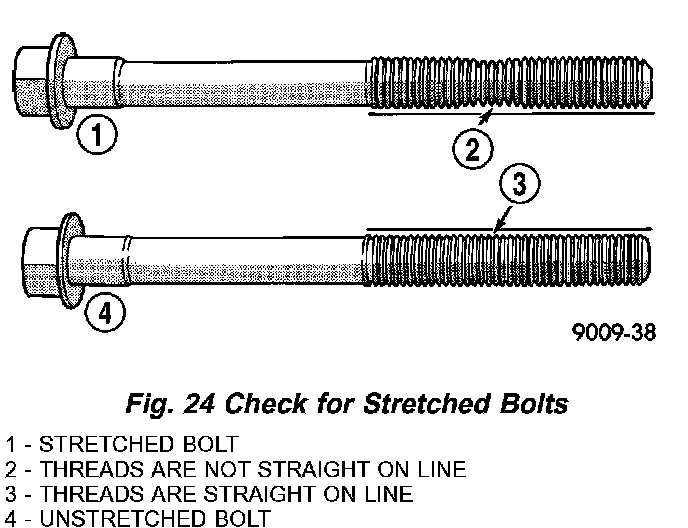

Head Bolt Re-usability
