Compass Failure

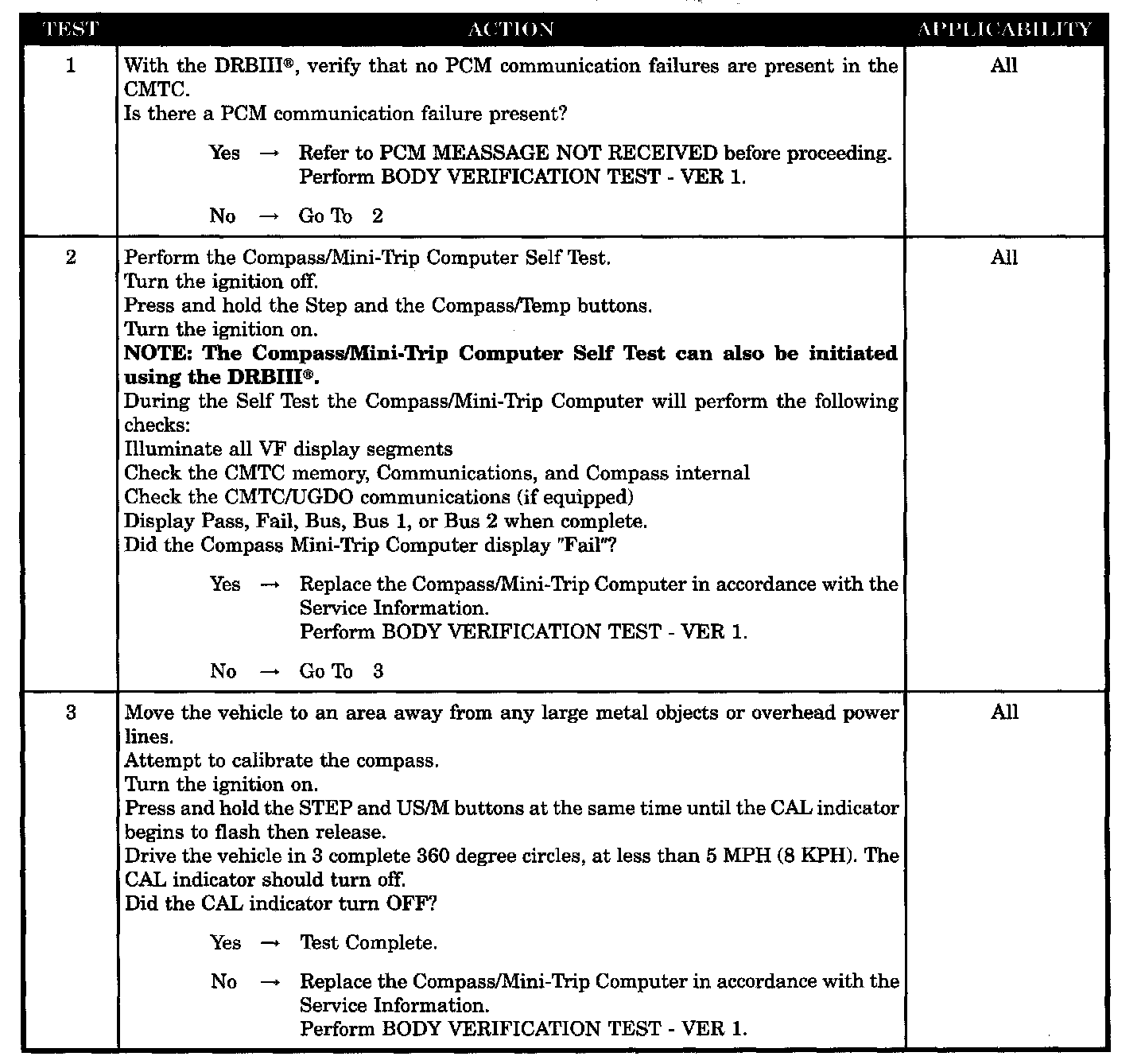

Test 1 - 3:






SYMPTOM
COMPASS FAILURE

POSSIBLE CAUSES
- PCM message not received
- Compass/Mini-trip computer
