Power Window Motor: Diagrams

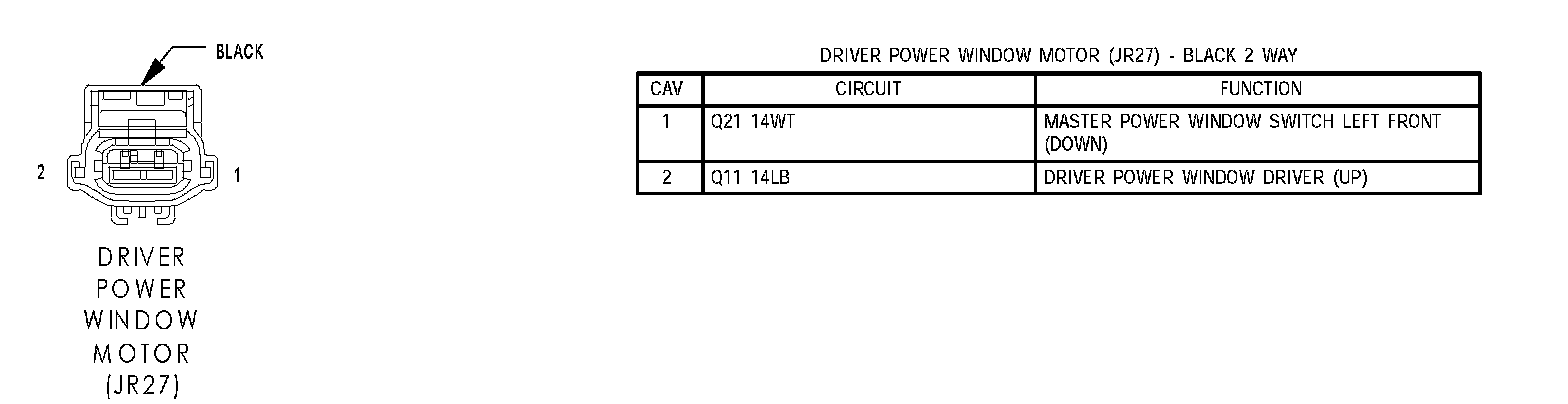

Driver Power Window Motor(JR27):

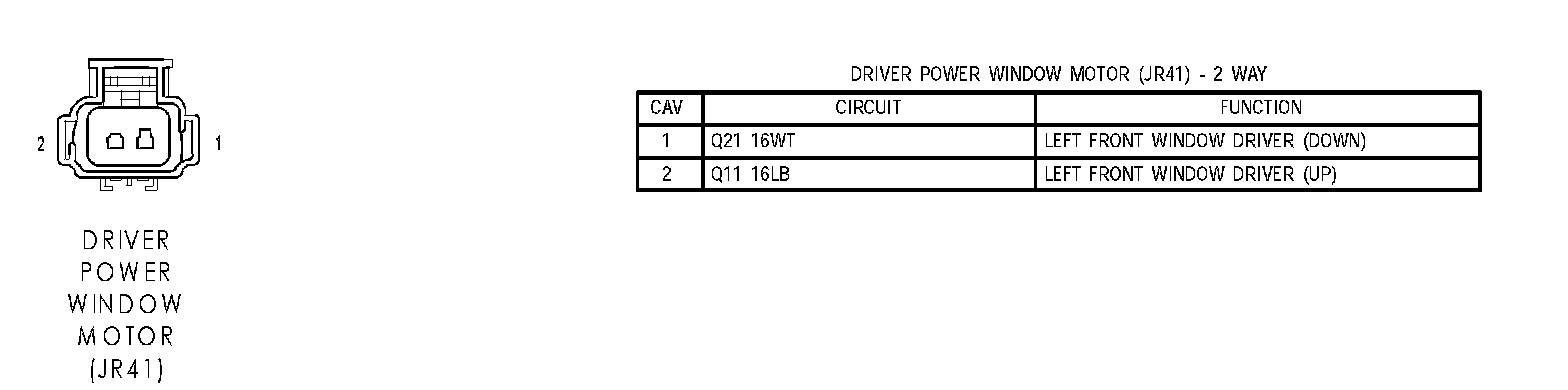

Driver Power Window Motor(JR41):

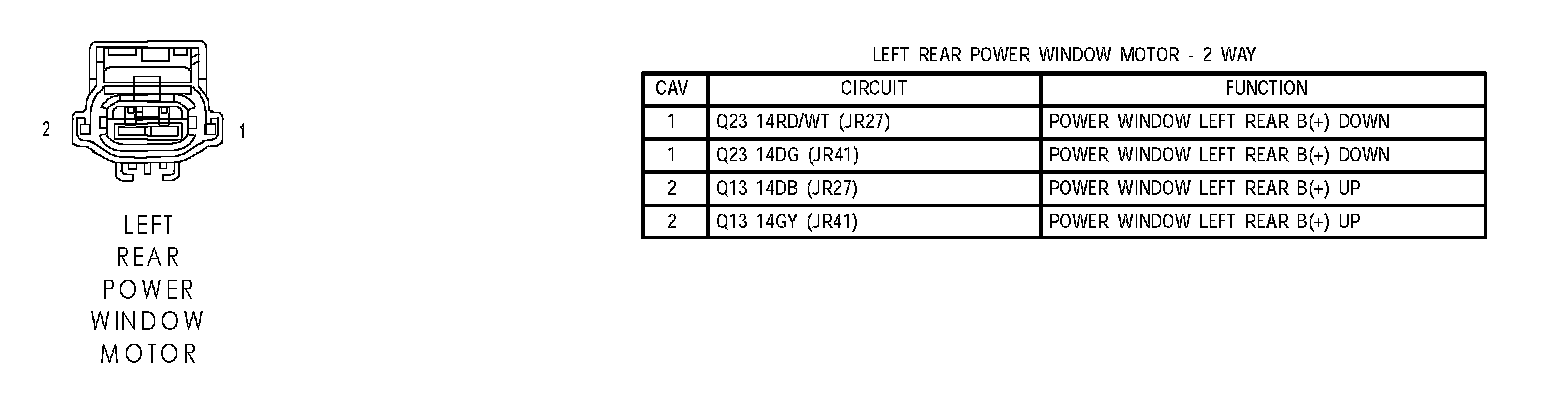

Left Rear Power Window Motor:






Passenger Power Window Motor(JR27):






Passenger Power Window Motor(JR41):






Right Rear Power Window Motor:
