Engine Control Module

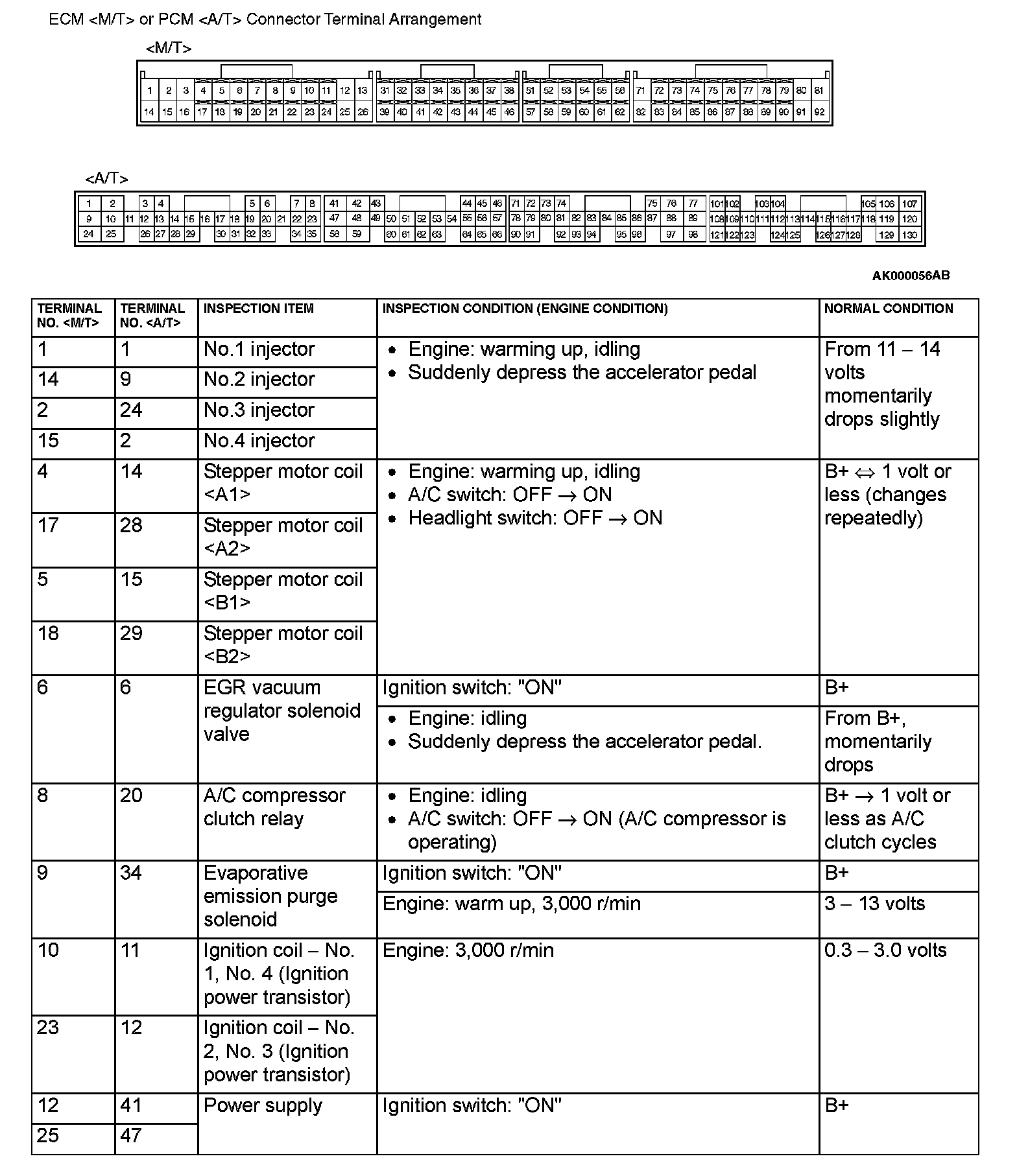

Terminal Voltage Check Chart Part 1:




Terminal Voltage Check Chart Part 2:




Terminal Voltage Check Chart Part 3:




Terminal Voltage Check Chart Part 4:






TERMINAL VOLTAGE CHECK CHART
