Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2004
>>
Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Camshaft, Engine
Camshaft, Engine

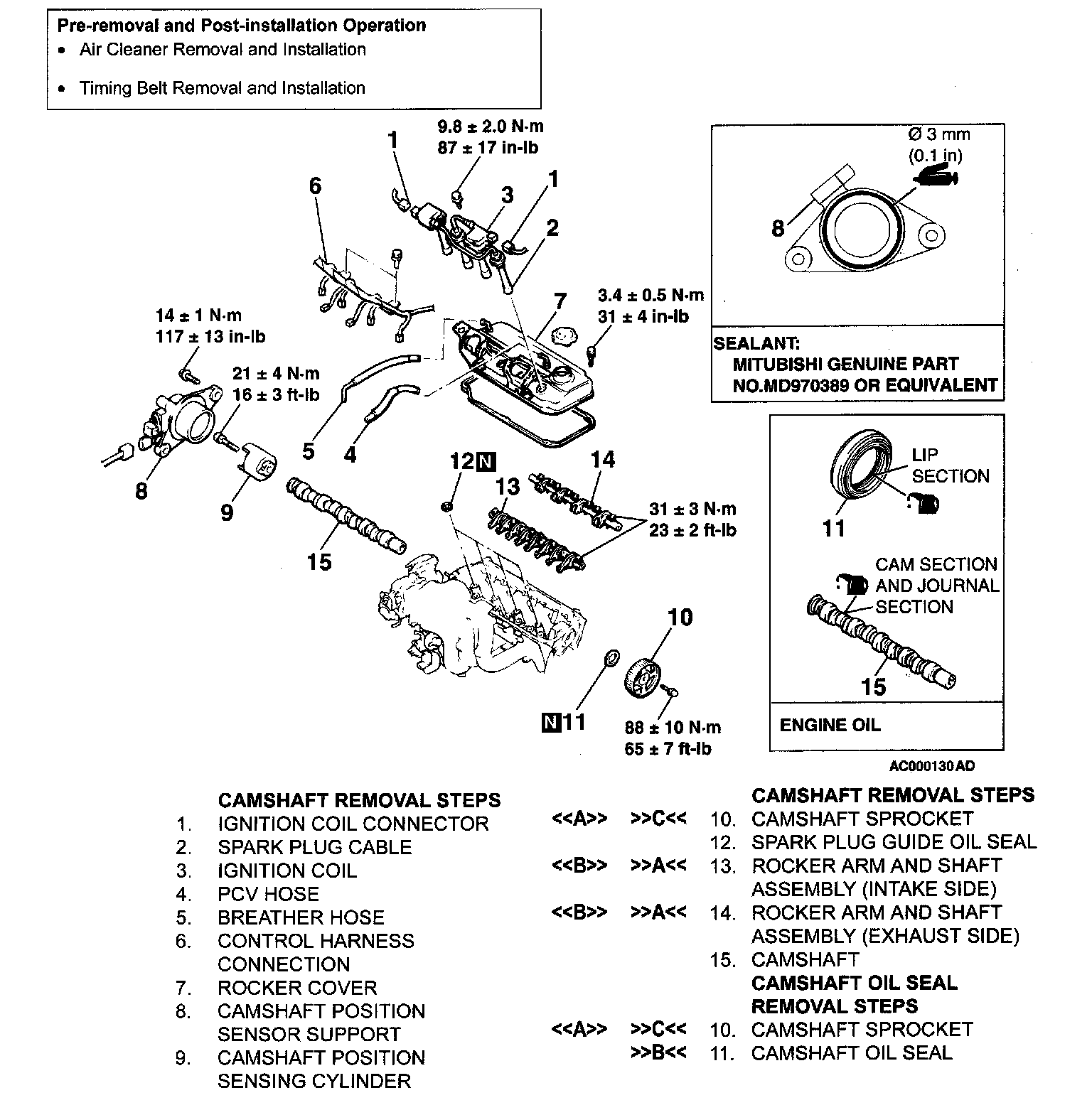

CAMSHAFT
AND
CAMSHAFT OIL SEAL
REMOVAL AND INSTALLATION
