Home >> Chrysler >> 2004 >> Sebring Coupe L4-2.4L VIN G >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Testing and Inspection

Condenser Fan Motor Relay: Testing and Inspection

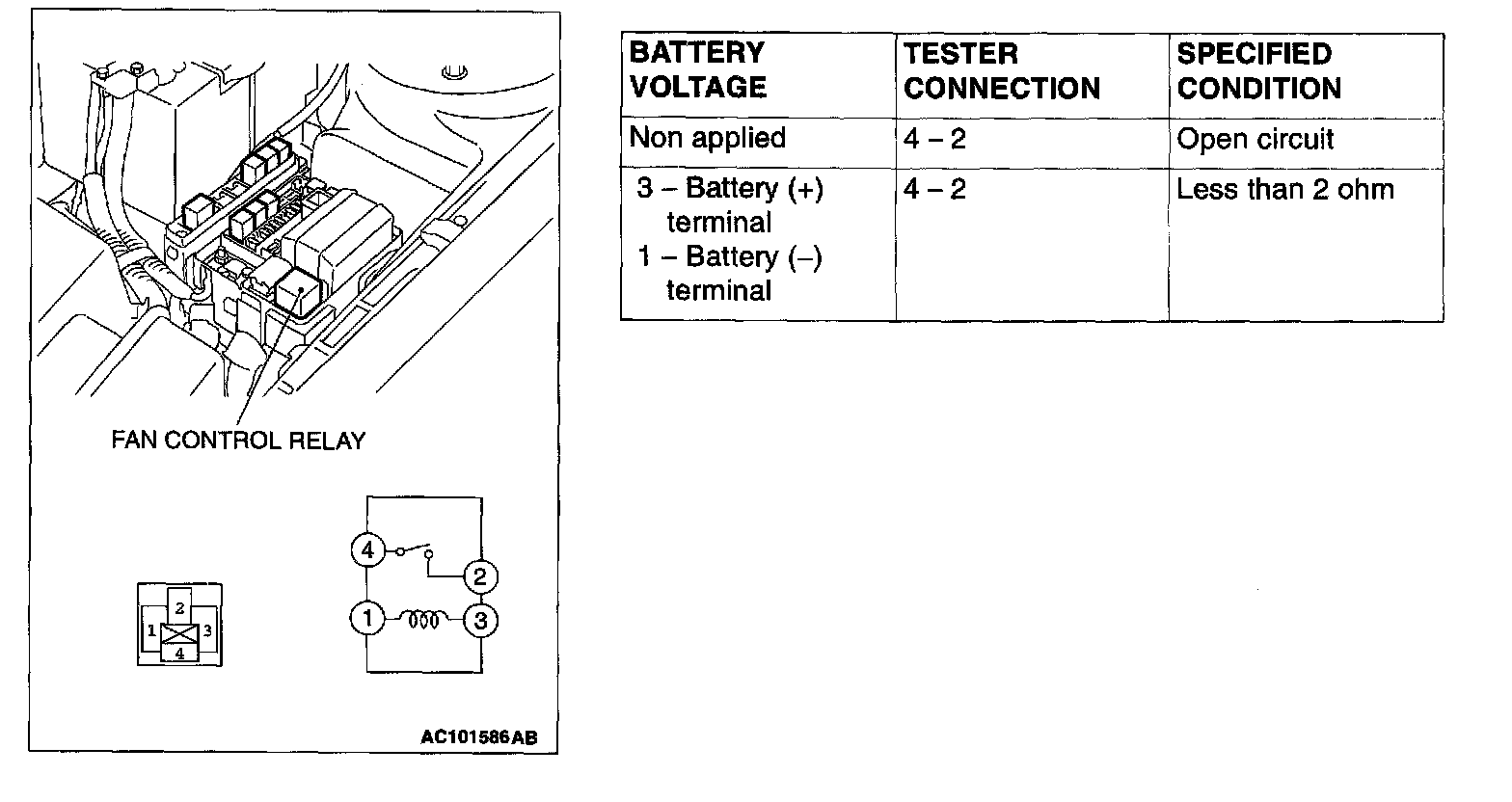

Fan Control Relay Continuity Check:
