Coolant Line/Hose
Coolant Line/Hose

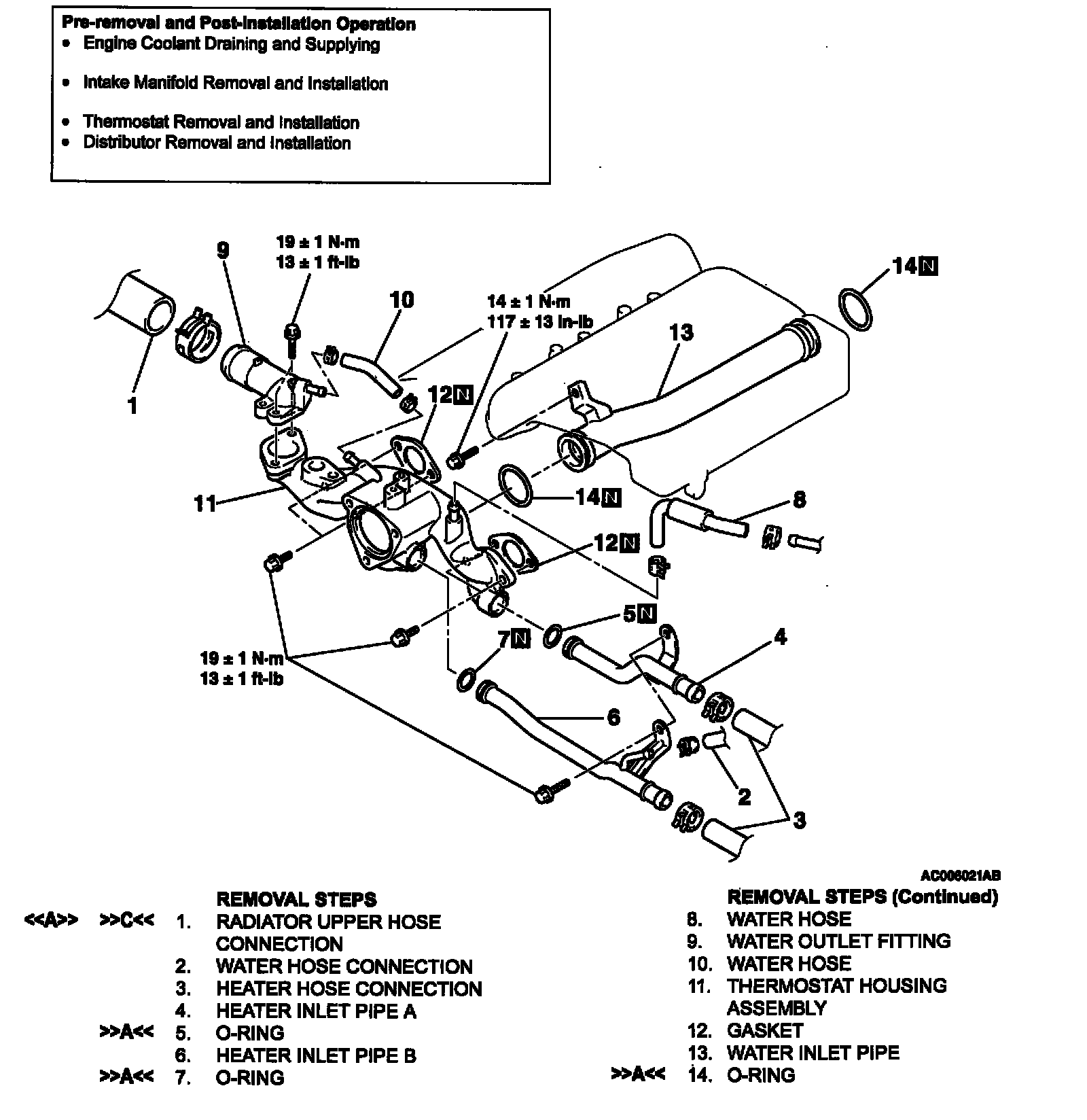

WATER HOSE AND WATER PIPE REMOVAL AND INSTALLATION
<3.0L ENGINE>
