Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2004
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Component Locations
Component Locations

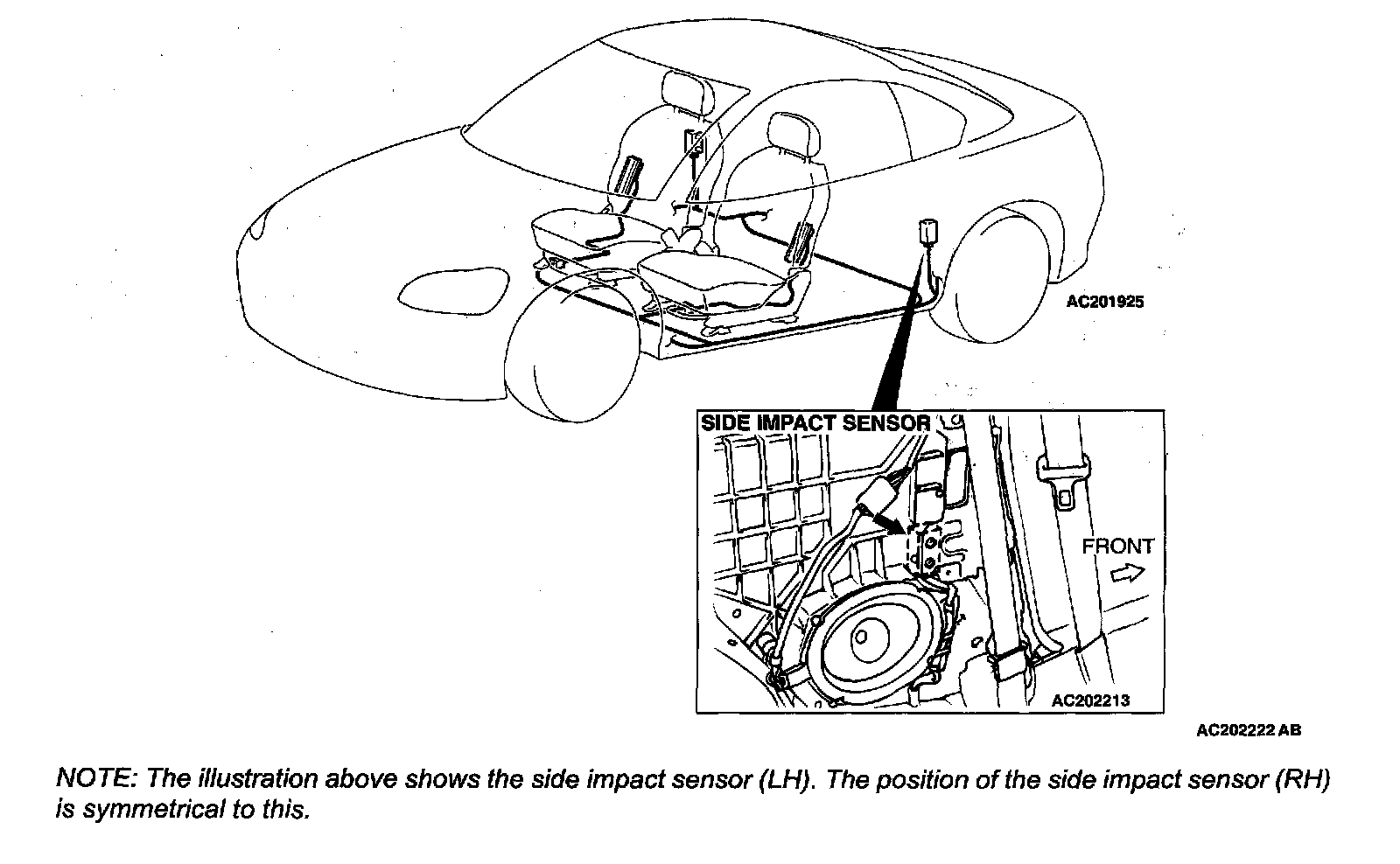

Construction Diagram:
Component Location:
