Home
>>
Chrysler
>>
2004
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Linkage
>>
Service and Repair
>>
Disassembly and Assembly
Disassembly and Assembly

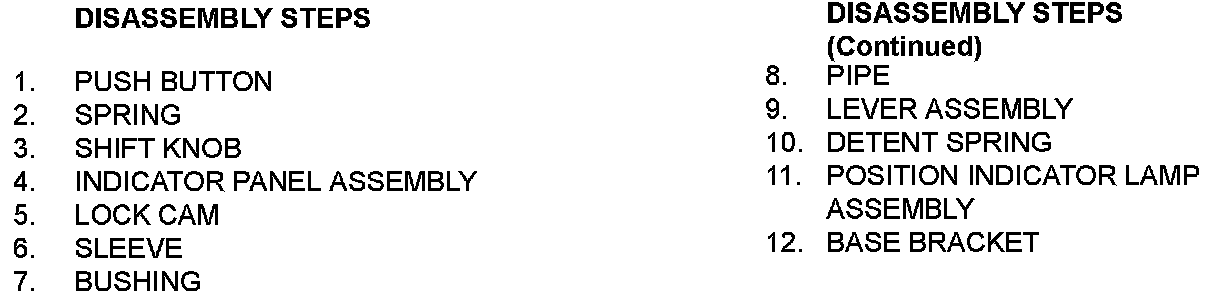

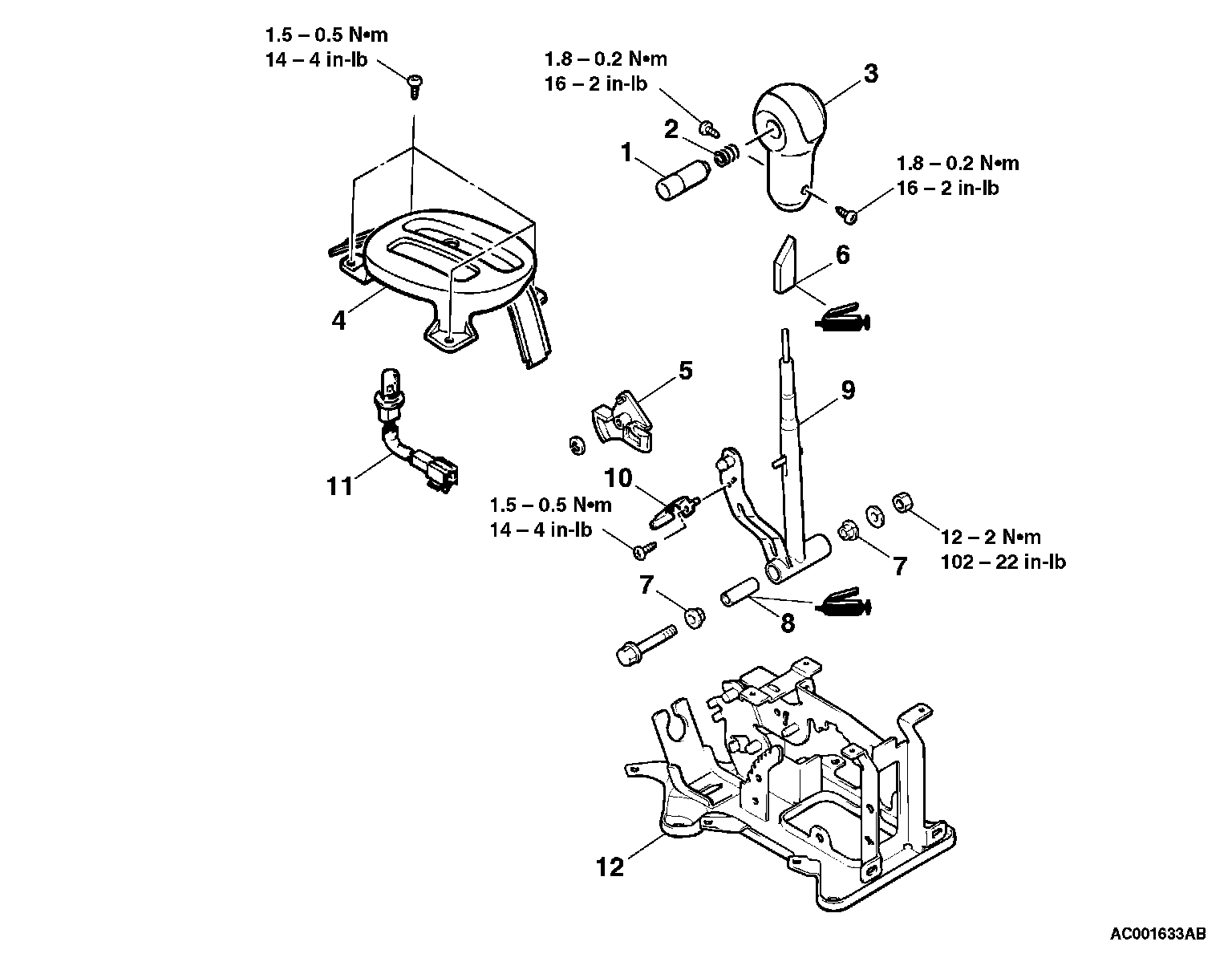

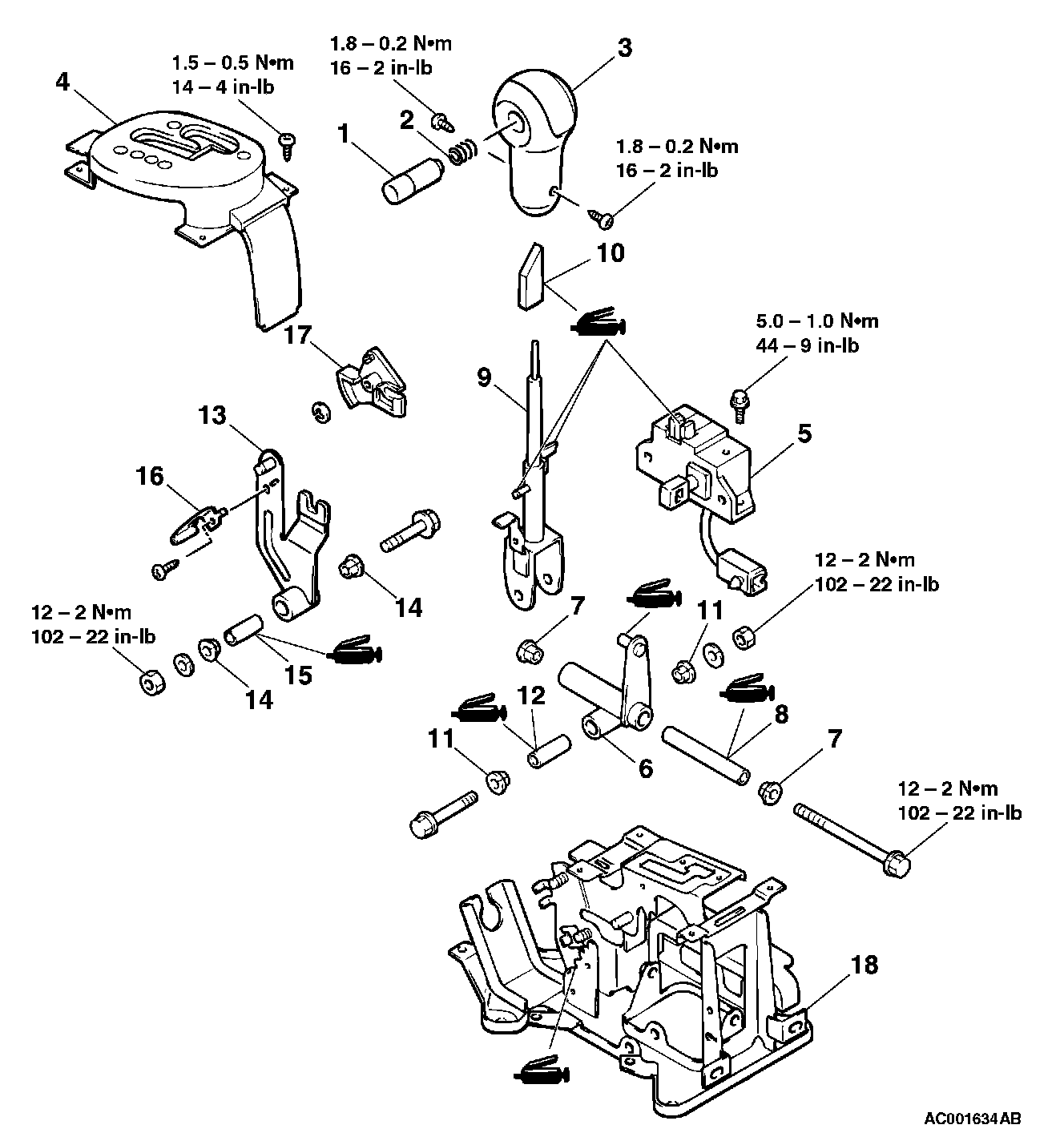

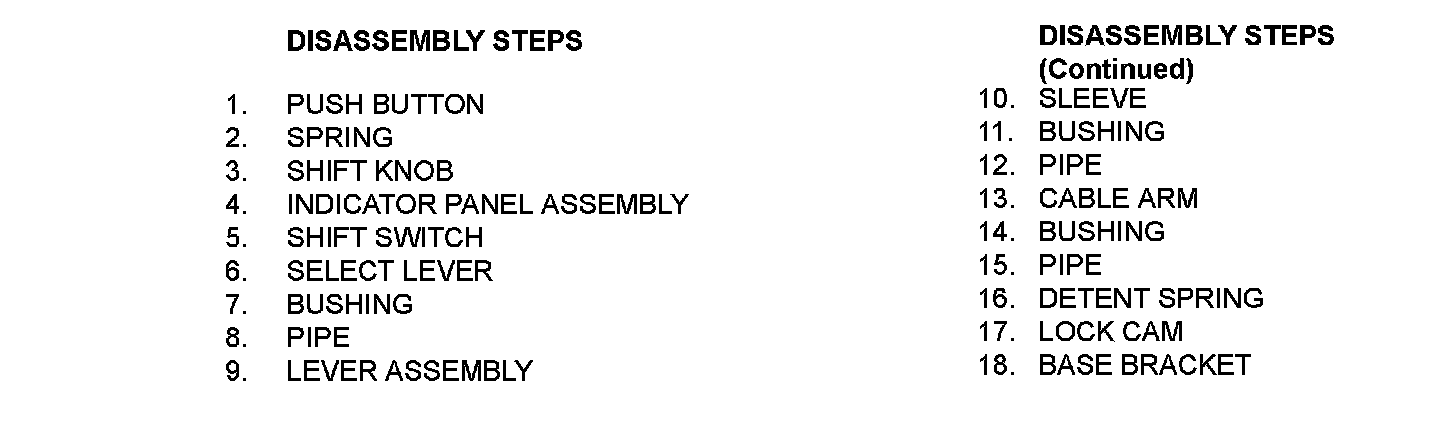

DISASSEMBLY AND ASSEMBLY
INSPECTION

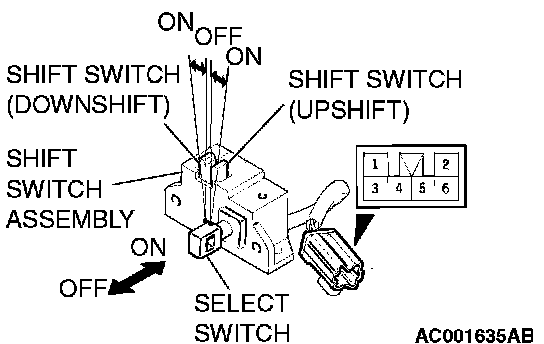

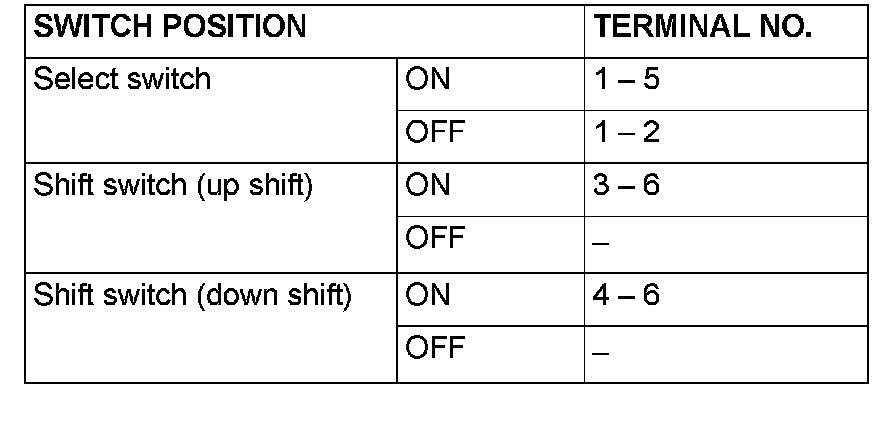

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
